Revolution Sensor Replacement

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical connector.
Remove revolution sensor from A/T.
Reinstall any part removed.
- Always use new sealing parts.

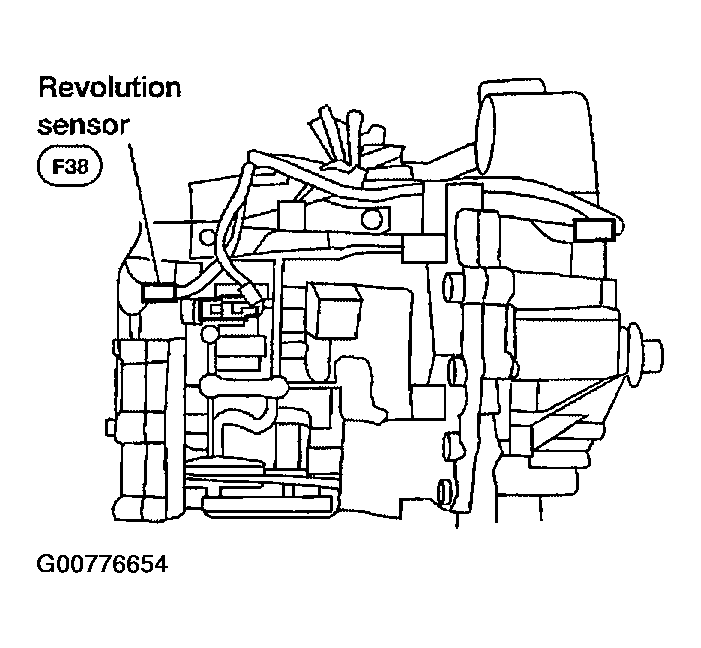

Fig 1: Revolution Sensor Replacement

Courtesy of NISSAN MOTOR CO., U.S.A.
