Section 430 (Automatic Transaxle - Re4F04B): Overhaul: Components

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

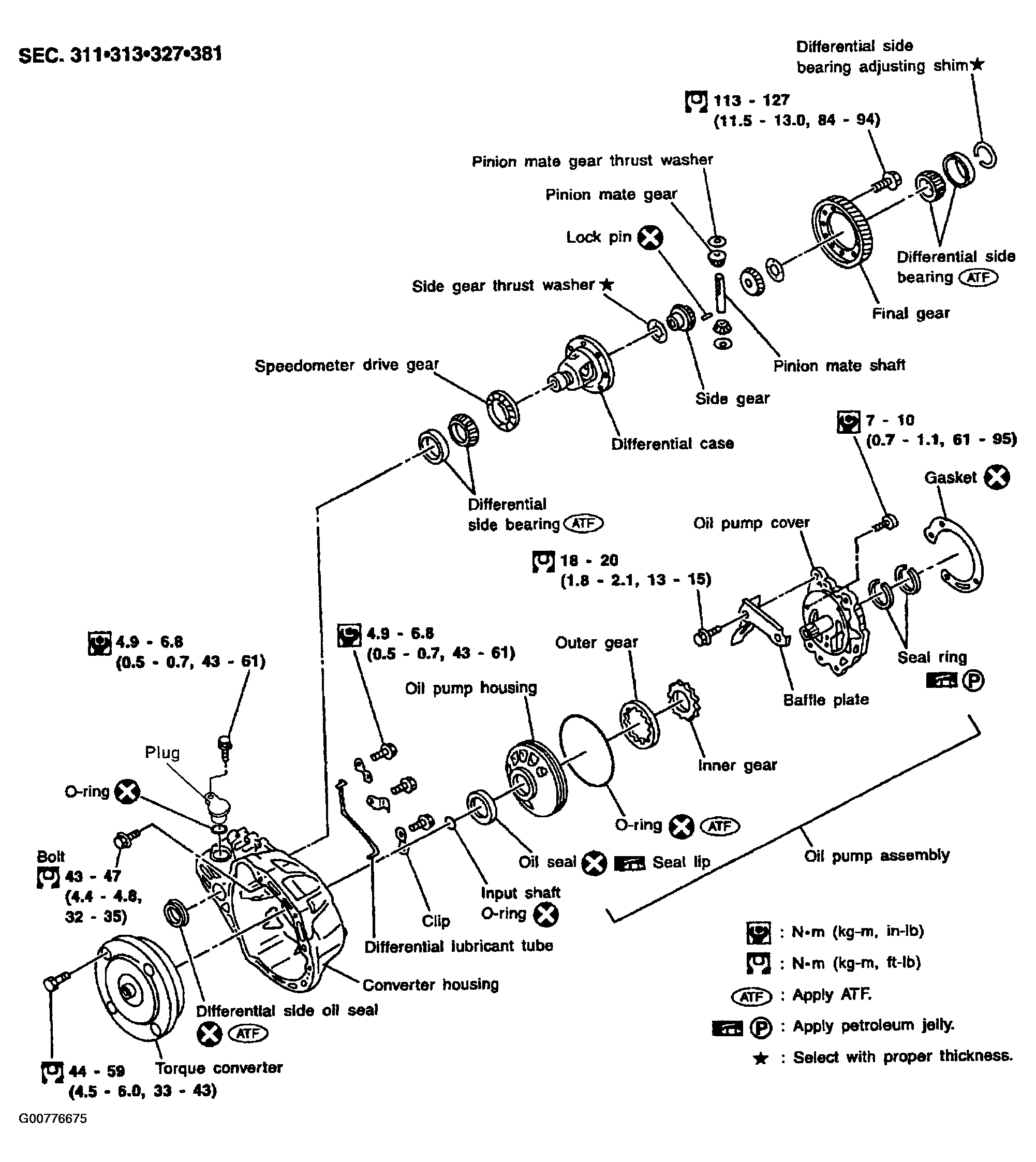

Fig 1: Exploded View Of A/T Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

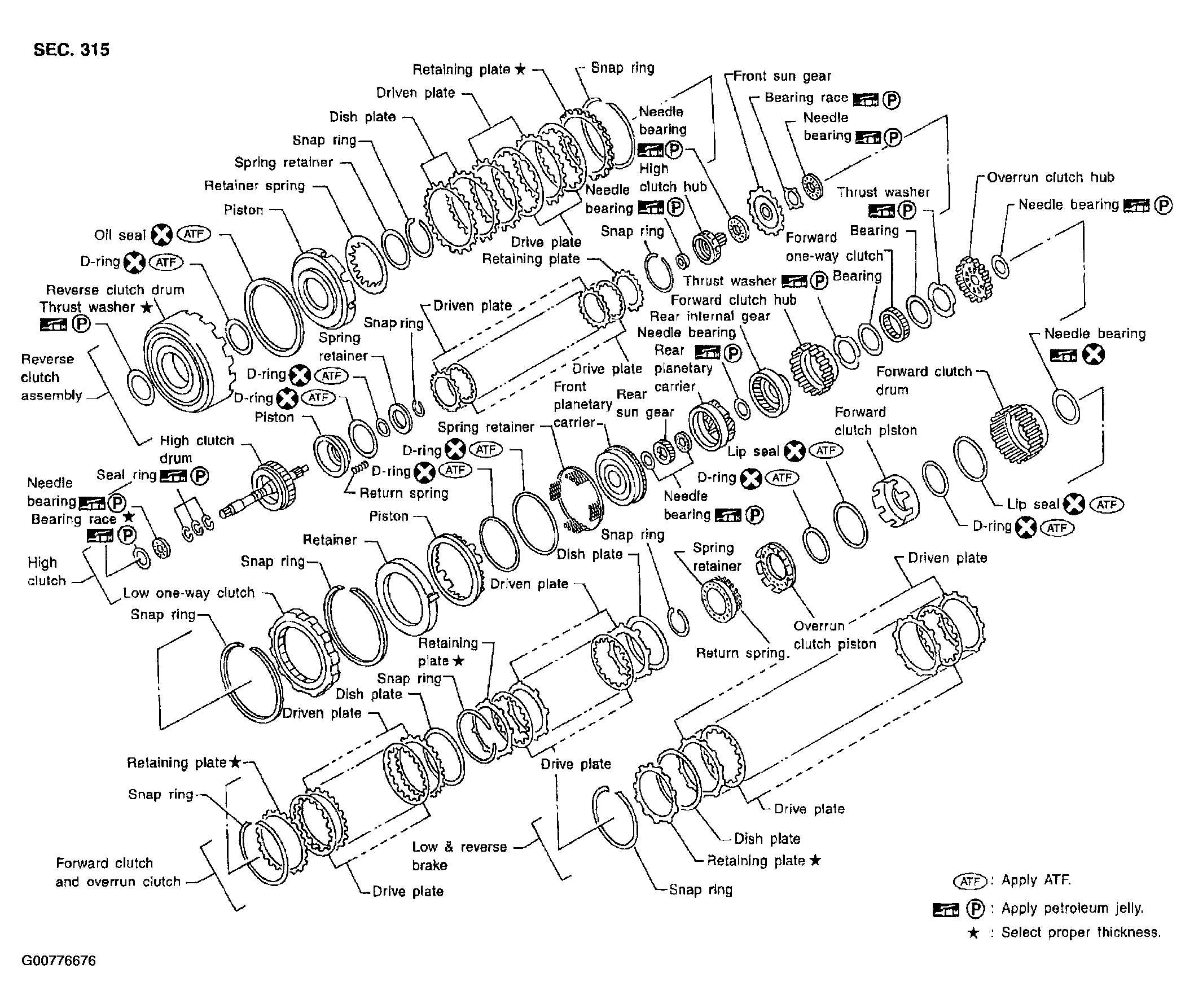

Fig 2: Exploded View Of A/T Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

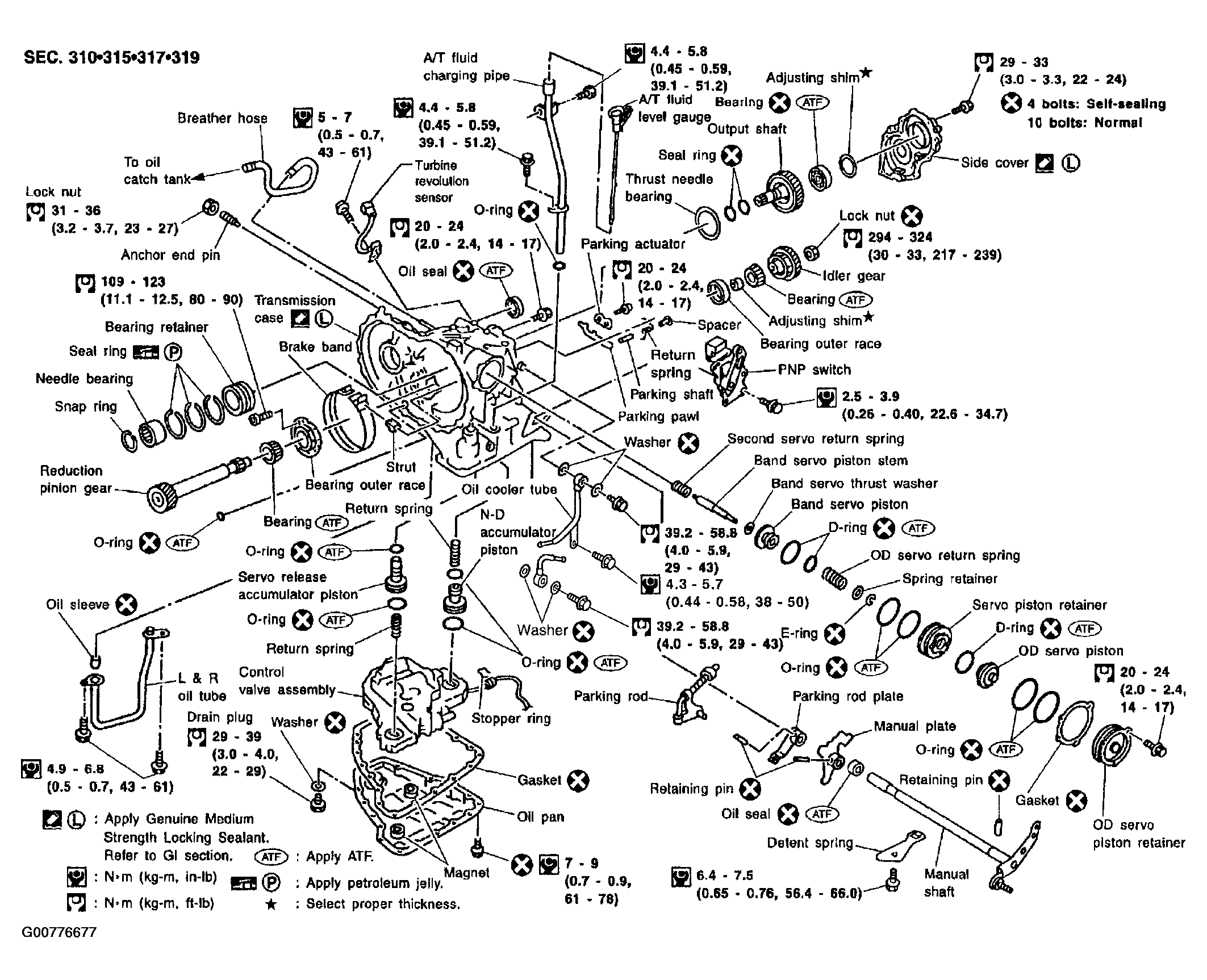

Fig 3: Exploded View Of A/T Components (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
