Band Servo Piston Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install D-rings to servo piston retainer.
    • Apply ATF to D-rings.
    • Pay attention to position of each O-ring.
      Fig 1: Assembly (1 Of 11)
      G00848616Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.
    Fig 2: Assembly (2 Of 11)
    G00848617Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.
    Fig 3: Assembly (3 Of 11)
    G00848618Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
      Fig 4: Assembly (4 Of 11)
      G00848619Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.
    Fig 5: Assembly (5 Of 11)
    G00848620Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to O/D servo piston.
    • Apply ATF to D-ring.
      Fig 6: Assembly (6 Of 11)
      G00848621Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install O-rings to O/D servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
      Fig 7: Assembly (7 Of 11)
      G00848622Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install O/D servo piston to O/D servo piston retainer.
    Fig 8: Assembly (8 Of 11)
    G00848623Courtesy of NISSAN MOTOR CO., U.S.A.

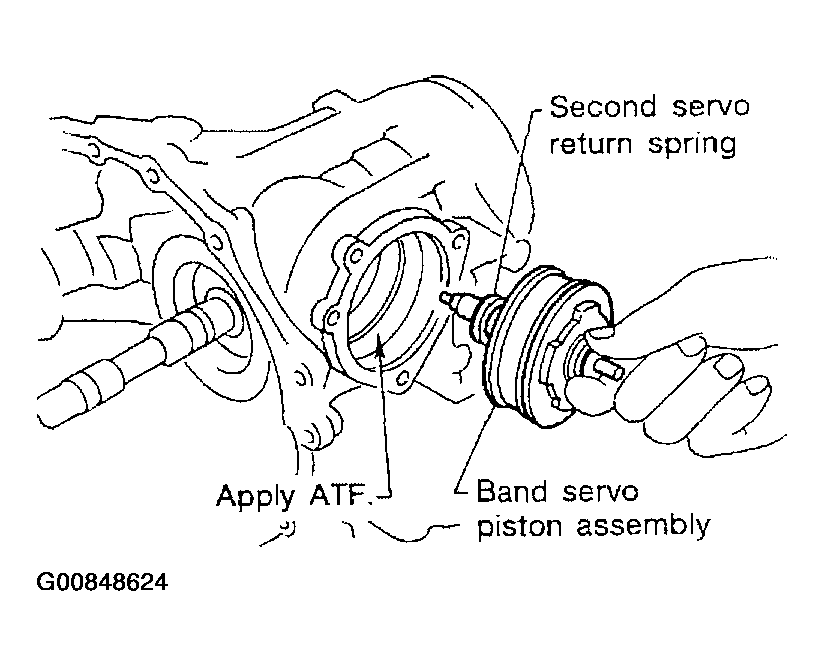

  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.
      Fig 9: Assembly (9 Of 11)
      G00848624Courtesy of NISSAN MOTOR CO., U.S.A.

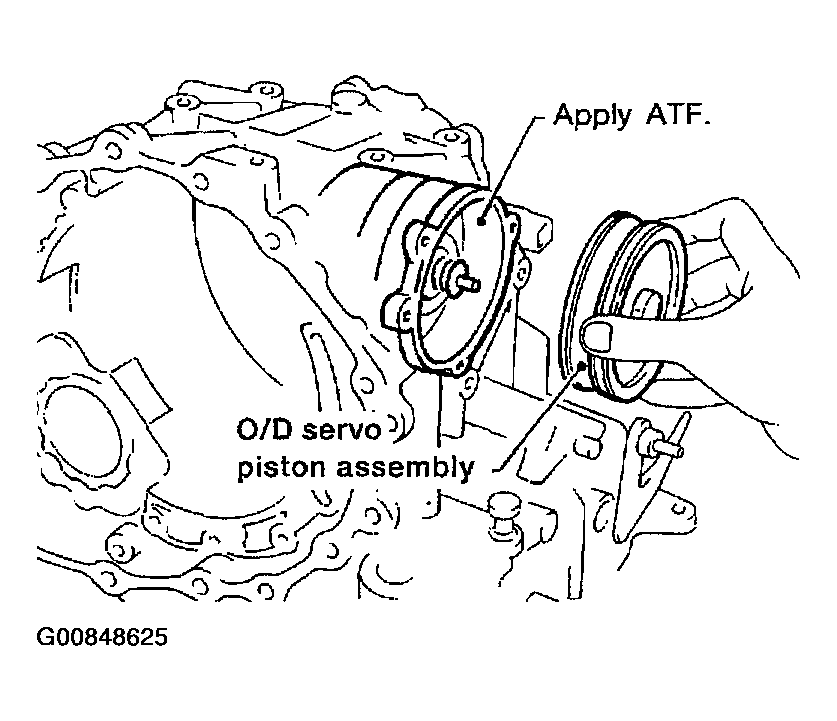

  10. Install O/D servo piston assembly to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.
      Fig 10: Assembly (10 Of 11)
      G00848625Courtesy of NISSAN MOTOR CO., U.S.A.

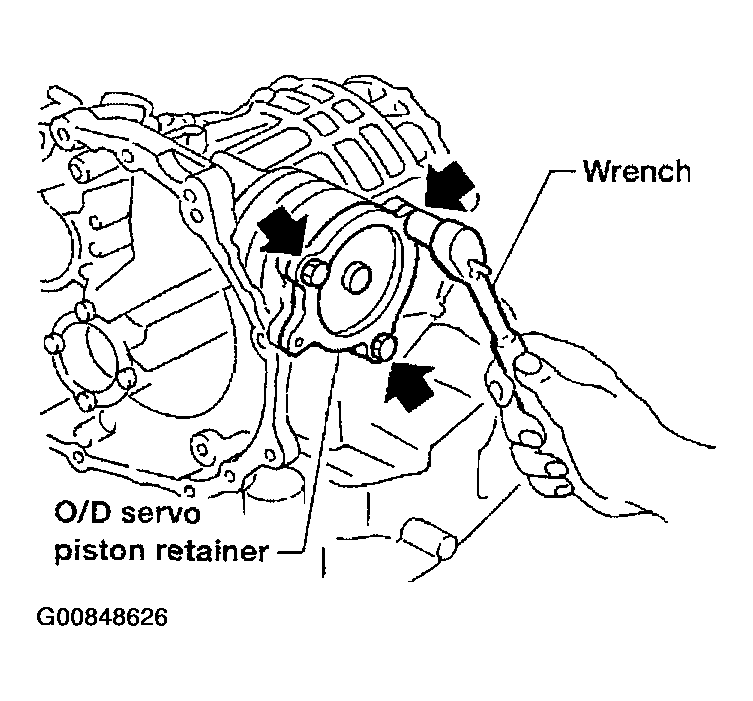

  11. Install O/D servo piston retainer to transmission case. Refer to "COMPONENTS ".
    Fig 11: Assembly (11 Of 11)
    G00848626Courtesy of NISSAN MOTOR CO., U.S.A.
