Fail-Safe Function: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

If any malfunction occurs in a sensor or solenoid, this function controls the A/T to make driving possible.

NOTE: Line pressure is set at the maximum in fail-safe mode. Although gear position differs depending on the type of fail-safe modes, Consult-II indicates "5th".

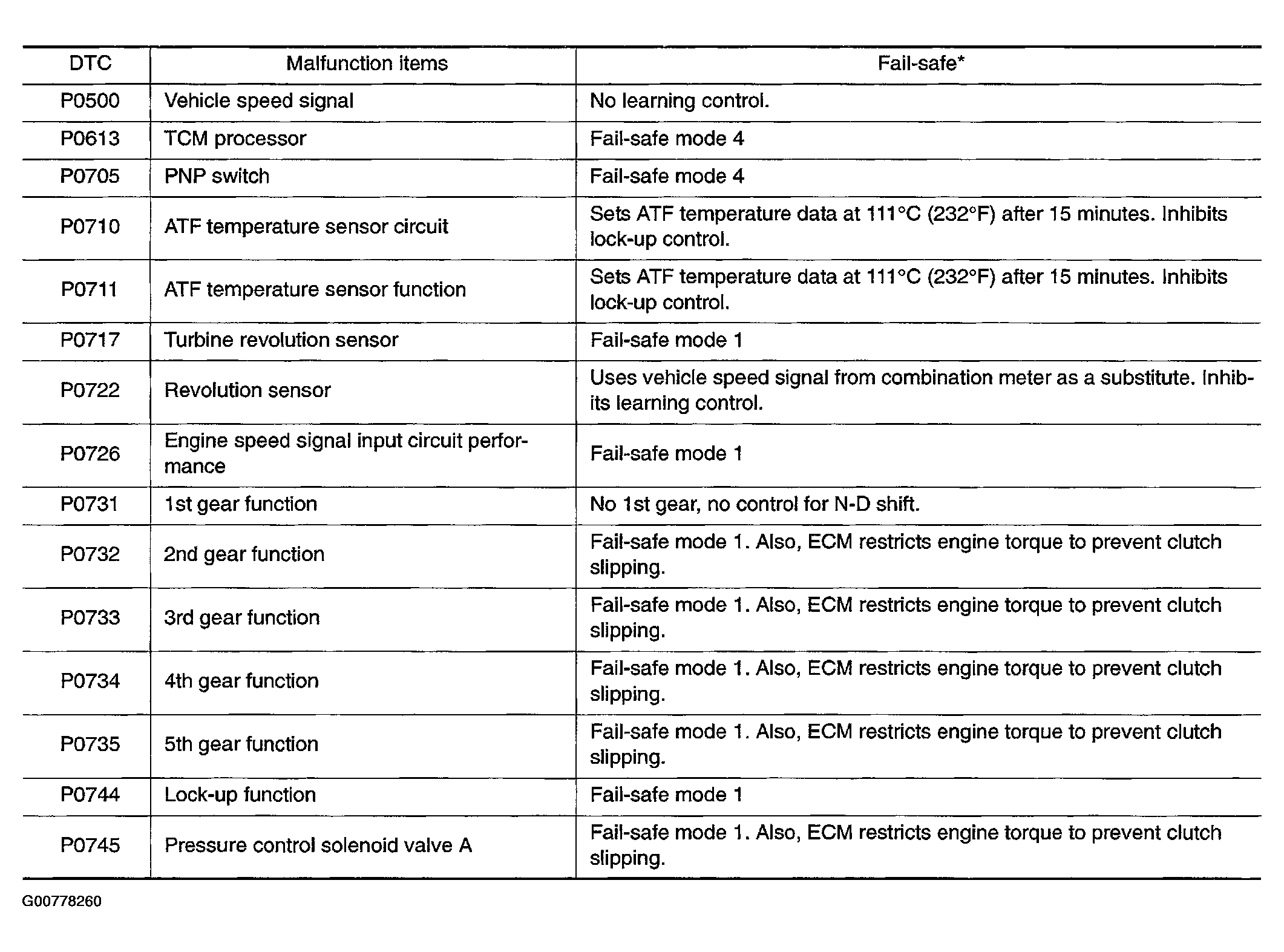

Fig 1: Fail-Safe Function Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

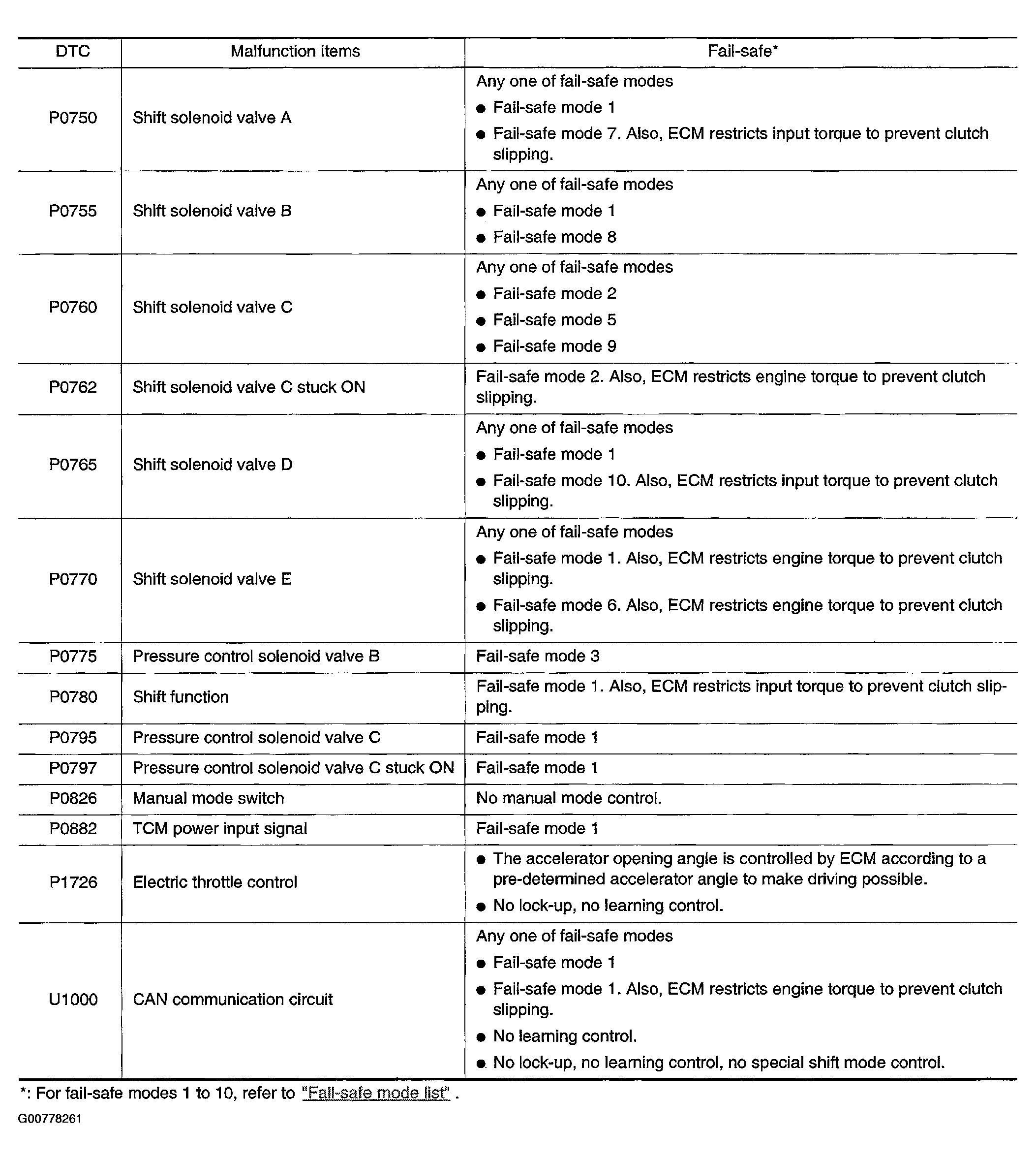

Fig 2: Fail-Safe Function Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
