Operation Procedure

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "DATA MONITOR" on "SELECT MONITOR ITEM " screen.
  2. Touch "ALL SIGNALS", "MAIN SIGNALS" or "SELECT FROM MENU" on the "DATA MONITOR" screen.
    SIGNAL DESCRIPTION

    Signals Selected Description
    ALL SIGNALS All Items Will Be Monitored.
    MAIN SIGNALS Monitor The Predetermined Item.
    SELECT FROM MENU Select Any Item For Monitoring.
  3. Touch "START".
  4. Touch the required monitoring item on "SELECT ITEM MENU". In "ALL SIGNALS", all items are monitored. In "MAIN SIGNALS", predetermined items are monitored.
  5. Touch "RECORD" while monitoring to record the status of the item being monitored. To stop recording, touch "STOP".

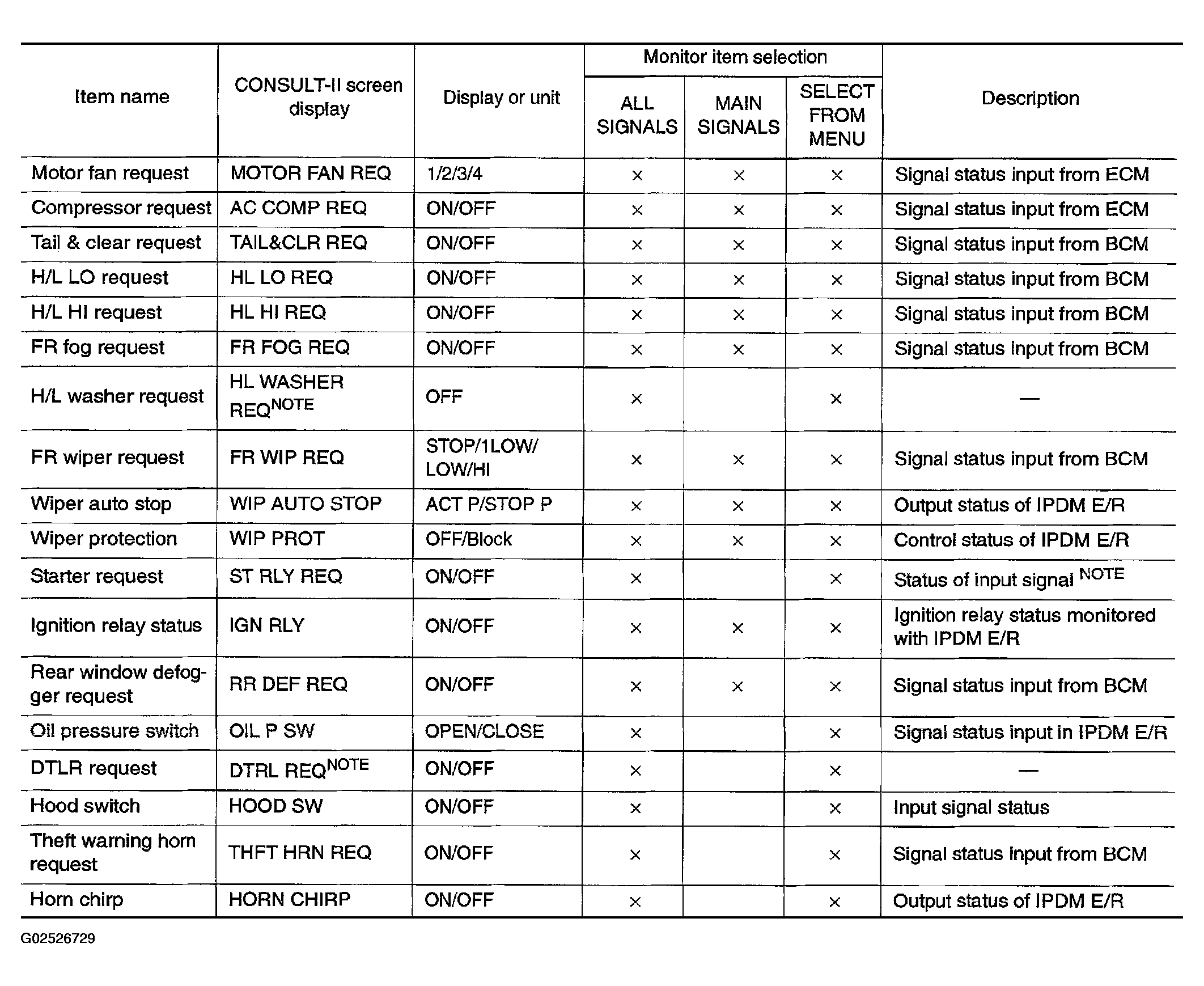

Fig 1: All Items, Main Items, Select Item Menu
G02526729Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be correct.
  • This item is displayed, but cannot monitor it.
