Terminal And Reference Value For BCM/With Front Left And Right Power Window Anti-Pinch System
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

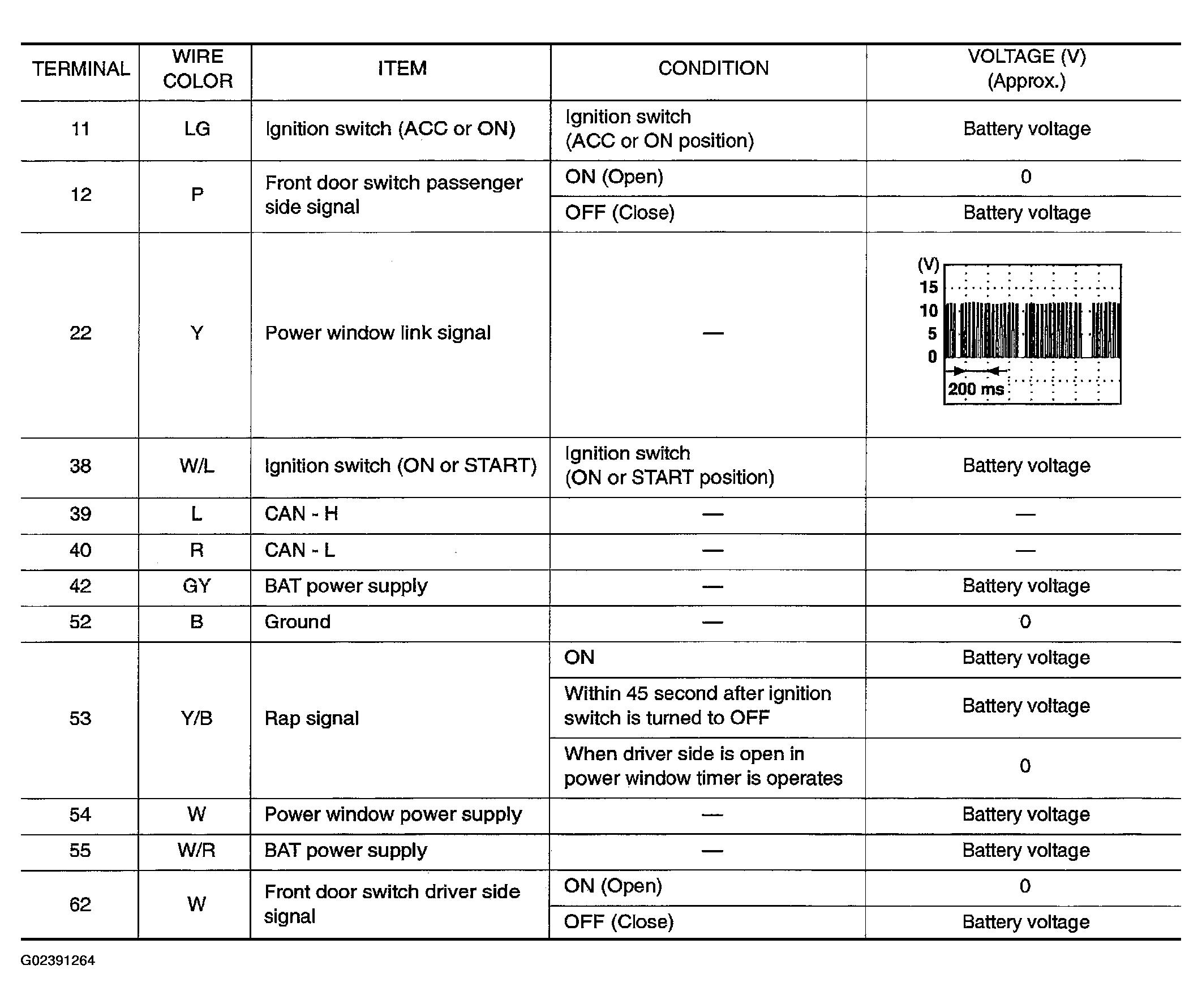

Fig 1: BCM Terminal And Reference Value Table - With Front Left And Right Power Window Anti-Pinch System
