Terminals And Reference Value For Combination Meter
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

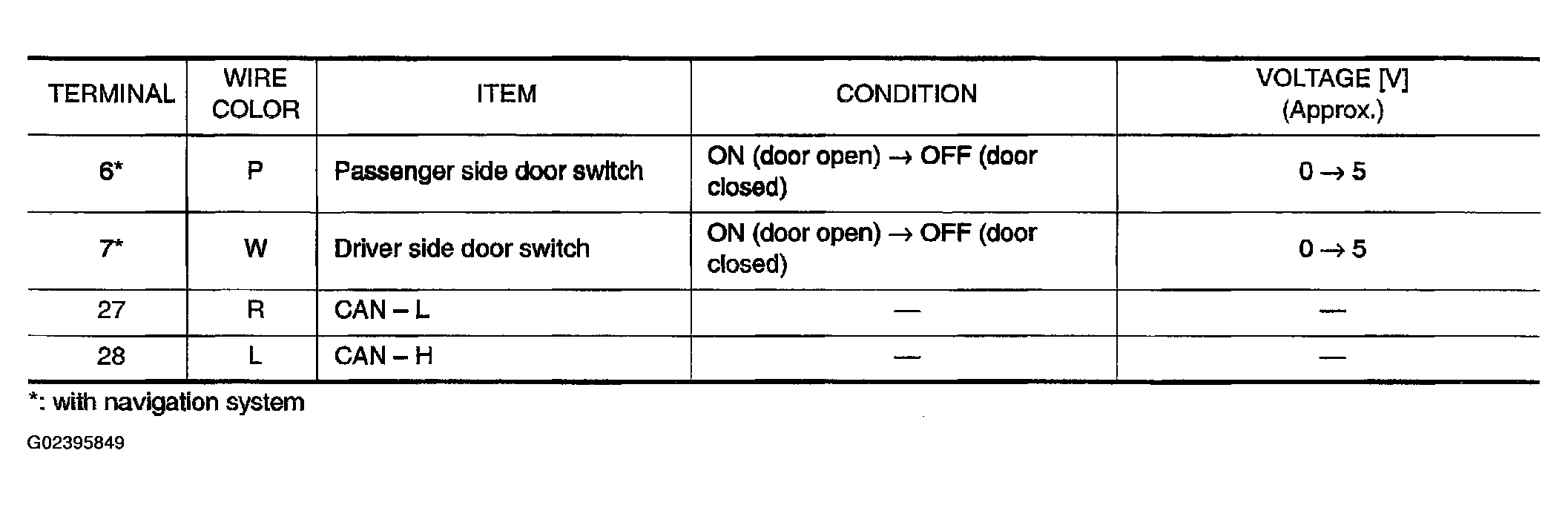

Fig 1: Displaying Combination Meter Terminal Reference Values
