Warning Indications

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

When combination meter receives warning signal from some control units or sensors, then combination meter warning lamp is illuminated.

Then combination meter sends warning signal to NAVI control unit to display warning indications on the screen.

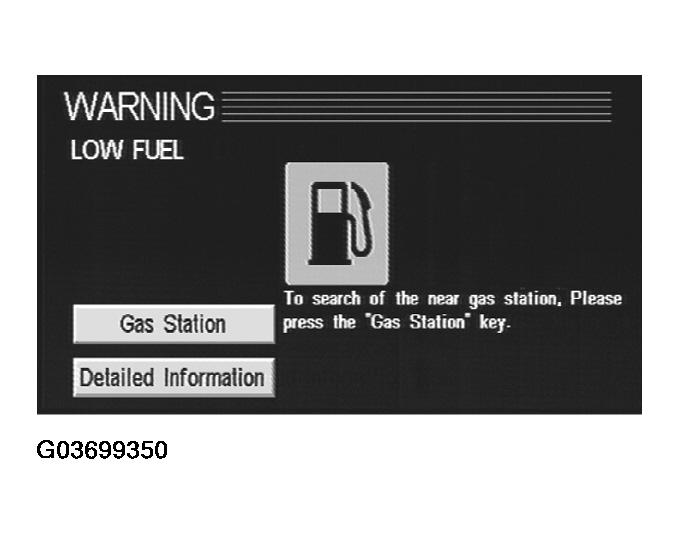

Fig 1: Identifying Warning Indications Display

Courtesy of NISSAN MOTOR CO., U.S.A.

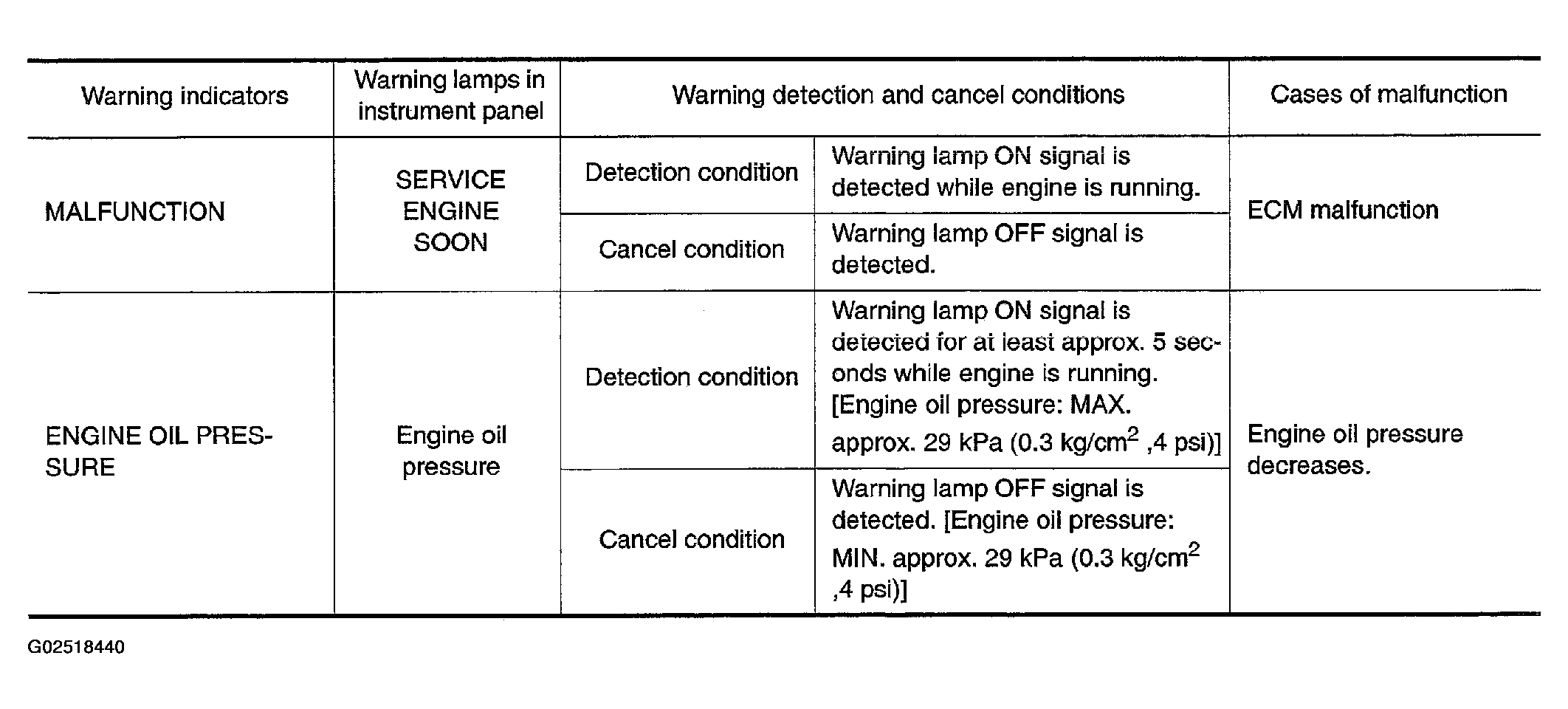

Fig 2: Warning Indications Diagnosis Table - (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

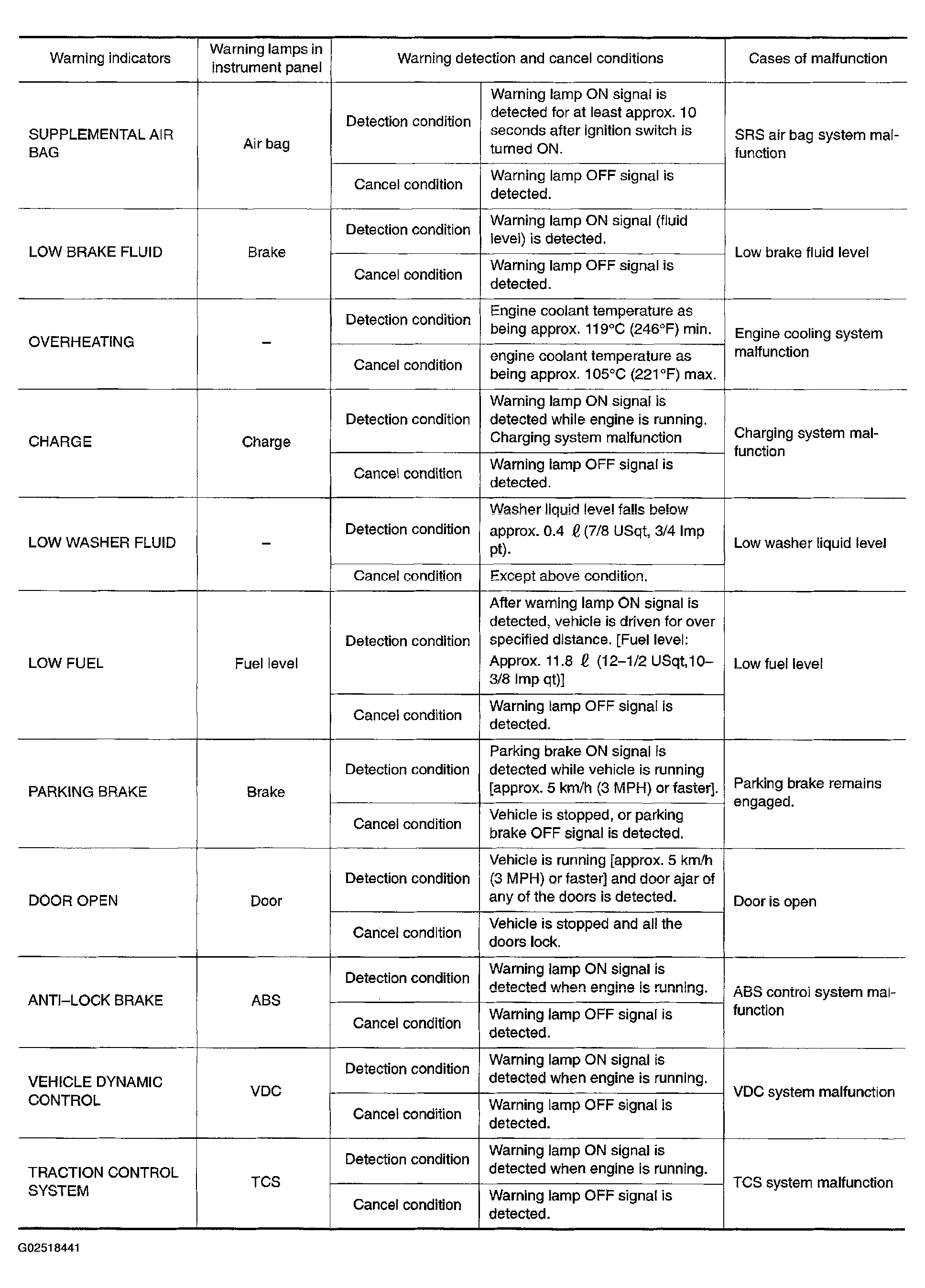

Fig 3: Warning Indications Diagnosis Table - (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

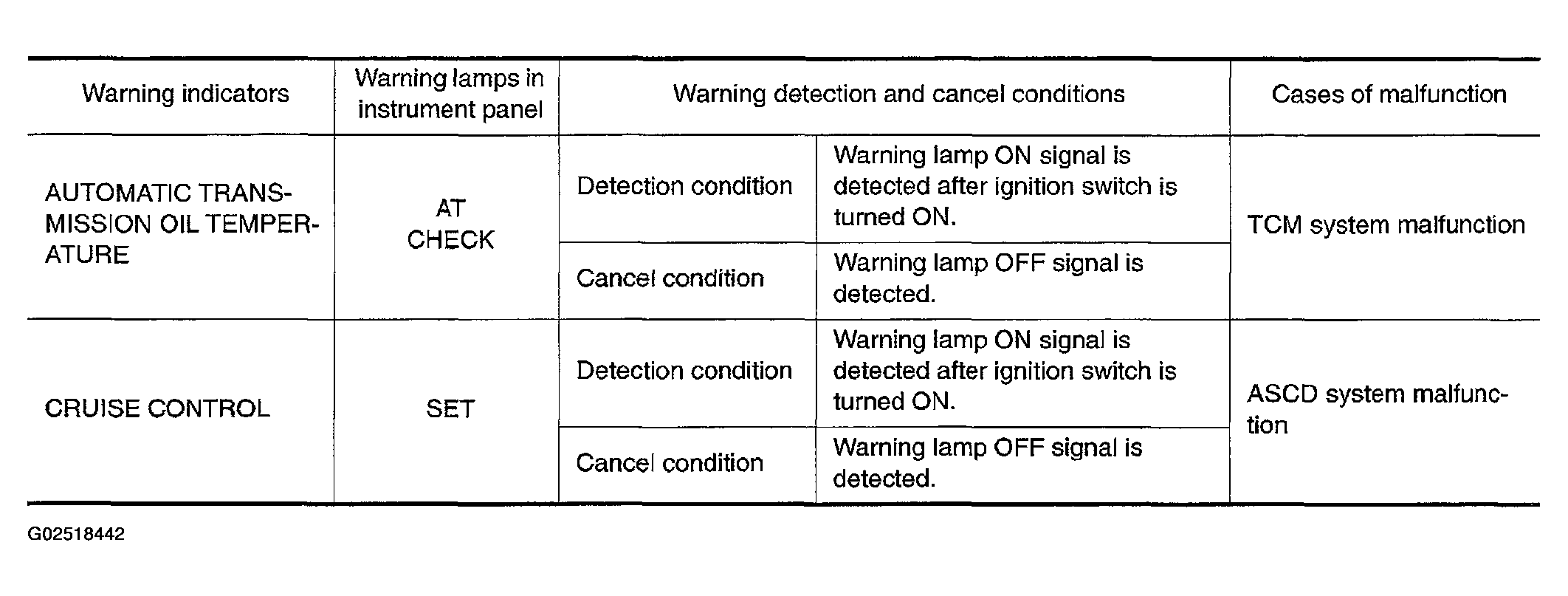

Fig 4: Warning Indications Diagnosis Table - (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
