All Signals, Main Signals, Selection From Menu

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

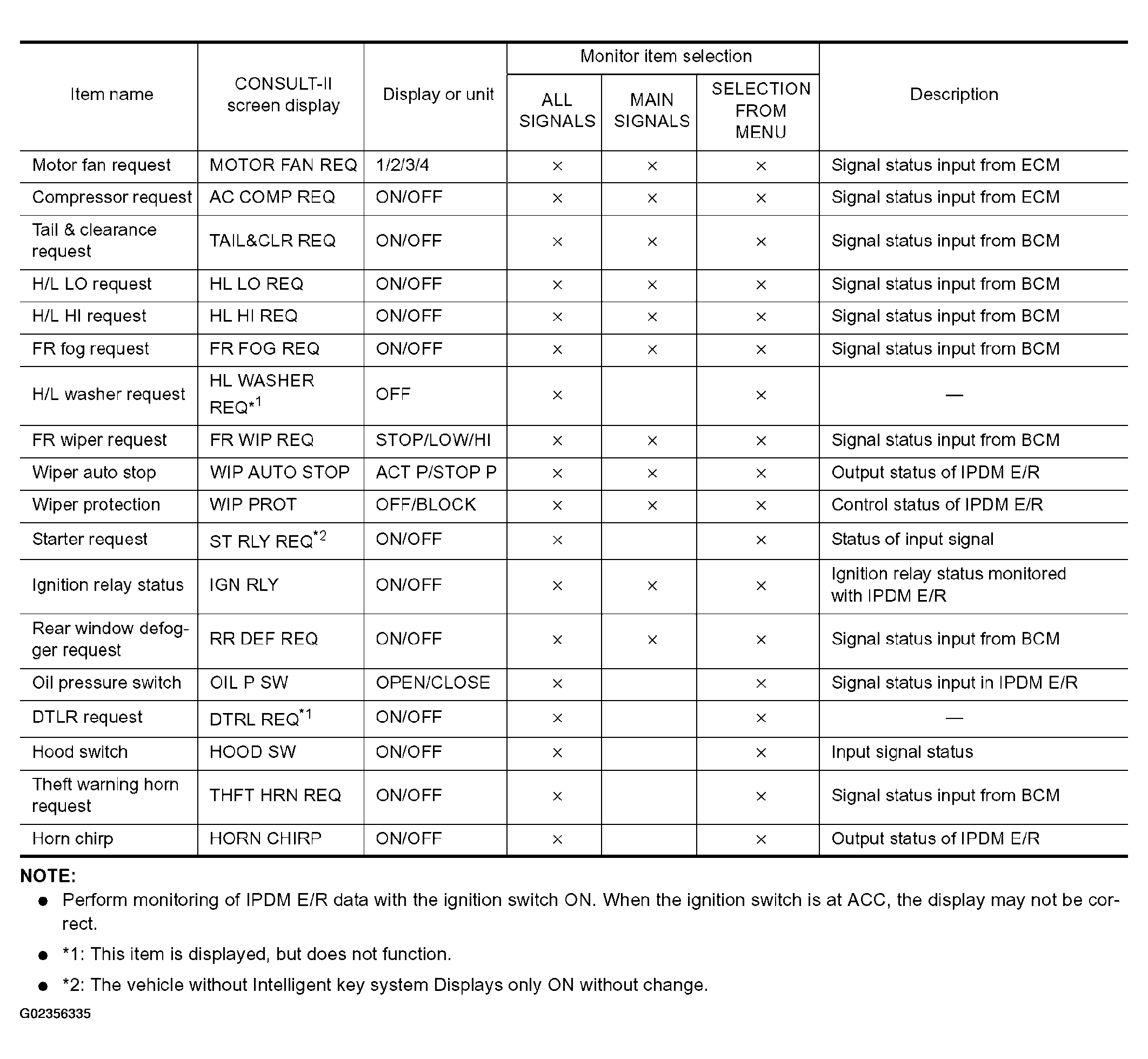

Fig 1: Data Monitor Signal Functions
G02356335Courtesy of NISSAN MOTOR CO., U.S.A.
