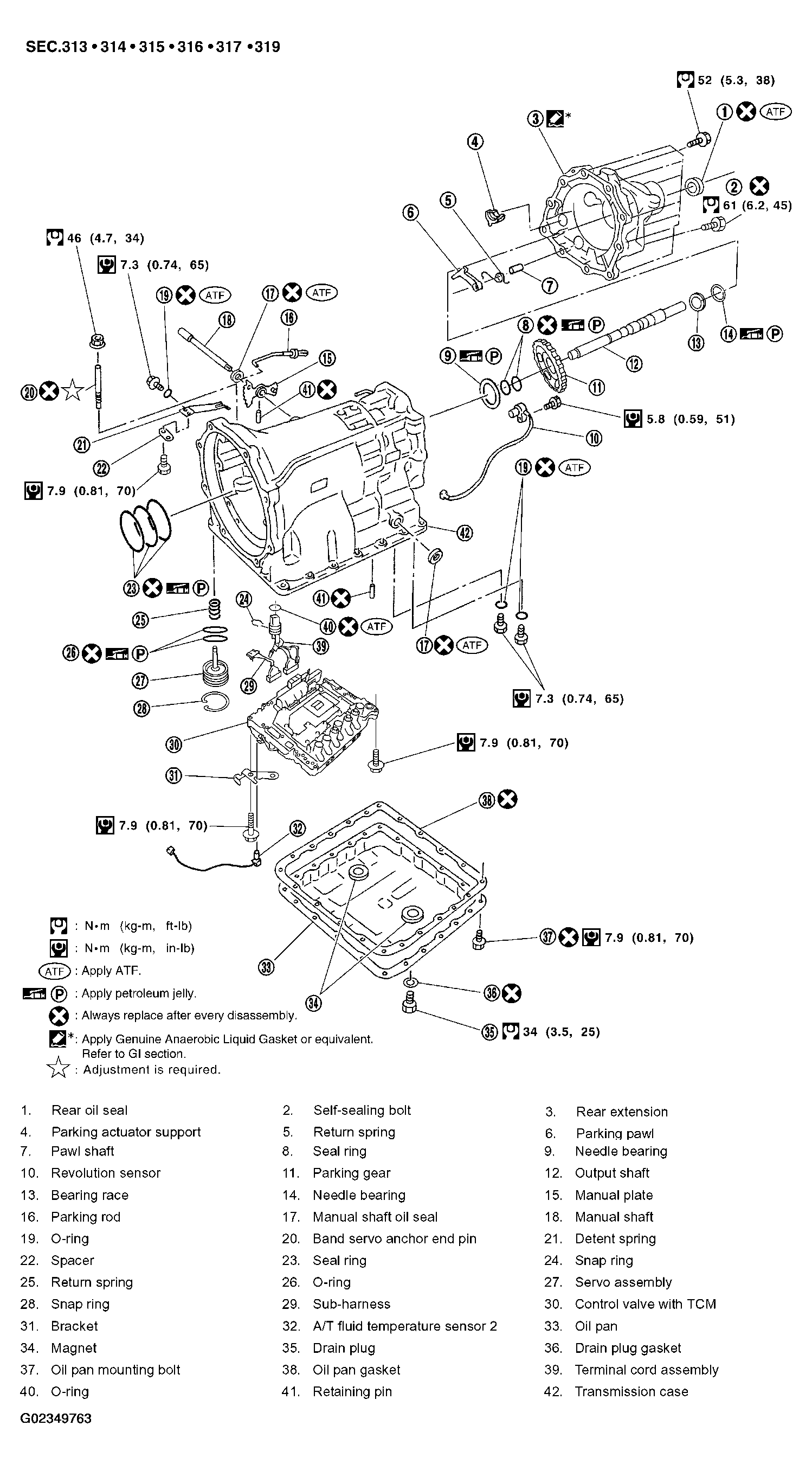

Fig 1: Exploded View Of Transmission Assembly (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

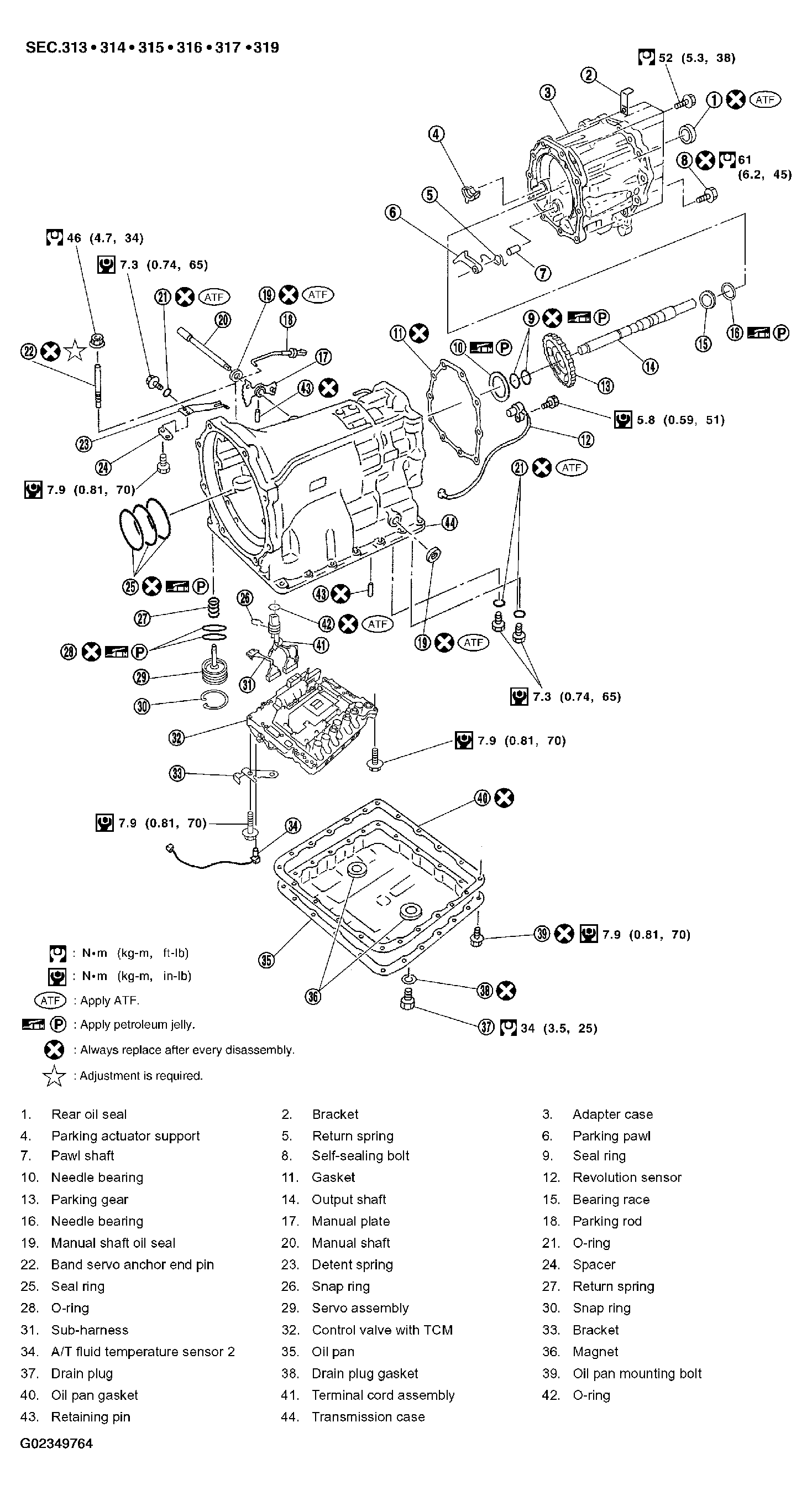

Fig 2: Exploded View Of Transmission Assembly (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

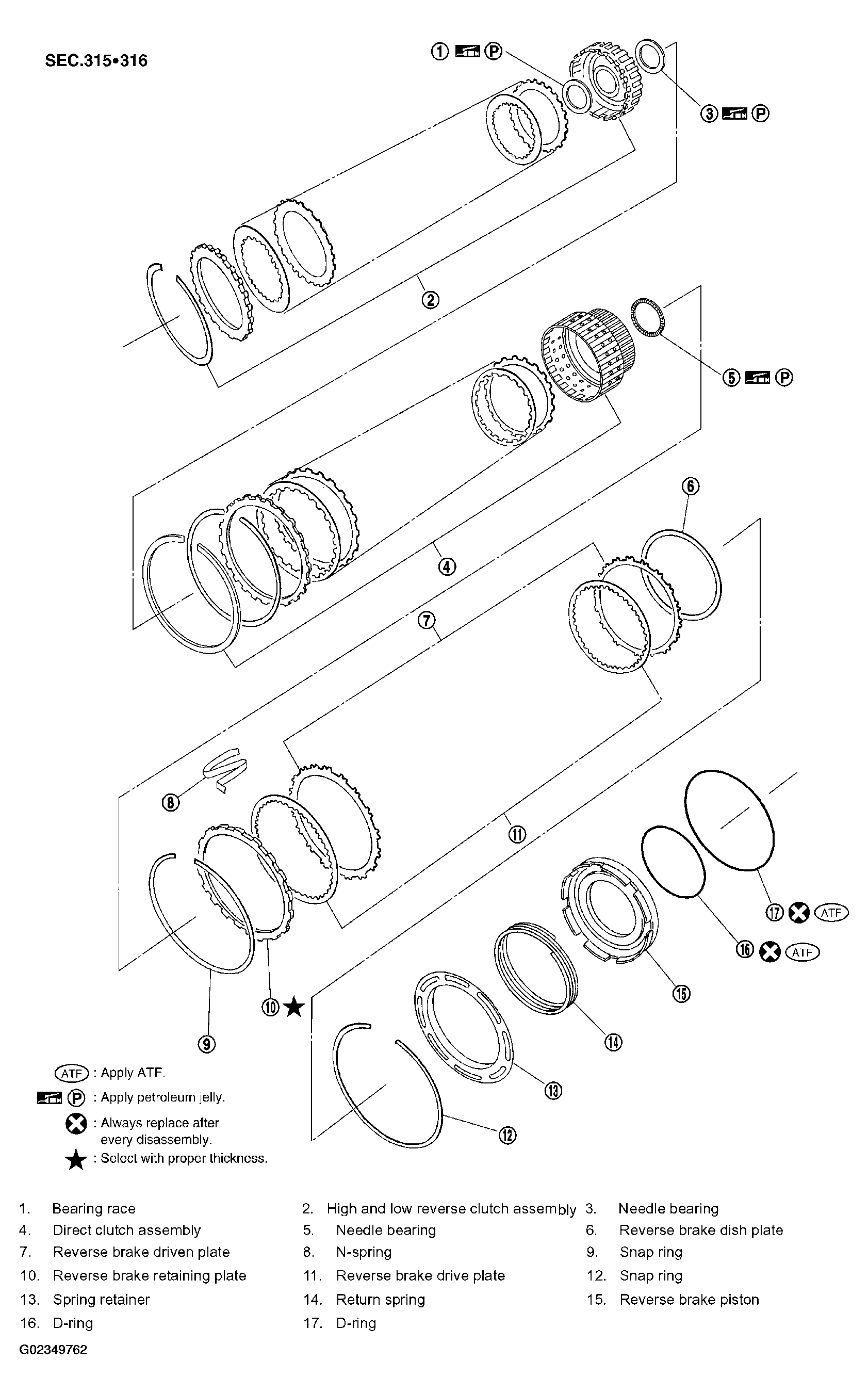

Fig 3: Exploded View Of Transmission Assembly (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

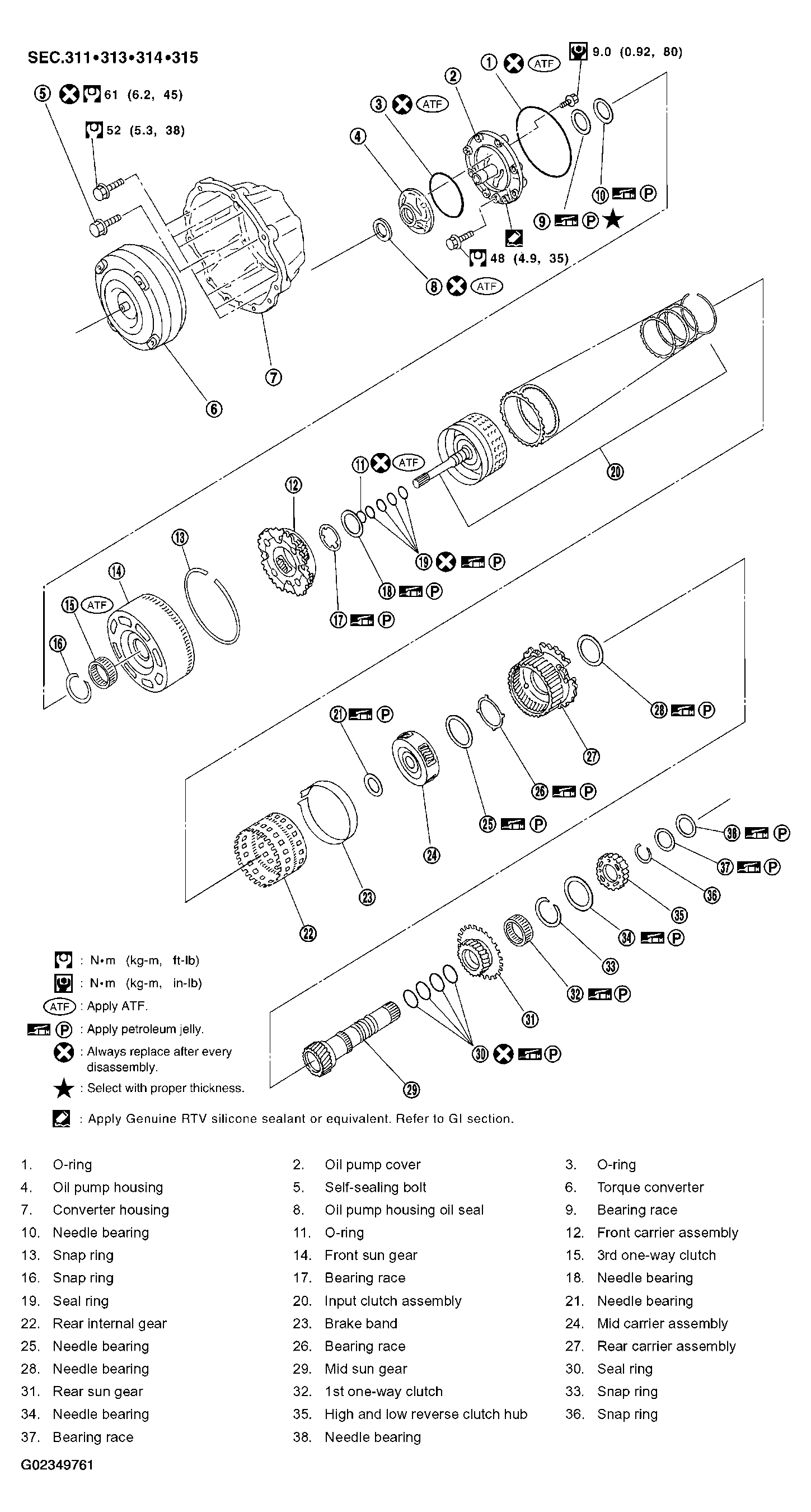

Fig 4: Exploded View Of Transmission Assembly (AWD Models)
