Control Device Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect lower lever of control device and control rod.
  2. Remove knob cover below selector lever downward.
  3. Pull lock pin out of selector lever knob.
  4. Remove selector lever knob.
  5. Remove console finisher. Refer to 2005 INSTRUMENT PANEL - G35 SEDAN
  6. Remove center console. Refer to CENTER CONSOLE (A/T MODELS)
  7. Remove rear ventilator duct 2. Refer to 2005 AUTOMATIC AIR CONDITIONER - G35 SEDAN
    Fig 1: Identifying Selector Lever Knob, Knob Pin And Knob Cover
    G02349622Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove key interlock cable from control device. Refer to "Removal and Installation ".
  9. Disconnect A/T device harness connector.

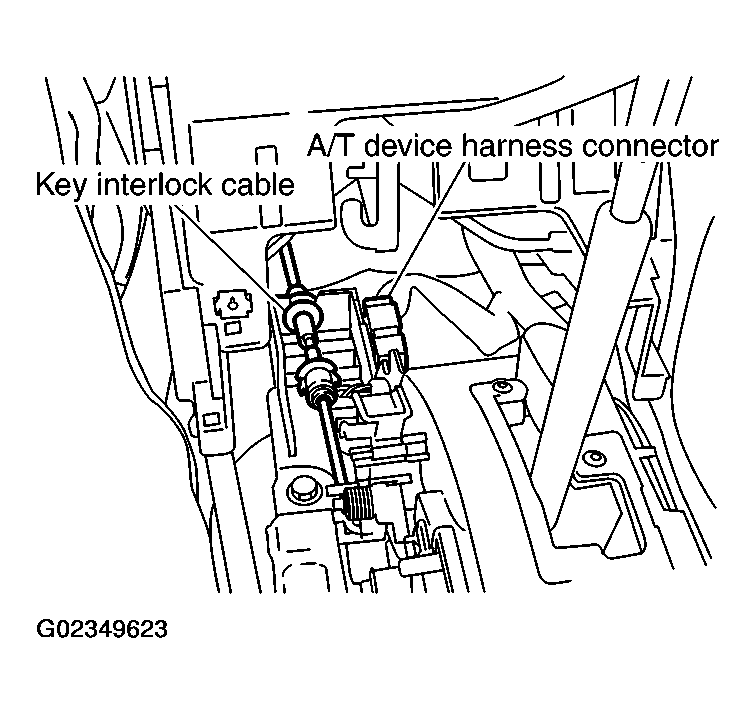

    Fig 2: Removing Key Interlock Cable From Control Device
    G02349623Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove control device assembly.

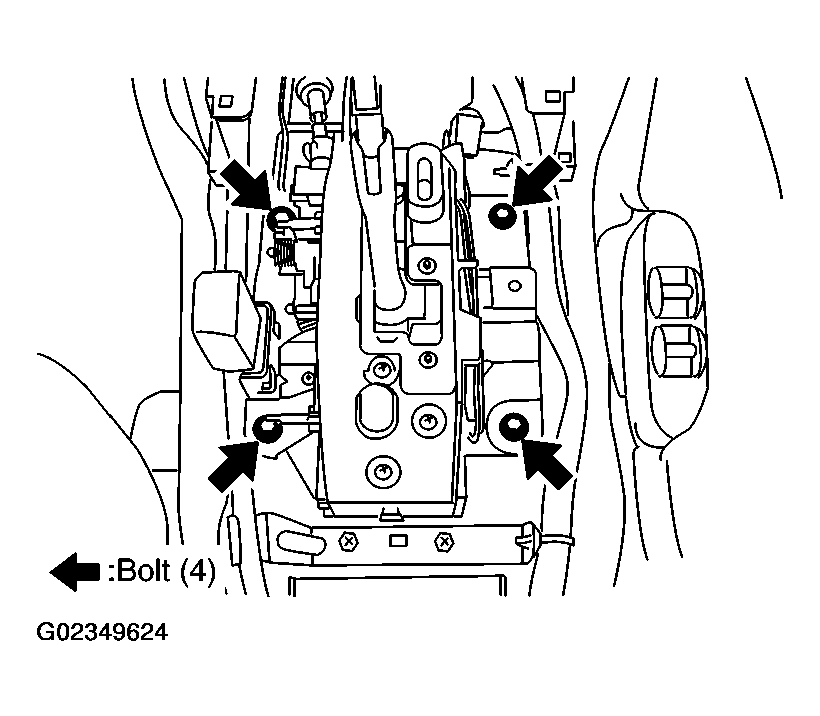

    Fig 3: Removing Control Device Assembly
    G02349624Courtesy of NISSAN MOTOR CO., U.S.A.
