Control Rod Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect lower lever of control device and control rod.
  2. Remove manual lever from transmission.
  3. Remove control rod from vehicle.

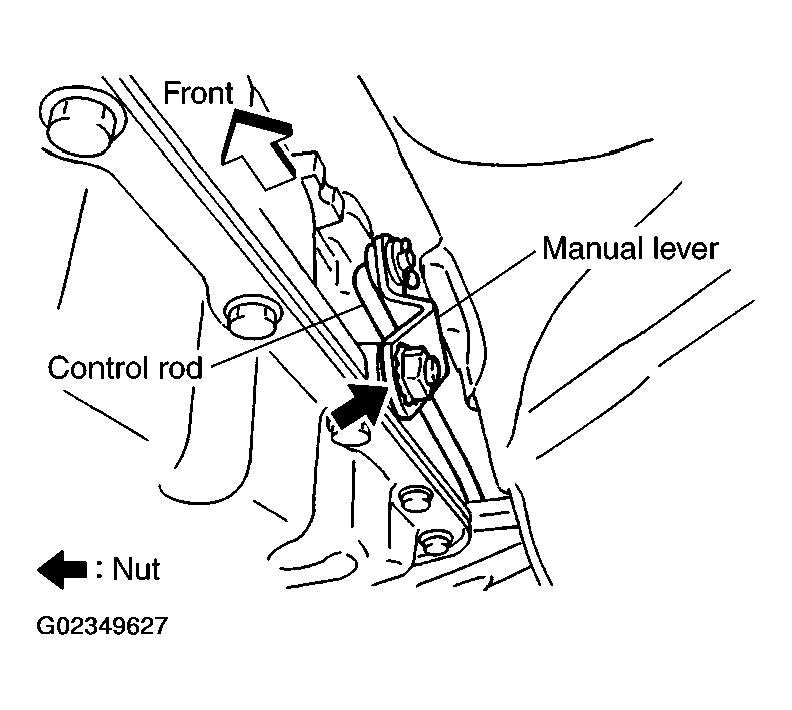

    Fig 1: Locating Control Rod And Manual Lever
    G02349627Courtesy of NISSAN MOTOR CO., U.S.A.
