Power Window Motor (Front Passenger Side) Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW SUB-SWITCH (FRONT PASSENGER SIDE) OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window sub-switch (front passenger side) connector and ground.

  Fig 1: Voltage Check Between Power Window Sub-Switch (Front Passenger Side) Connector And Ground Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

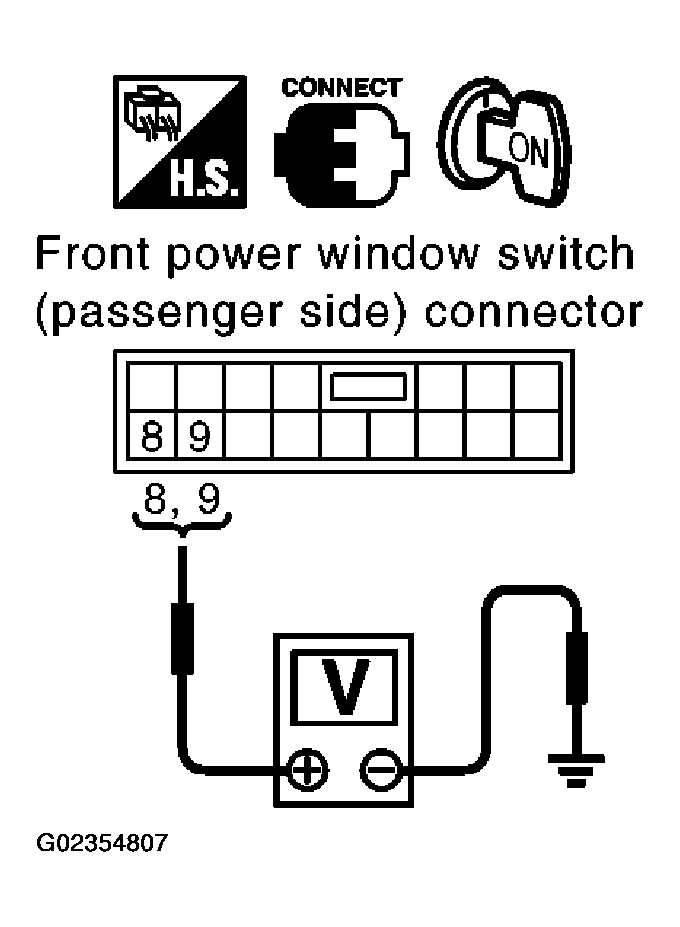

  Fig 2: Checking Voltage Between Power Window Sub-Switch (Front Passenger Side) Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace power window sub-switch (front passenger side).
CHECK POWER WINDOW MOTOR (FRONT PASSENGER SIDE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window motor (front passenger side) and power window sub-switch (front passenger side) connector.
3. Check continuity between power window sub-switch (front passenger side) connector D37 terminals 8, 9 and power window motor (front passenger side) connector D38 terminals 1, 2.
  8 (L) - 2 (L): Continuity should exist.

  9 (G) - 1 (G): Continuity should exist.
OK or NG
1. OK: Replace power window motor (front passenger side)
2. NG: Repair or replace harness.

  Fig 3: Checking Continuity Between Power Window Sub-Switch (Front Passenger Side) Connector D37 Terminals 8, 9 And Power Window Motor (Front Passenger Side) Connector D38 Terminals 1, 2
  Courtesy of NISSAN MOTOR CO., U.S.A.
