ABS Motor
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

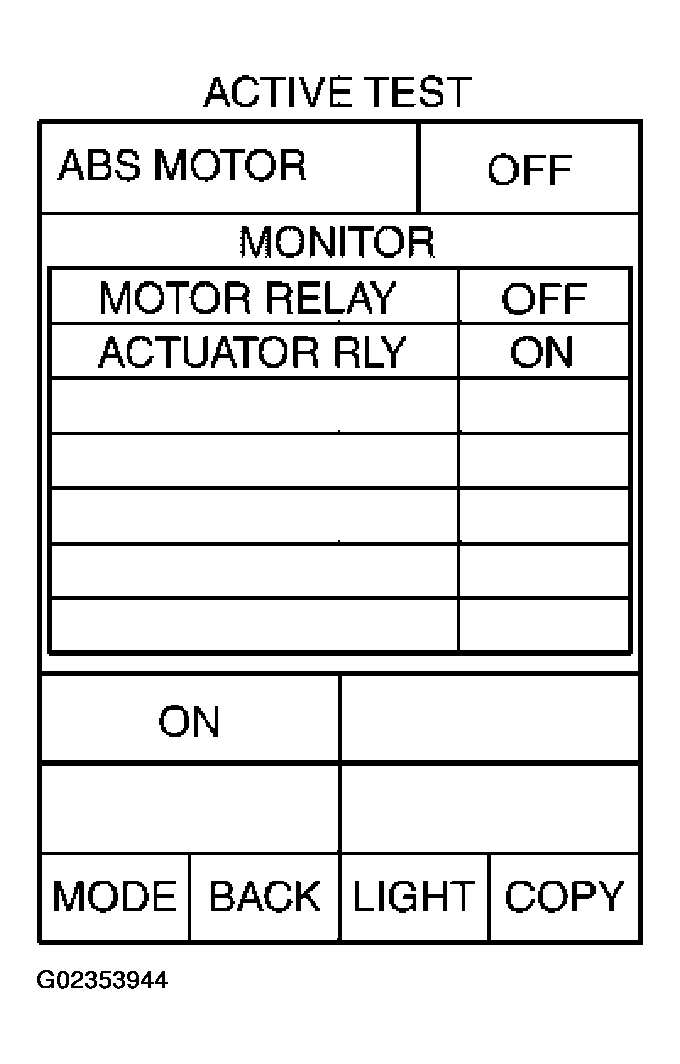

Touch "ON" and "OFF" on screen. Make sure motor relay operates as shown in table below.
ABS MOTOR OPERATION
| Operation | ON | OFF |
|---|---|---|
| MOTOR RELAY | ON | OFF |
| ACTUATOR RELAY | ON | ON |
NOTE:
- If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
- "TEST STOP" is displayed approximately 10 seconds after operation starts.
