Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not perform active test while driving vehicle.
Make sure to completely bleed air from brake system.
The active test cannot be performed with the ABS warning lamp, VDC indicator lamp and SLIP indicator lamp are on.

Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector and start engine.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which perform CAN communication.
Touch "START" on display.
Touch "ABS" and "ACTIVE TEST".

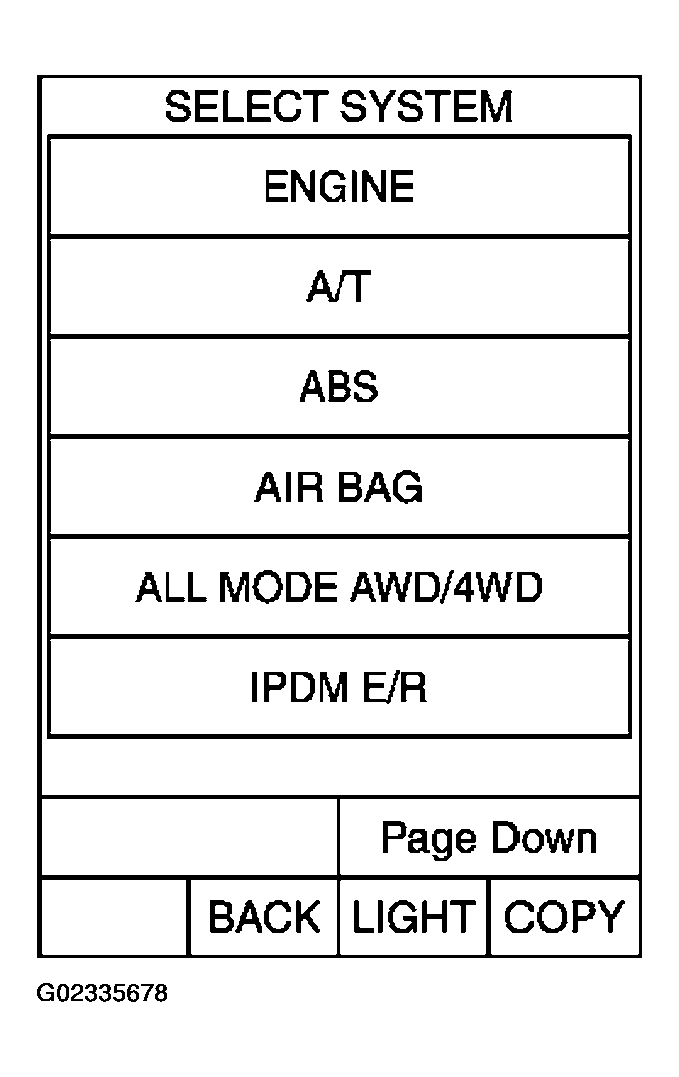

Fig 1: CONSULT-II - SELECT SYSTEM Display
Courtesy of NISSAN MOTOR CO., U.S.A.

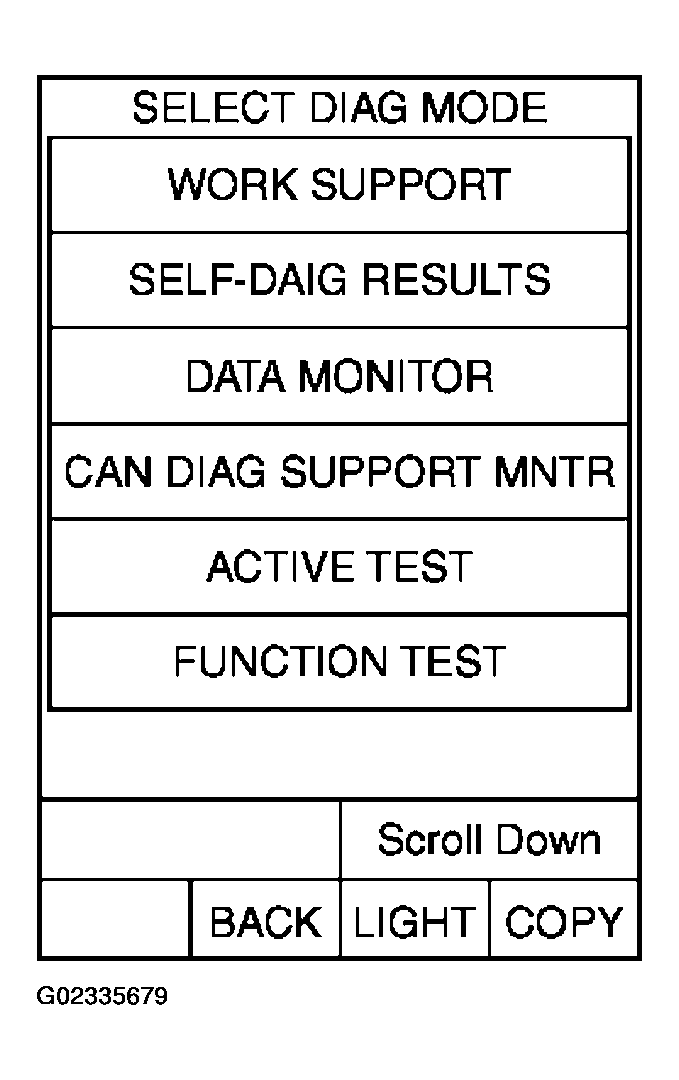

Fig 2: CONSULT-II - SELECT DIAG MODE Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Test item selection screen is displayed.
Touch necessary test item.

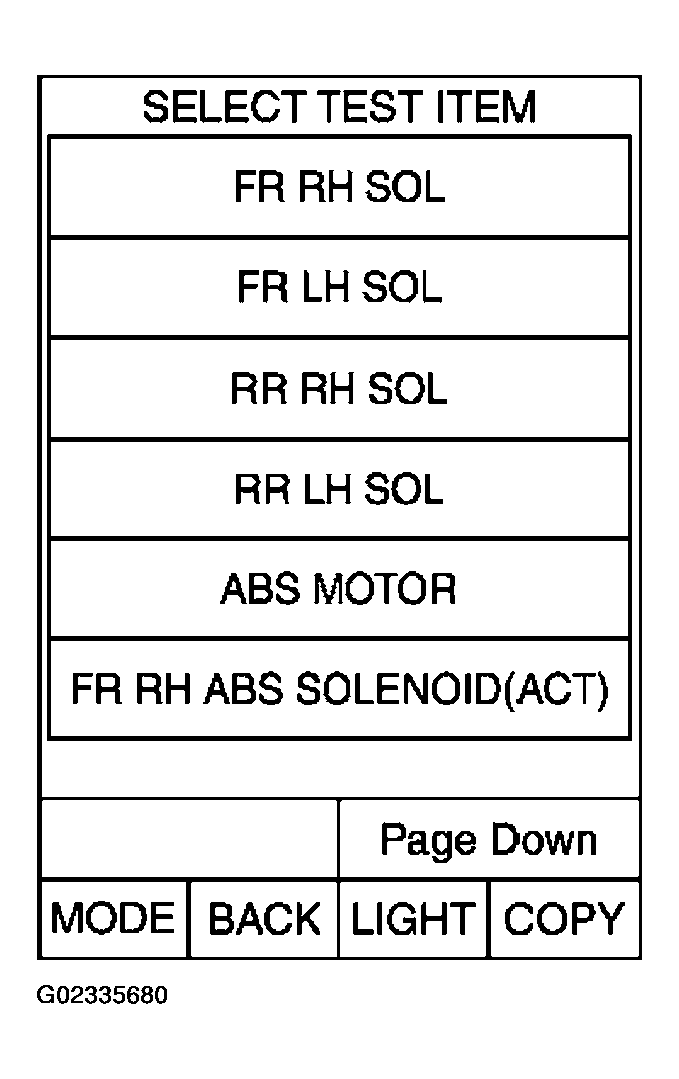

Fig 3: CONSULT-II - SELECT TEST ITEM Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START" with "MAIN SIGNALS" line inverted.

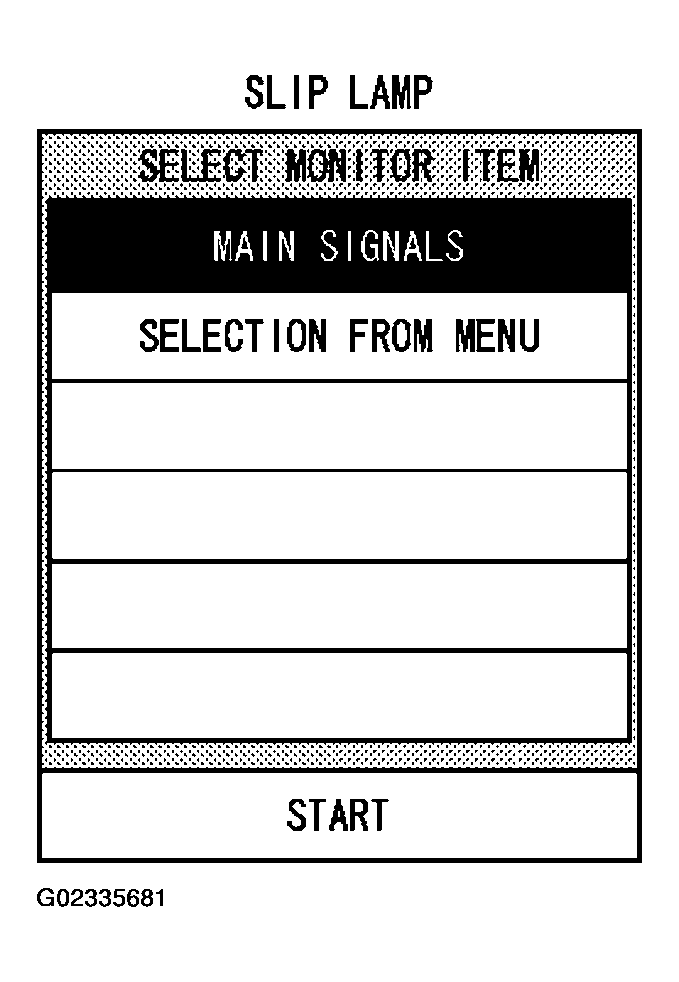

Fig 4: CONSULT-II - START With MAIN SIGNALS Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Active test screen is displayed.

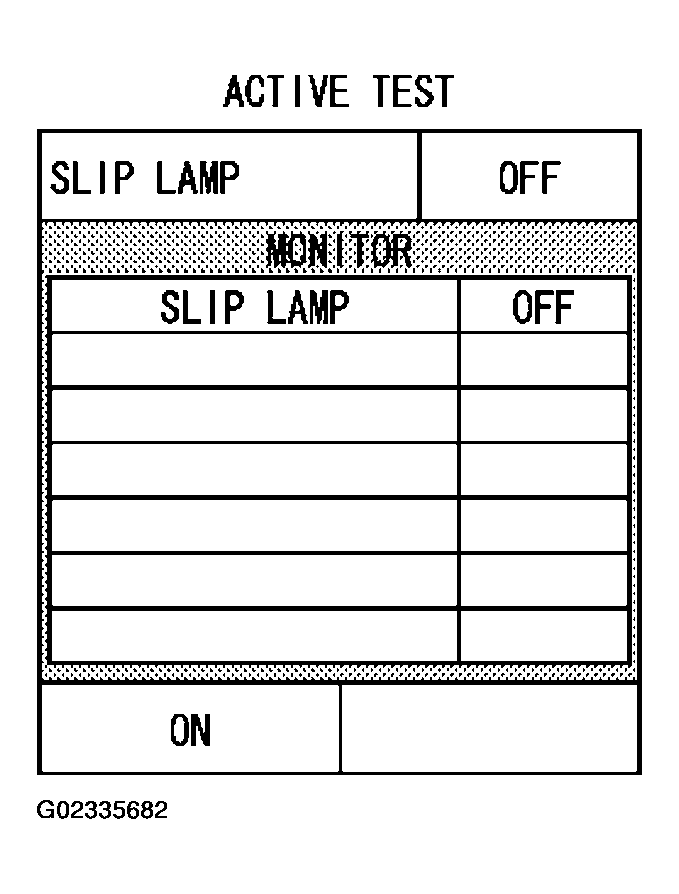

Fig 5: CONSULT-II - ACTIVE TEST Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
