Display with Pushed "INFO" Switch

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NAVI control unit is communicating combination meter.

Push "INFO" switch to display vehicle information display.
NOTE: If a warning signal is received by NAVI at this time, NAVI control unit displays warning message on screen.
Select "Trip Computer", "Fuel Economy" or "Maintenance".

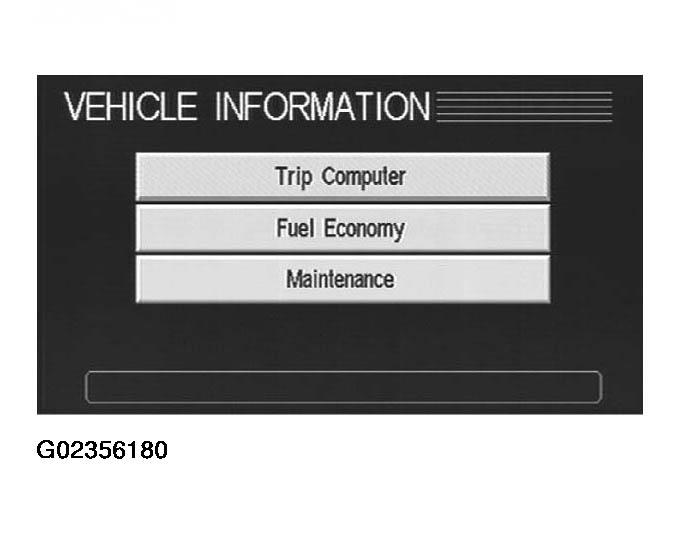

Fig 1: Pushed INFO Switch Display
Courtesy of NISSAN MOTOR CO., U.S.A.

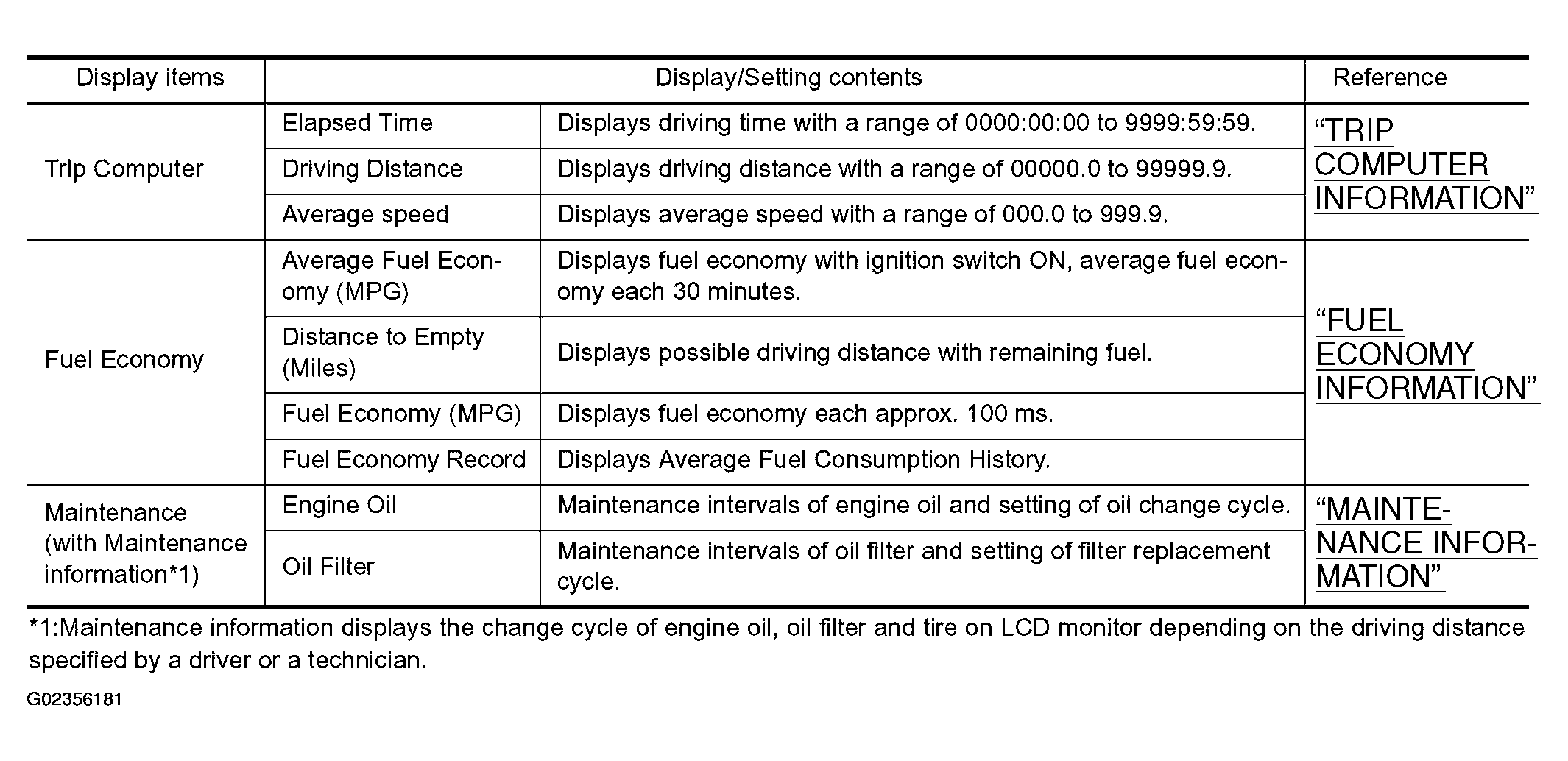

Fig 2: Display Items Contents Table
Courtesy of NISSAN MOTOR CO., U.S.A.
