Removal And Installation: Notes

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure engine coolant escaping from the radiator.

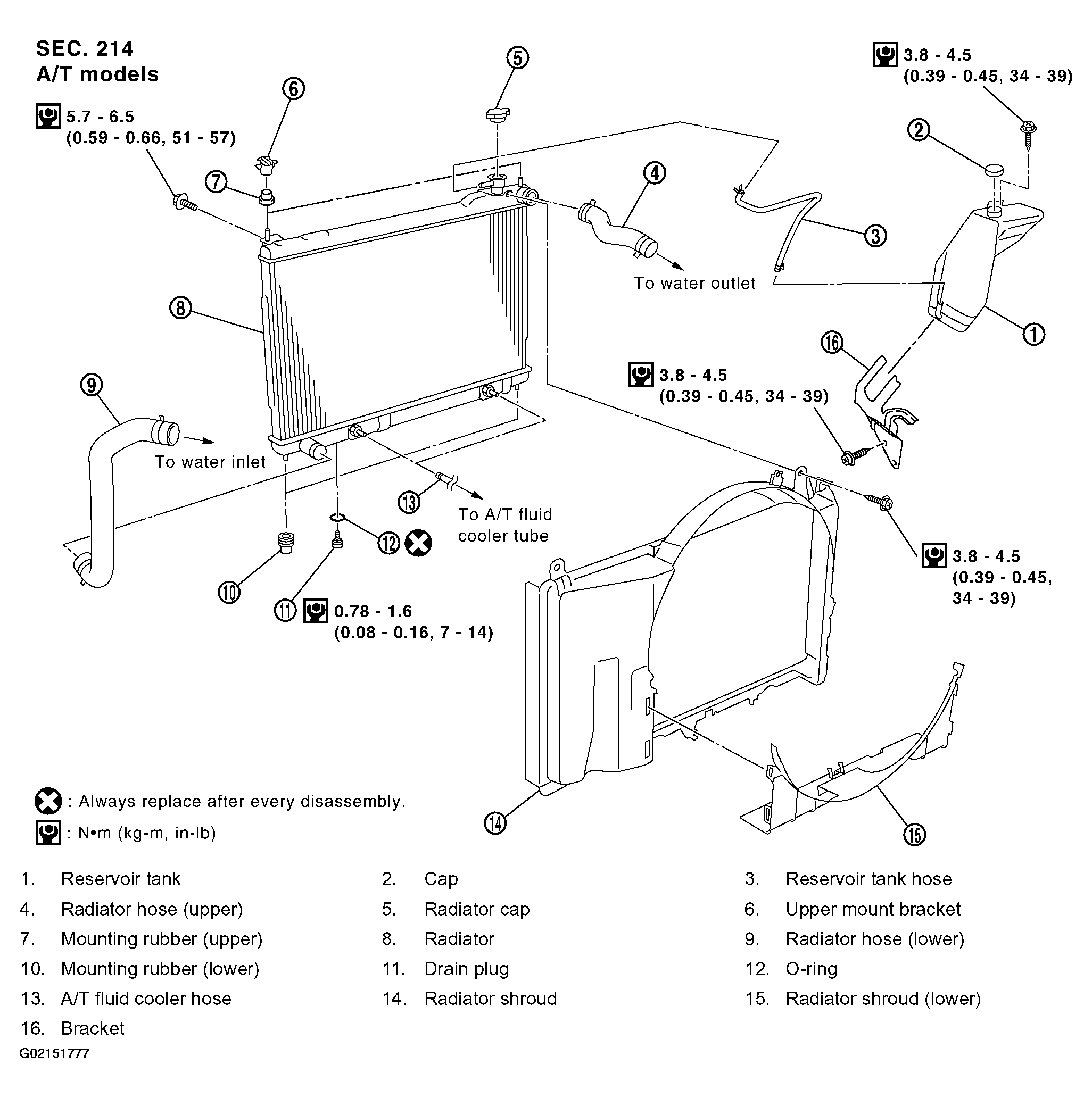

Fig 1: Removing And Installing Radiator A/T Models

Courtesy of NISSAN MOTOR CO., U.S.A.

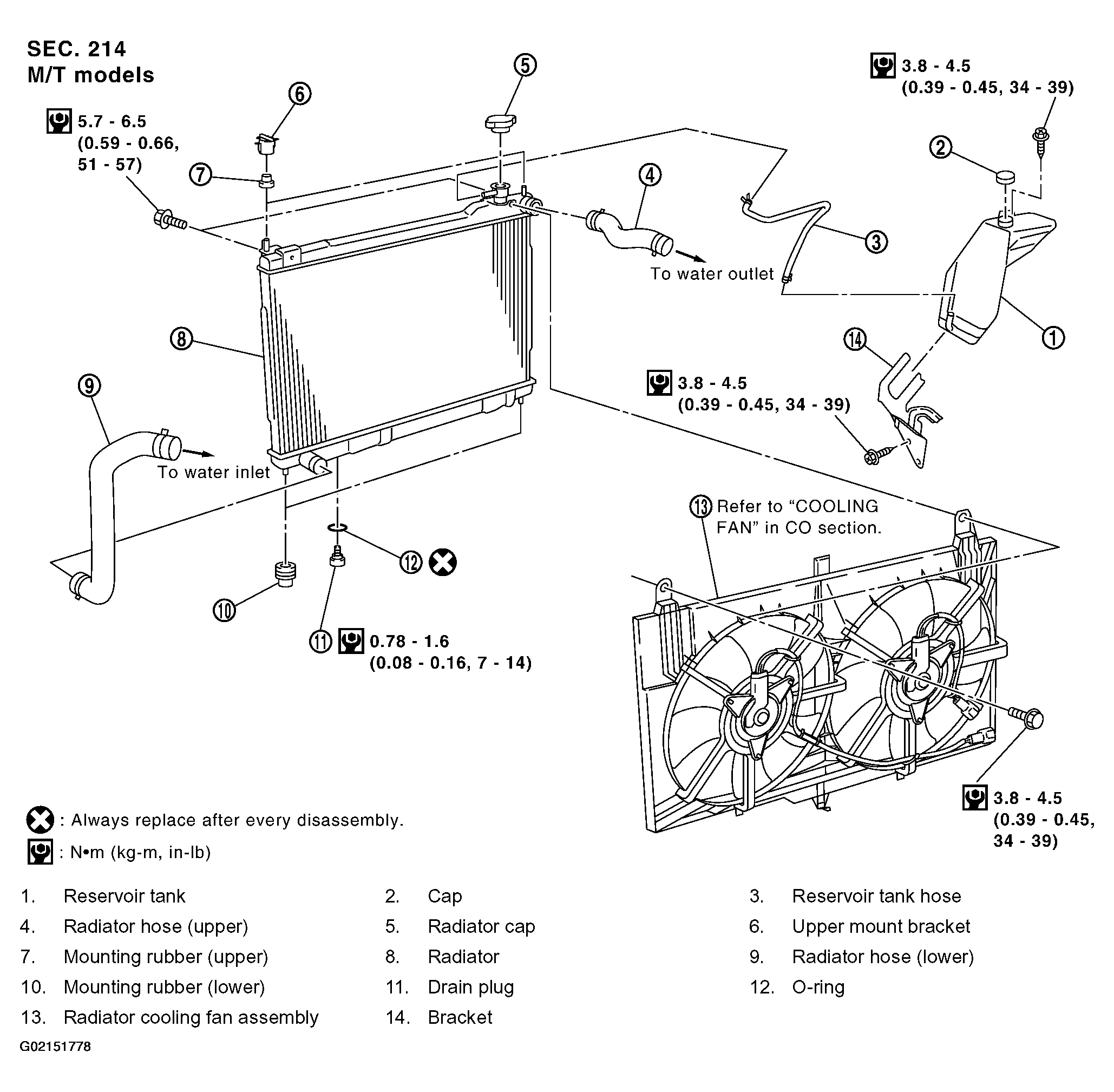

Fig 2: Removing And Installing Radiator M/T Models

Courtesy of NISSAN MOTOR CO., U.S.A.
