DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch ON. (Do not start engine.)
Select "DATA MONITOR" mode for A/T with CONSULT-II.

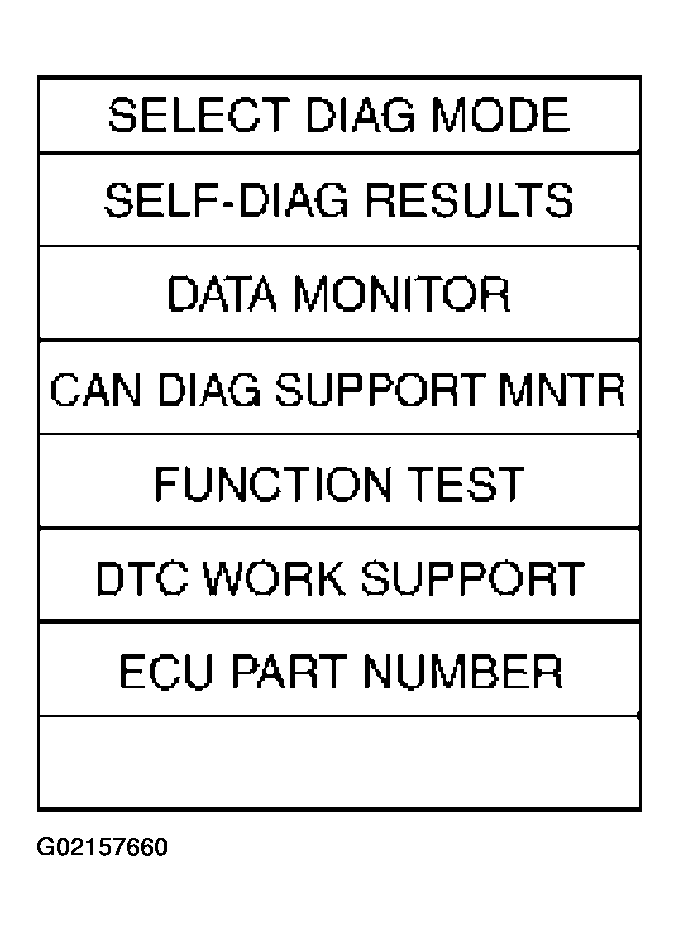

Fig 1: Identifying CONSULT-II Select System Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Run engine for at least 2 consecutive seconds at idle speed.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
