Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device and remove interlock rod from cable.

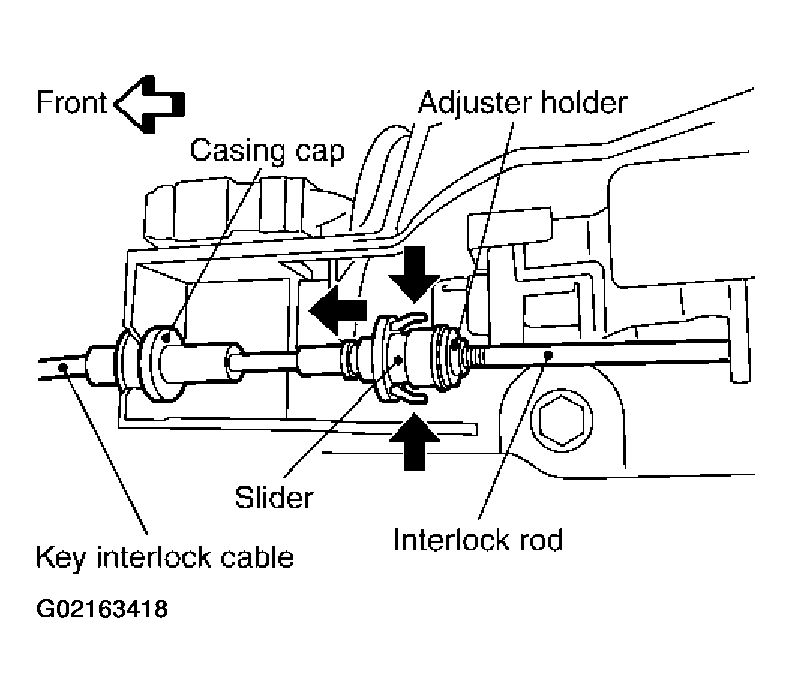

    Fig 1: Removing Interlock Rod From Cable
    G02163418Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

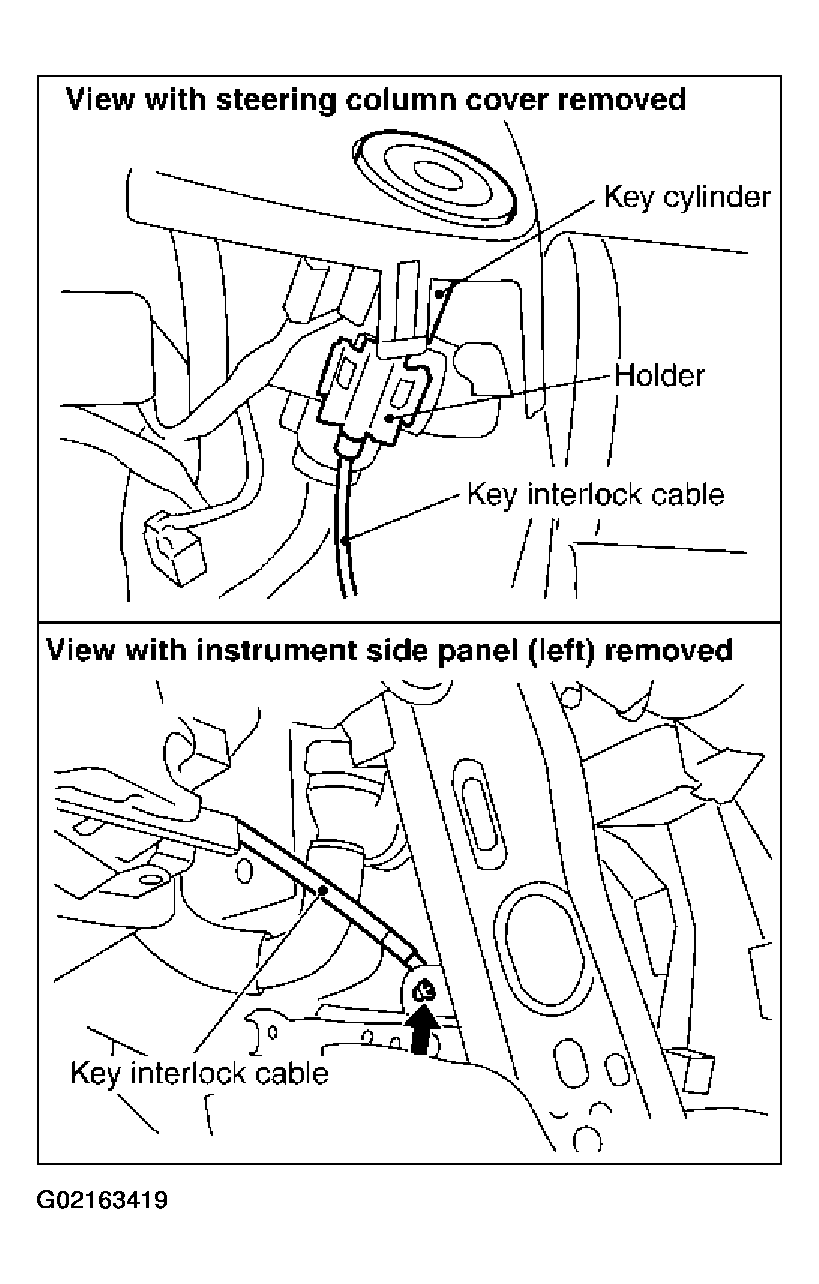

    Fig 2: Removing Holder From Key Cylinder And Remove Key Interlock Cable
    G02163419Courtesy of NISSAN MOTOR CO., U.S.A.
