Control Valve Assembly: Removal

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal
  2. Disconnect heated oxygen sensor 2 harness connector.
  3. Drain ATF through drain plug.
  4. Remove oil pan and oil pan gasket.
    Fig 1: Locating Oil Pan Bolts
    G02163423Courtesy of NISSAN MOTOR CO., U.S.A.
    5. CAUTION: Be careful not to damage connector.

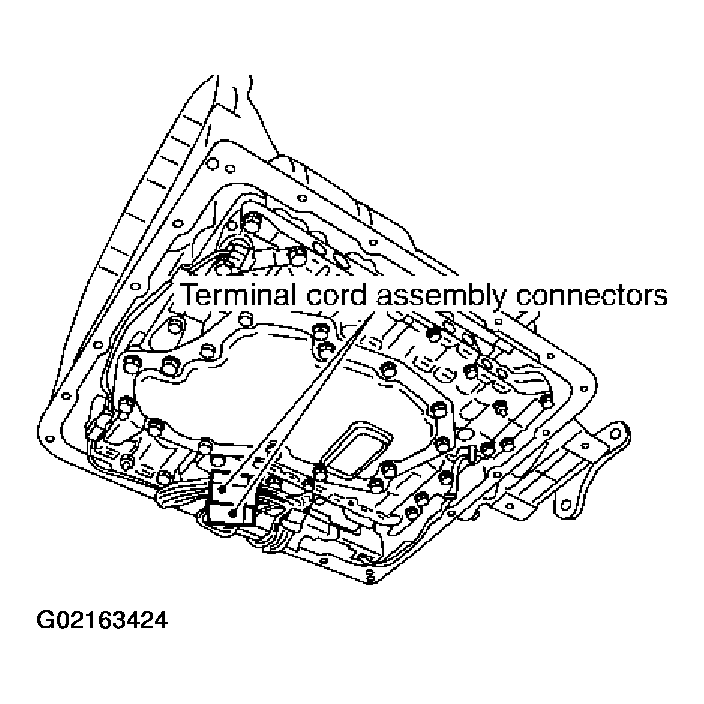

    Fig 2: Disconnecting Terminal Cord Assembly Connectors
    G02163424Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect terminal cord assembly connectors.
    6. CAUTION: Be careful not to damage connector.

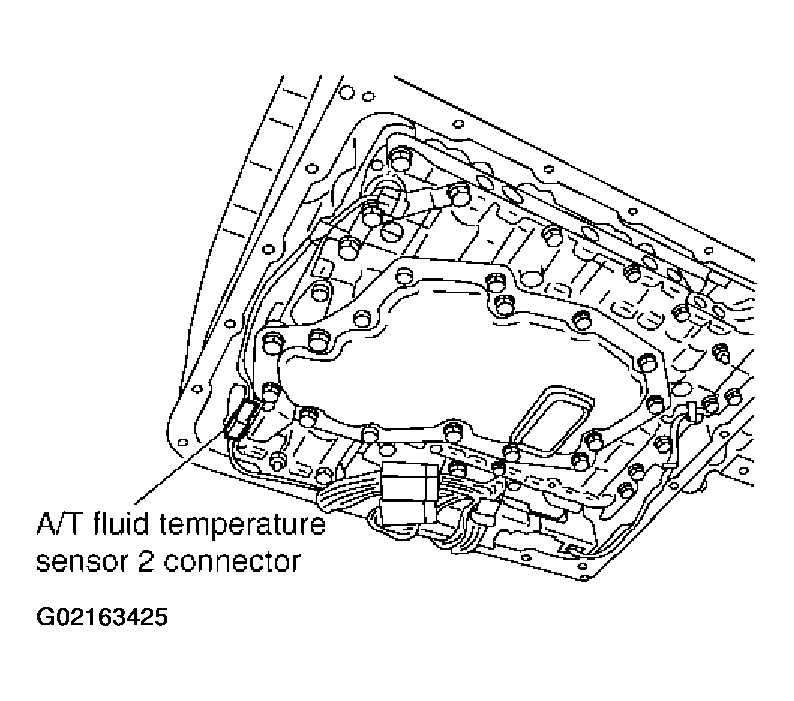

    Fig 3: Disconnecting A/T Fluid Temperature Sensor 2 Connector
    G02163425Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Disconnect A/T fluid temperature sensor 2 connector.
    7. CAUTION: Be careful not to damage connector.

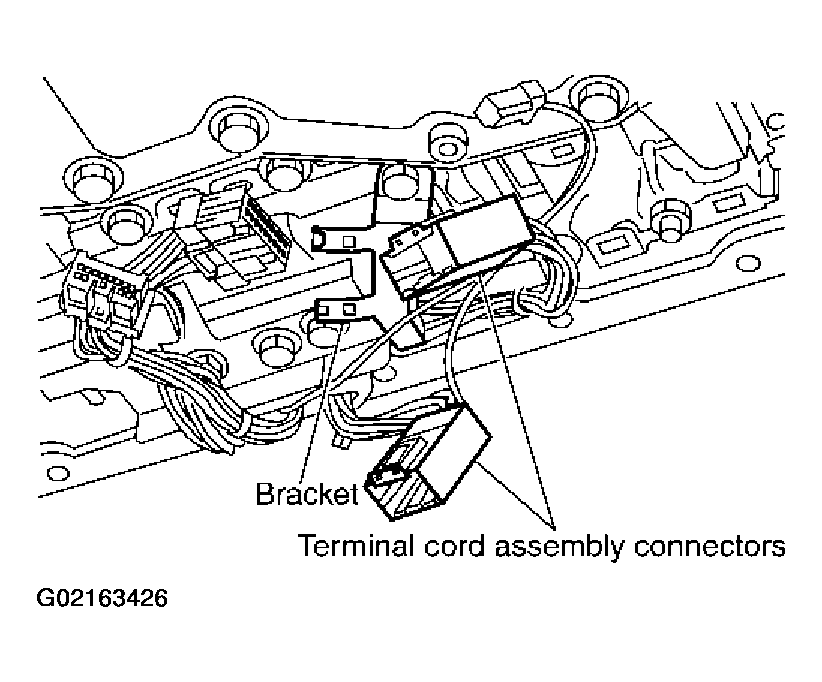

    Fig 4: Removing Terminal Cord Assembly Connectors From Bracket
    G02163426Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove terminal cord assembly connectors from bracket.
    8. CAUTION: Be careful not to damage connector.

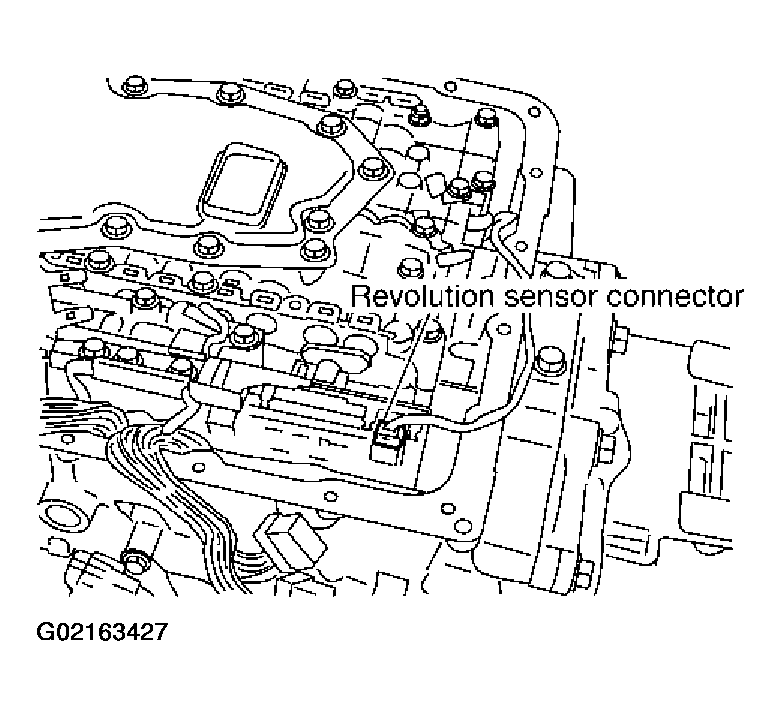

    Fig 5: Disconnecting Revolution Sensor Connector
    G02163427Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Disconnect revolution sensor connector.
    9. CAUTION: Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb removal of control valve assembly.

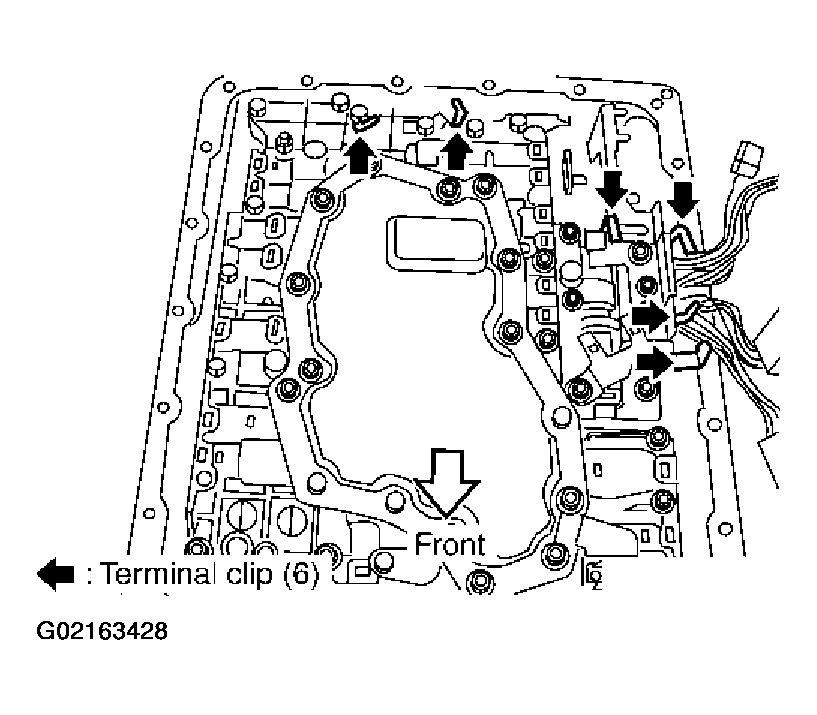

    Fig 6: Removing Terminal Clips
    G02163428Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Straighten terminal clips to free terminal cord assembly and revolution sensor harness then remove terminal clips.
  10. Remove bolts A, B and C from control valve assembly.
    Fig 7: Identifying Control Valve Bolts Technical Data Table
    G02163429Courtesy of NISSAN MOTOR CO., U.S.A.

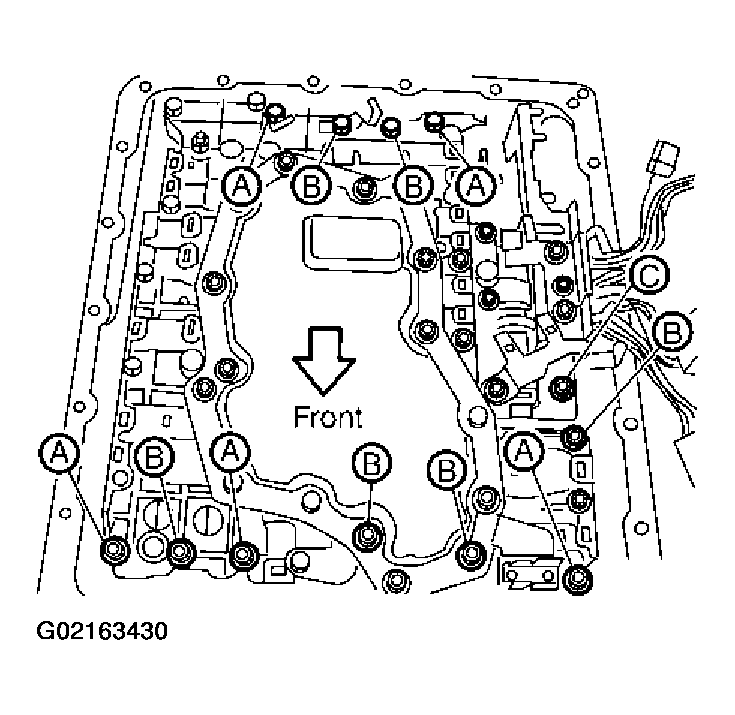

    Fig 8: Removing Control Valve Bolts
    G02163430Courtesy of NISSAN MOTOR CO., U.S.A.
    11. CAUTION: When removing, be careful with the manual valve notch and manual plate height. Remove it vertically.

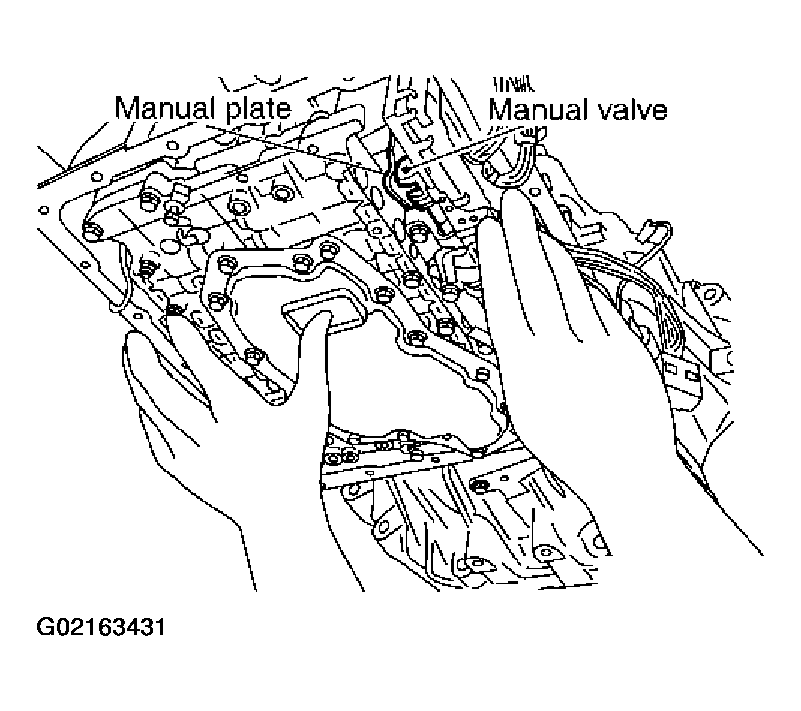

    Fig 9: Removing Control Valve Assembly From Transmission Case
    G02163431Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove control valve assembly from transmission case.
  12. Remove A/T fluid temperature sensor 2 with bracket from control valve assembly.

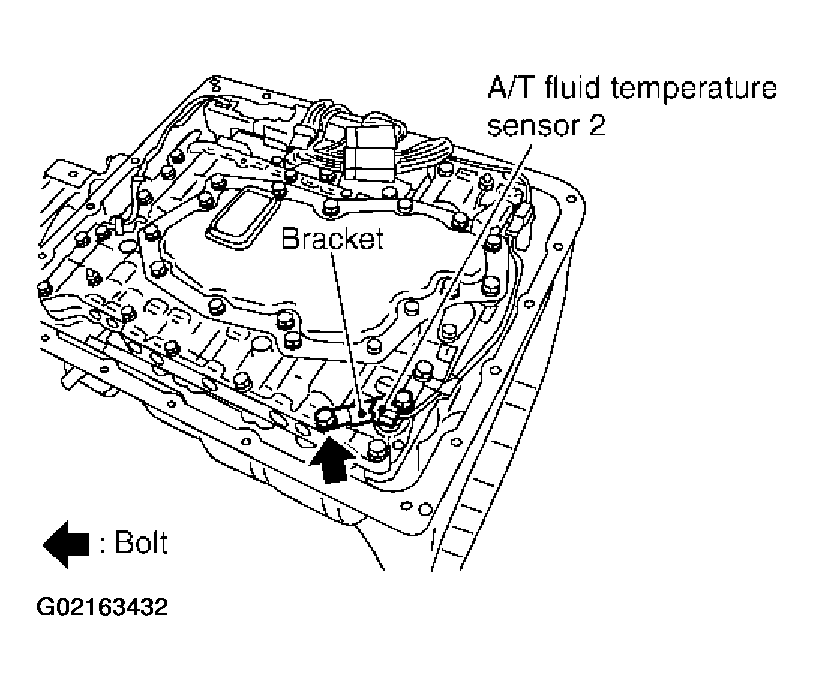

    Fig 10: Removing A/T Fluid Temperature Sensor 2
    G02163432Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove bracket from A/T fluid temperature sensor 2.

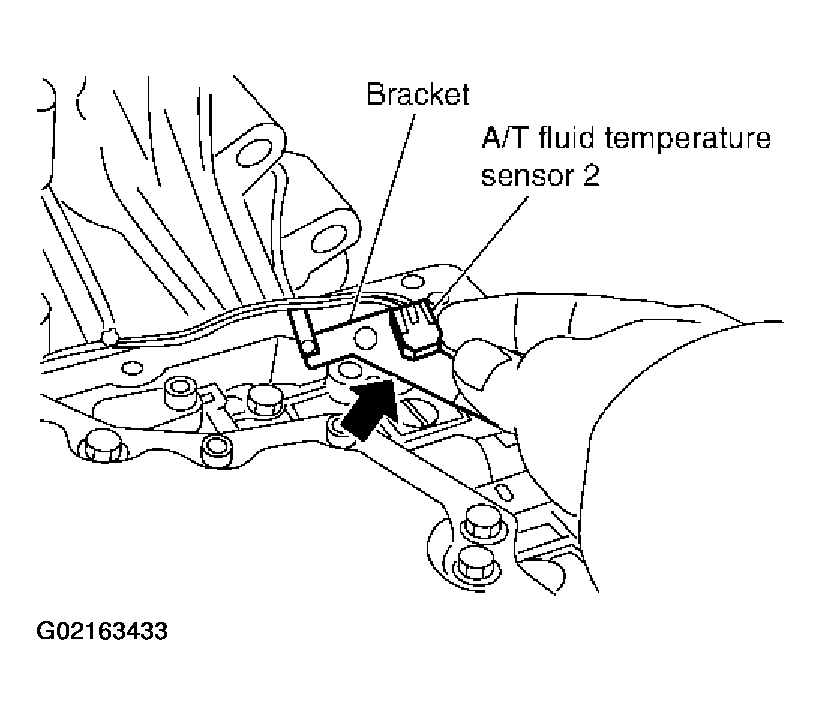

    Fig 11: Removing Bracket From A/T Fluid Temperature Sensor 2
    G02163433Courtesy of NISSAN MOTOR CO., U.S.A.
