Section 658 (Automatic Transmission - Sedan): Overhaul: Components

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

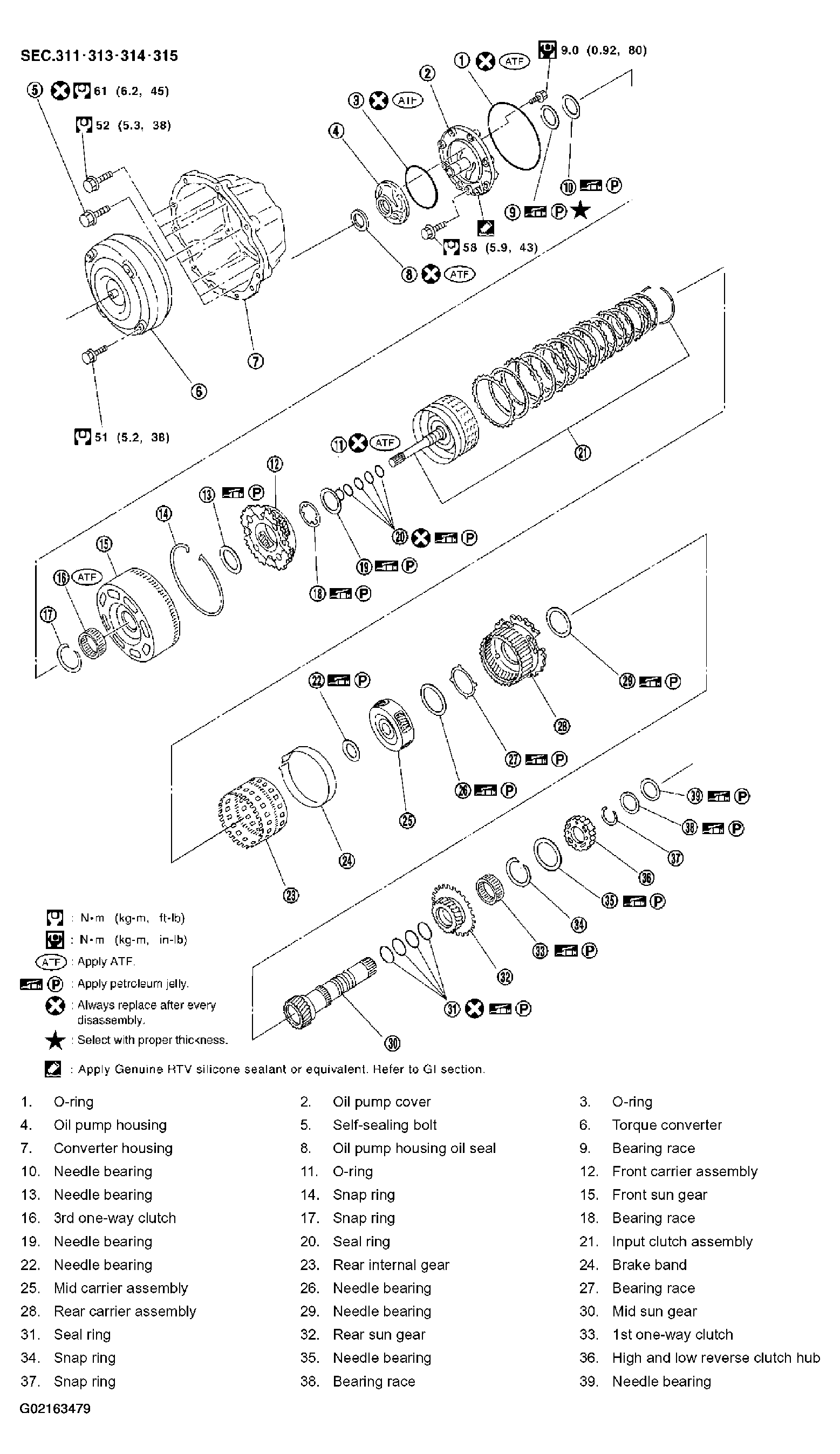

Fig 1: Disassembling/Assembling Transmission Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

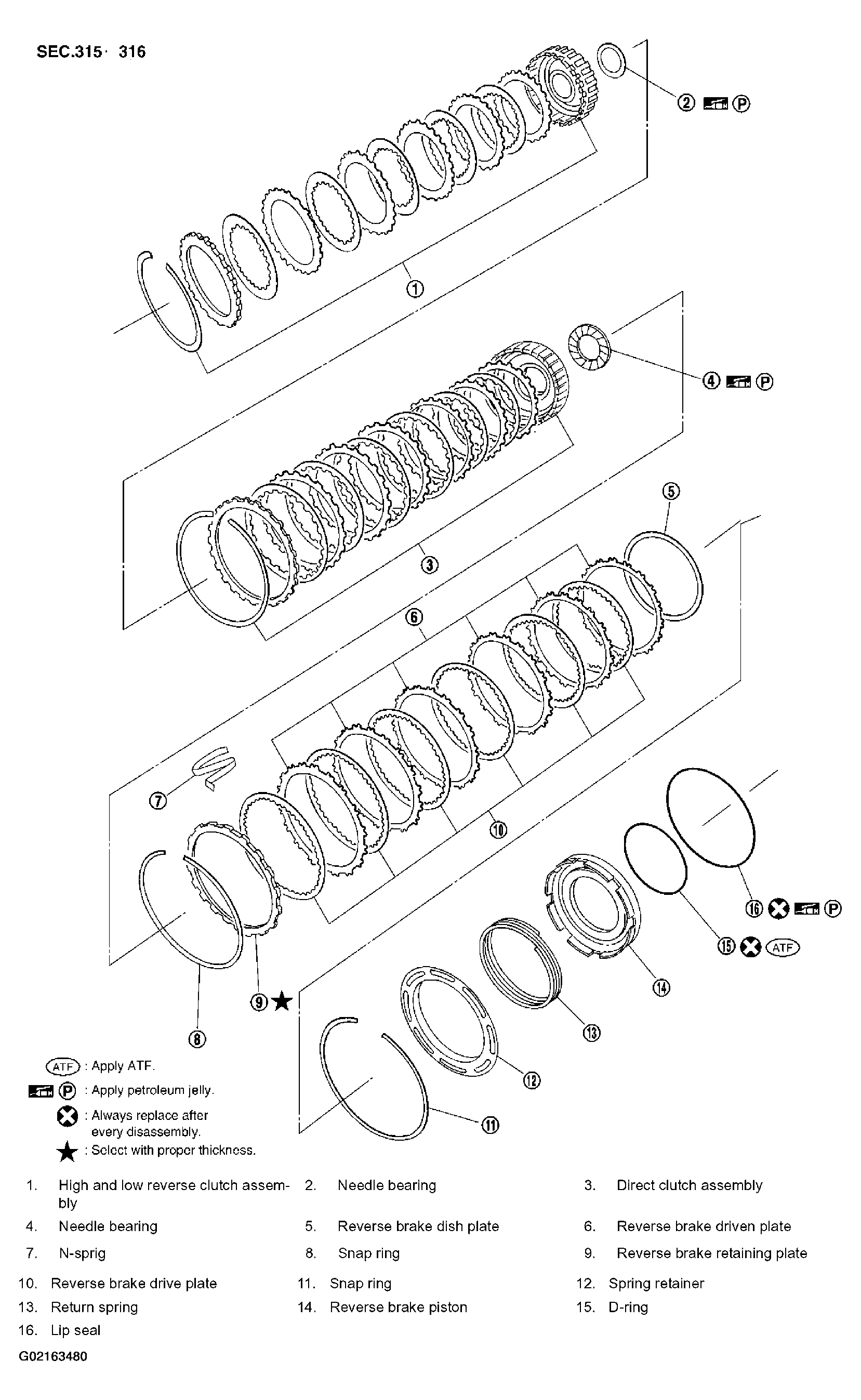

Fig 2: Disassembling/Assembling High And Low Pressure Clutch Assembly And Direct Clutch Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

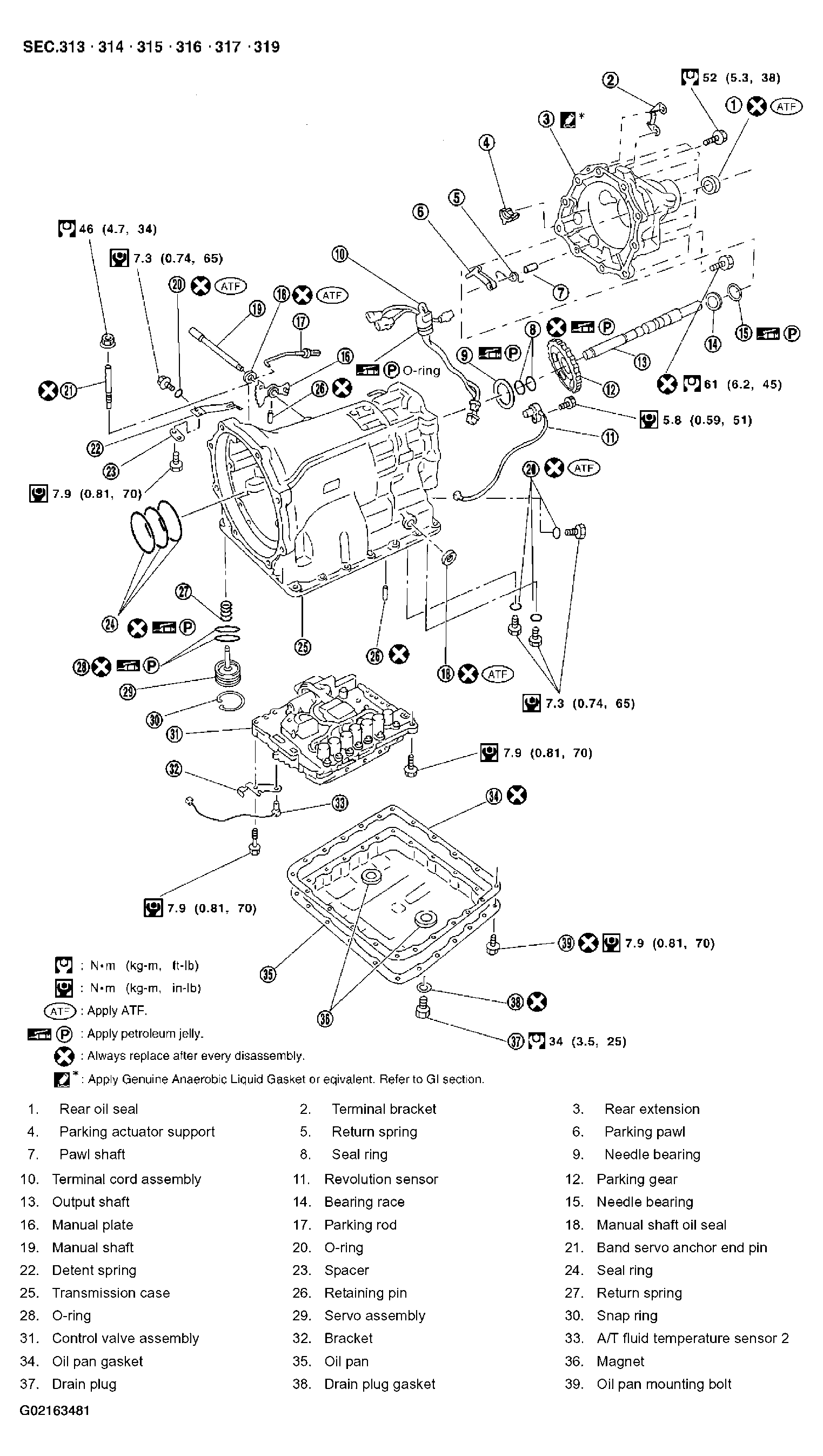

Fig 3: Removing/Installing A/T Assembly Attachments

Courtesy of NISSAN MOTOR CO., U.S.A.
