CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

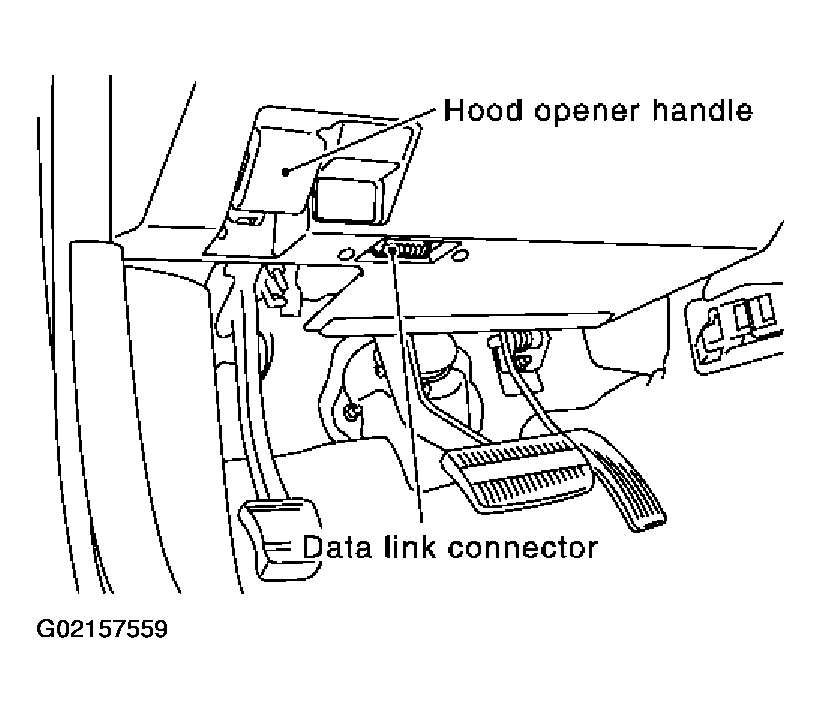

    Fig 1: Locating Data Link Connector
    G02157559Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON (Do not start engine).
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Main Menu Display
    G02157560Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

    If "A/T" is not indicated, go to, "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Identifying CONSULT-II Select System Display
    G02157561Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".

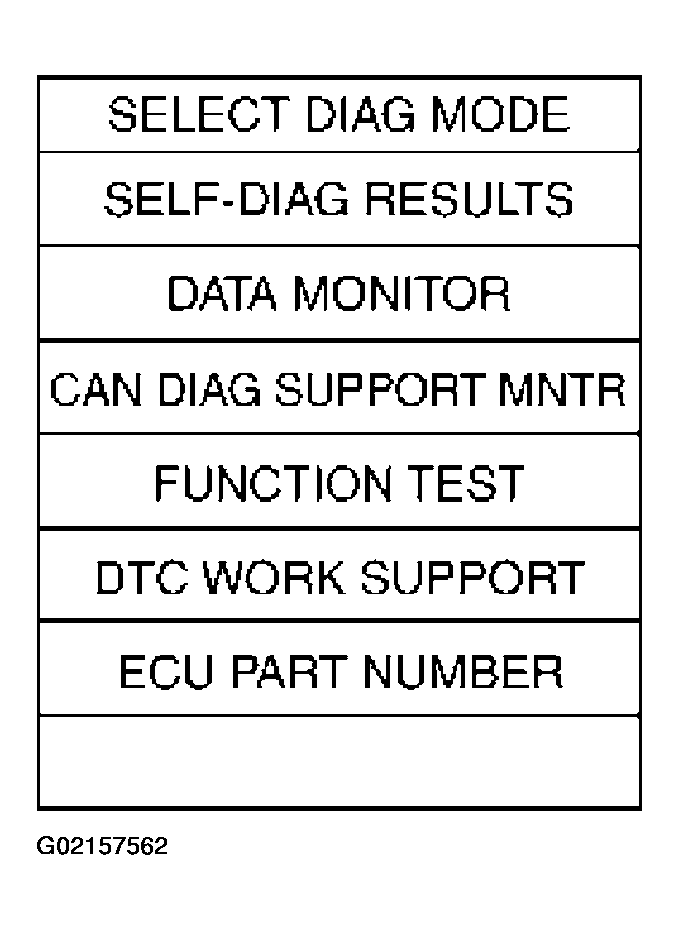

    Fig 4: Identifying CONSULT-II Select Diag Mode Display
    G02157562Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu.

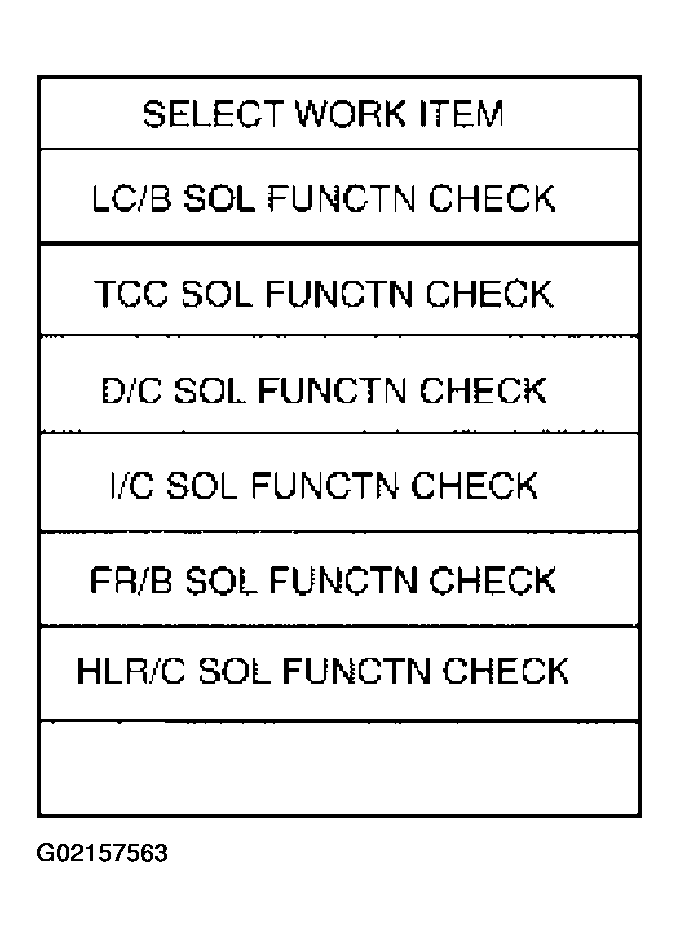

    Fig 5: Identifying CONSULT-II Select Work Item Display
    G02157563Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".
    Fig 6: Identifying CONSULT-II TCC SOL Function Display
    G02157564Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".
    Fig 7: Identifying CONSULT-II TCC SOL Function Display (Out Of Condition)
    G02157565Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".
    Fig 8: Identifying CONSULT-II TCC SOL Function Display (Testing)
    G02157566Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.
  12. Touch "YES" or "NO".
  13. CONSULT-II procedure is ended.
    Fig 9: Identifying CONSULT-II TCC SOL Function Display (NG)
    G02157567Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

Fig 10: Identifying CONSULT-II TCC SOL Function Display (OK)
G02157568Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Identifying CONSULT-II TCC SOL Function Display (NG)
G02157569Courtesy of NISSAN MOTOR CO., U.S.A.
