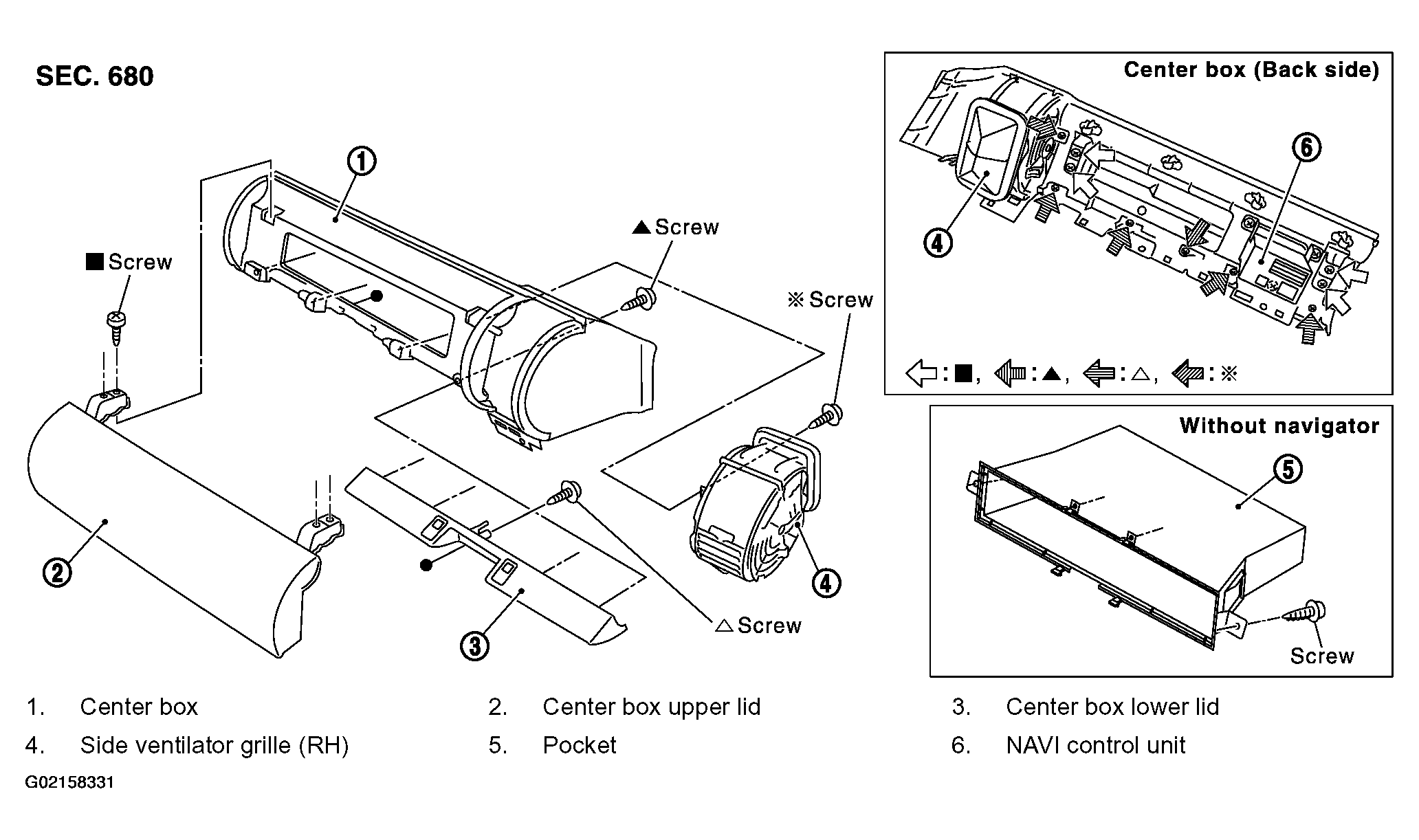

Center Box Assembly
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove screws and pawls, and remove side ventilator (RH).
- Remove screws and remove NAVI control unit.
- Remove screws and remove pocket (without NAVI).
- Remove screws and remove center box upper and lower lid.
