IPDM E/R Terminal Inspection

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hood ledge cover. Refer to REMOVAL AND INSTALLATION .
  2. Remove cowl top cover (left).
  3. Pull up to remove IPDM E/R cover A.

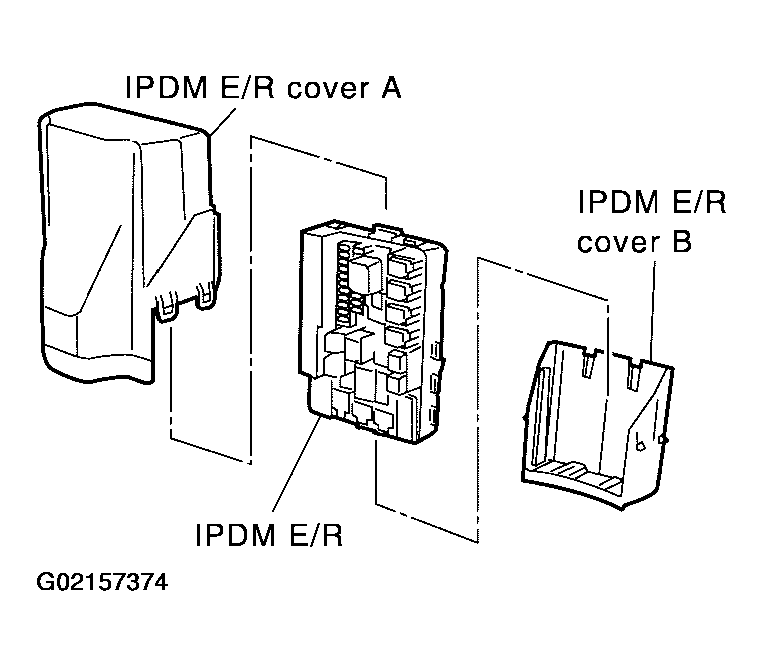

    Fig 1: Removing Covers Of IPDM E/R
    G02157374Courtesy of NISSAN MOTOR CO., U.S.A.
  4. While pushing pawl on back side of IPDM E/R cover "B" toward vehicle front to unlock, lift up IPDM E/R.

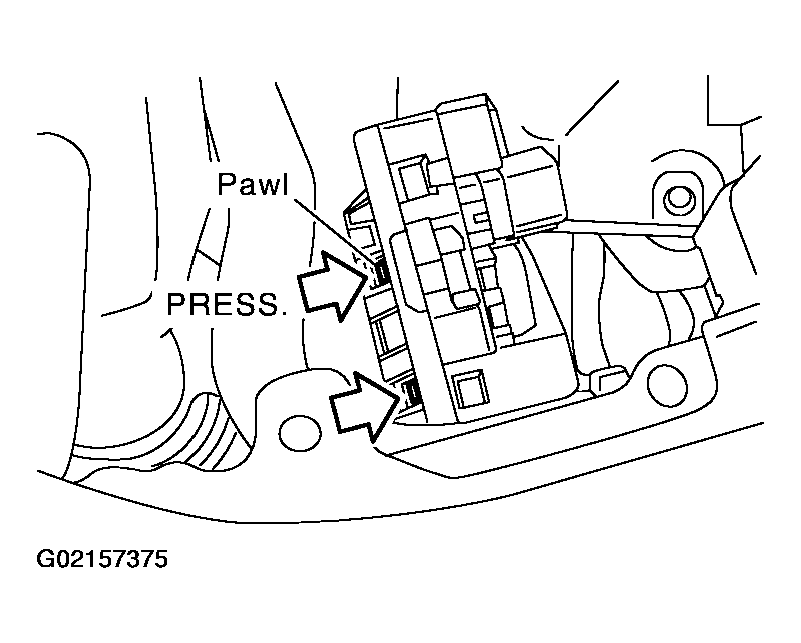

    Fig 2: Locating Pawl Pressing Direction
    G02157375Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Be sure to incline IPDM E/R when placing it. Then perform inspection on each terminal.

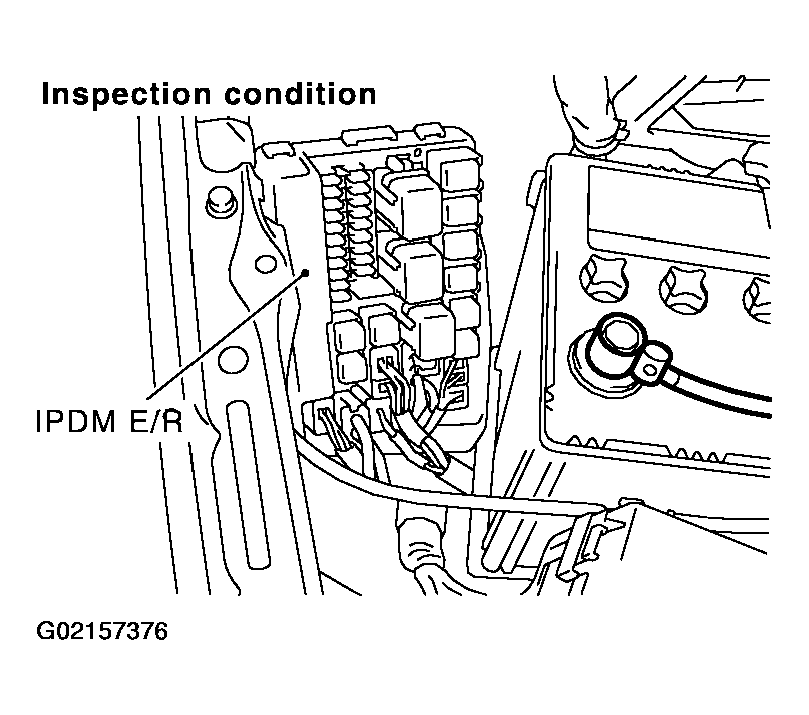

    Fig 3: Locating Inspection Condition Of IPDM E/R
    G02157376Courtesy of NISSAN MOTOR CO., U.S.A.
