CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector.

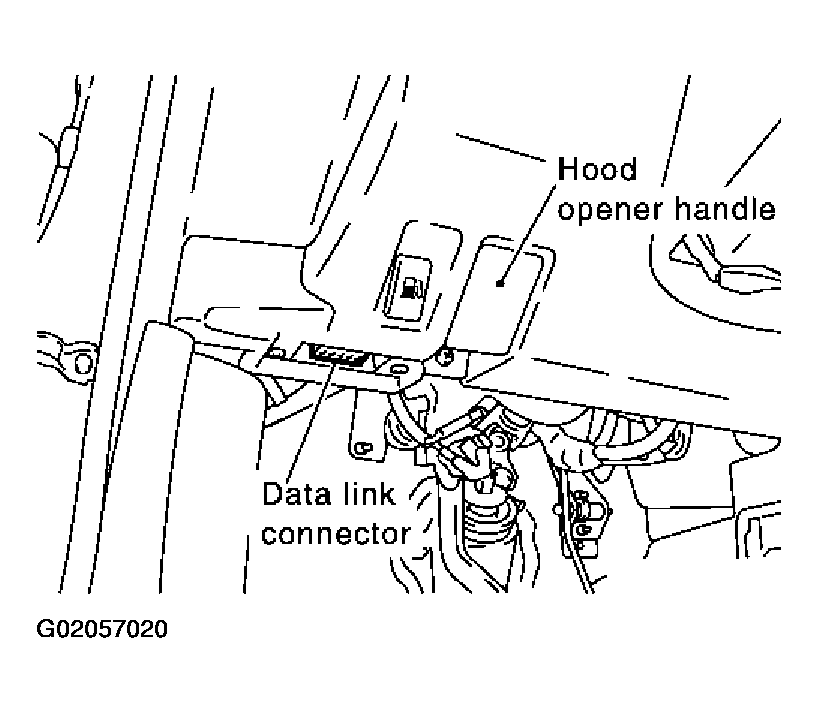

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display Screen - Touch START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: CONSULT-II Display Screen - Touch BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DOOR LOCK".
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT"

Fig 4: CONSULT-II Display Screen - Touch DOOR LOCK
Courtesy of NISSAN MOTOR CO., U.S.A.
