Check Fuel Level Sensor Unit and Pump (Main) Harness
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Check the continuity following terminals.

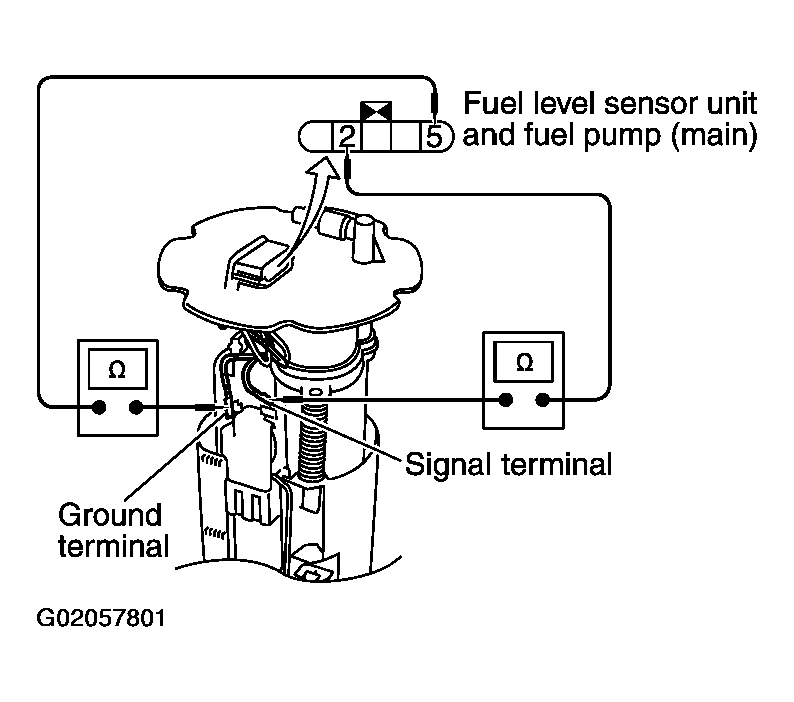

Fig 2: Identifying Signal Terminal And Ground Terminal Of Fuel Level Sensor Unit And Pump (Main) Harness
Courtesy of NISSAN MOTOR CO., U.S.A.
- If the results of check is NG, replace fuel pump assembly.
- If the results of check is OK, replace fuel level sensor unit.
NOTE: When replace fuel level sensor unit, refer to FUEL LEVEL SENSOR .
