Examples Of Current-Location Mark Displacement

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle is driven in the following manner, an error will occur in the vehicle's current location display. If correct location has not been restored after driving the vehicle for a while, perform location correction.

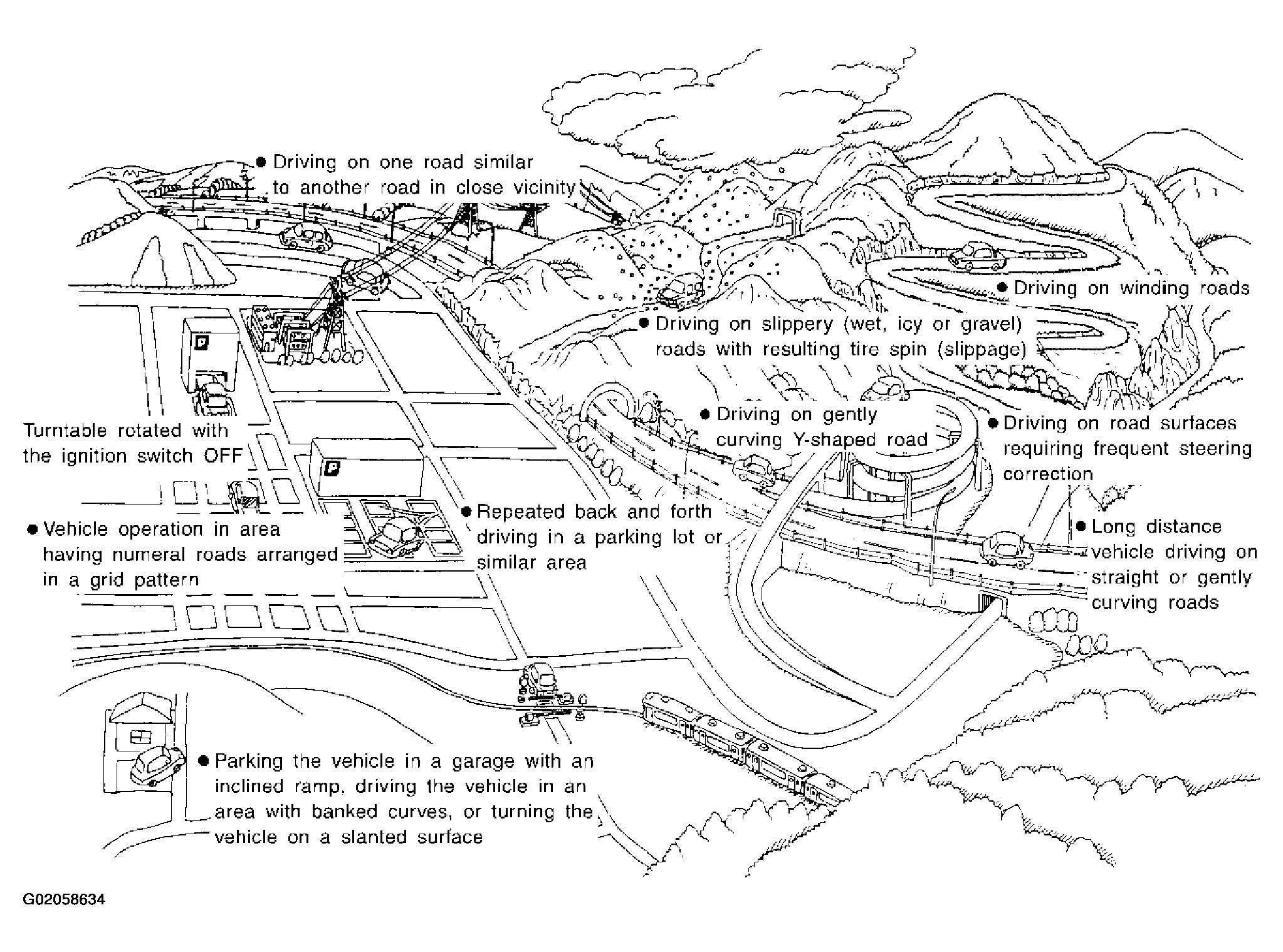

Fig 1: Identifying Examples Of Current-Location Mark Displacement

Courtesy of NISSAN MOTOR CO., U.S.A.

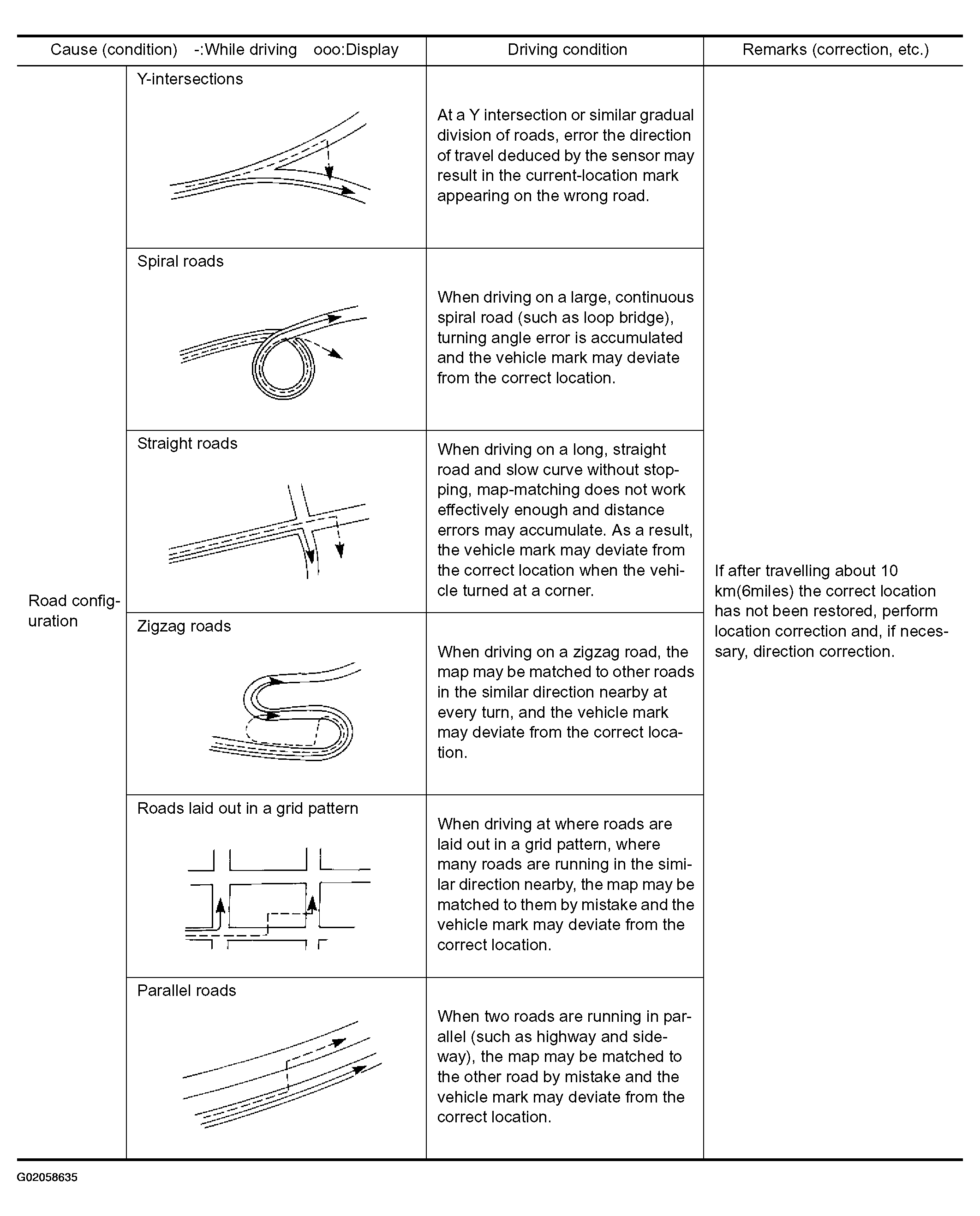

Fig 2: Identifying NAVIGATION SYSTEM Driving Conditions (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

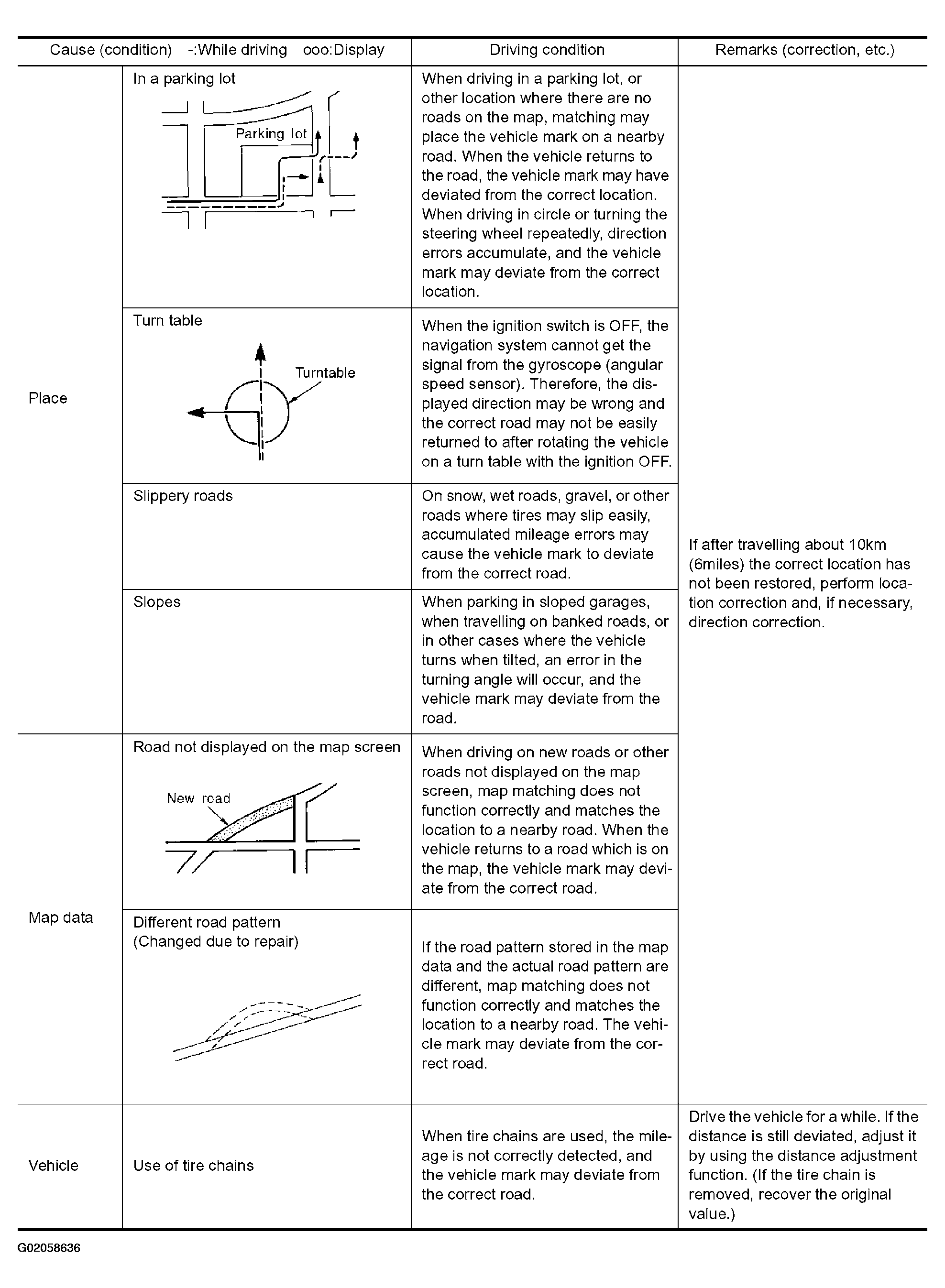

Fig 3: Identifying NAVIGATION SYSTEM Driving Conditions (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

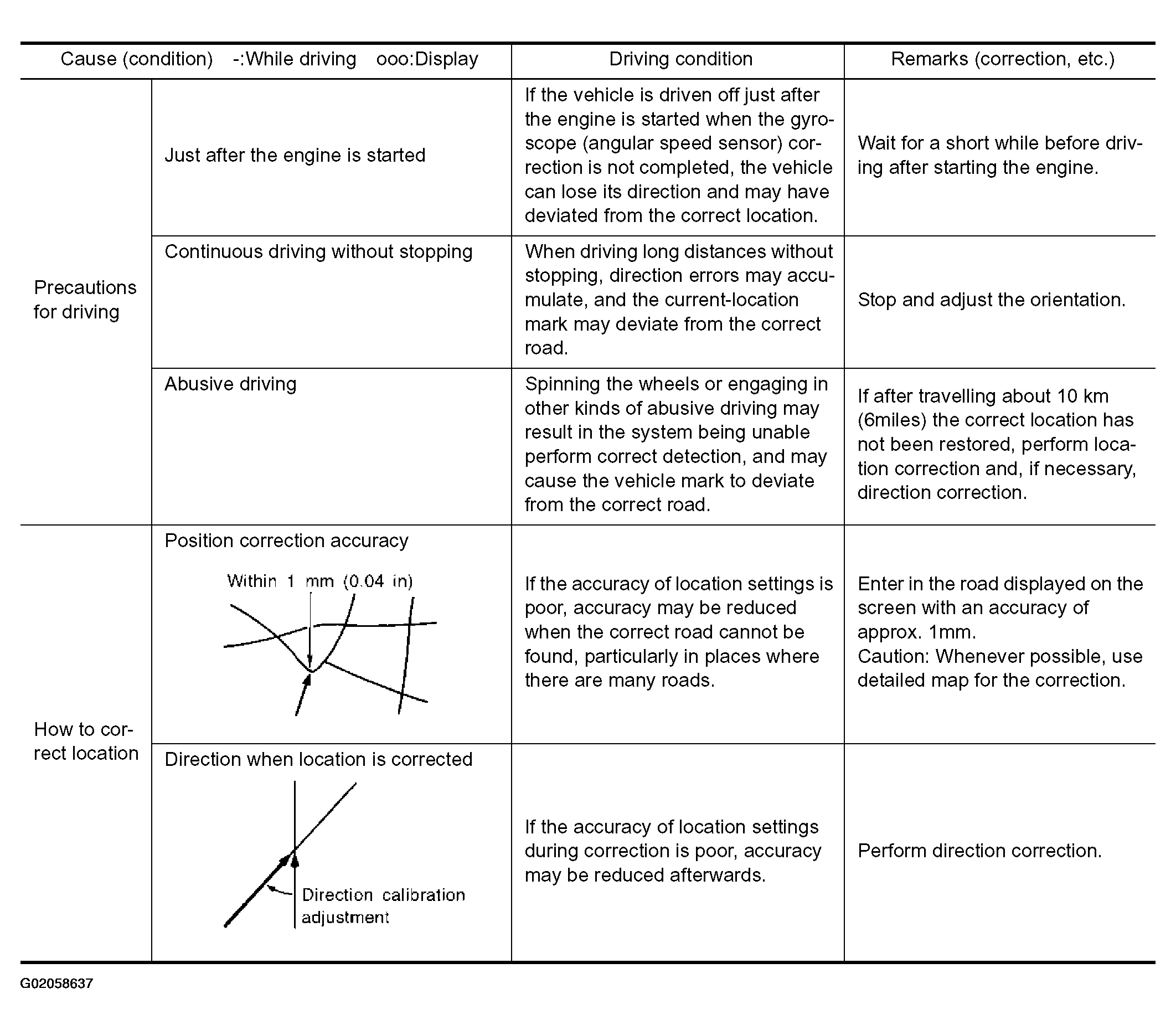

Fig 4: Identifying NAVIGATION SYSTEM Driving Conditions (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
