Steering Wheel Audio Control Switch Does Not Operate

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE CHECK
1. Disconnect steering wheel audio control switch connector.
2. Check resistance steering wheel audio control switch. Refer to "Steering Wheel Audio Control Switch Resistance Check ".
  1. Resistance value is OK?
OK or NG

OK : GO TO 2.

NG : Replace steering wheel audio control switch.
STEERING WHEEL AUDIO CONTROL SWITCH CIRCUIT CHECK
1. Disconnect audio unit connector.
2. Check continuity between audio unit harness connector M39 and combination switch (spiral cable) harness connector M23.

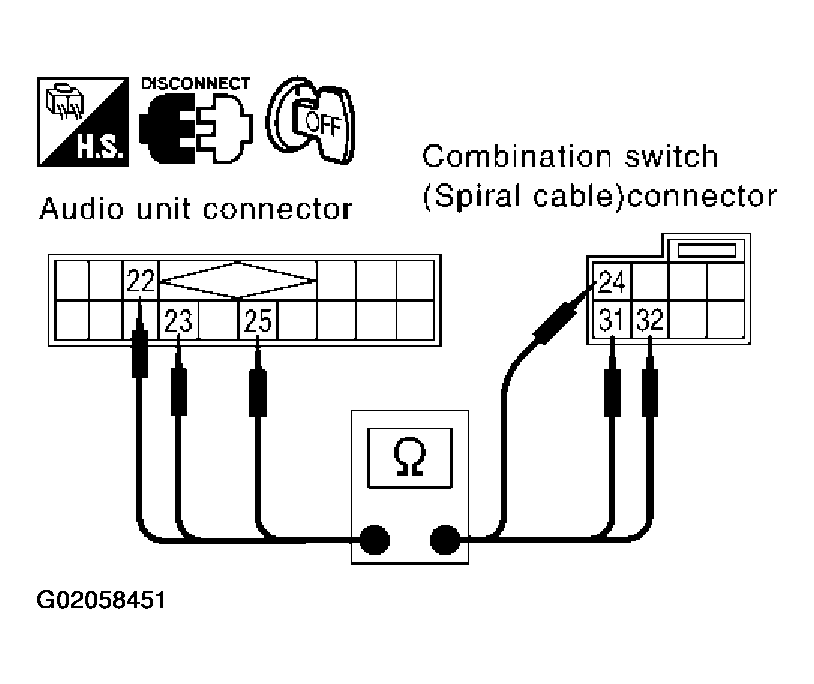

  Fig 1: Checking Continuity Between Audio Unit And Combination Switch (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Checking Continuity Between Audio Unit And Combination Switch (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK : Check combination switch (spiral cable).

NG : Replace audio unit.
