Terminals and Reference Value for Audio Unit for Base System

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

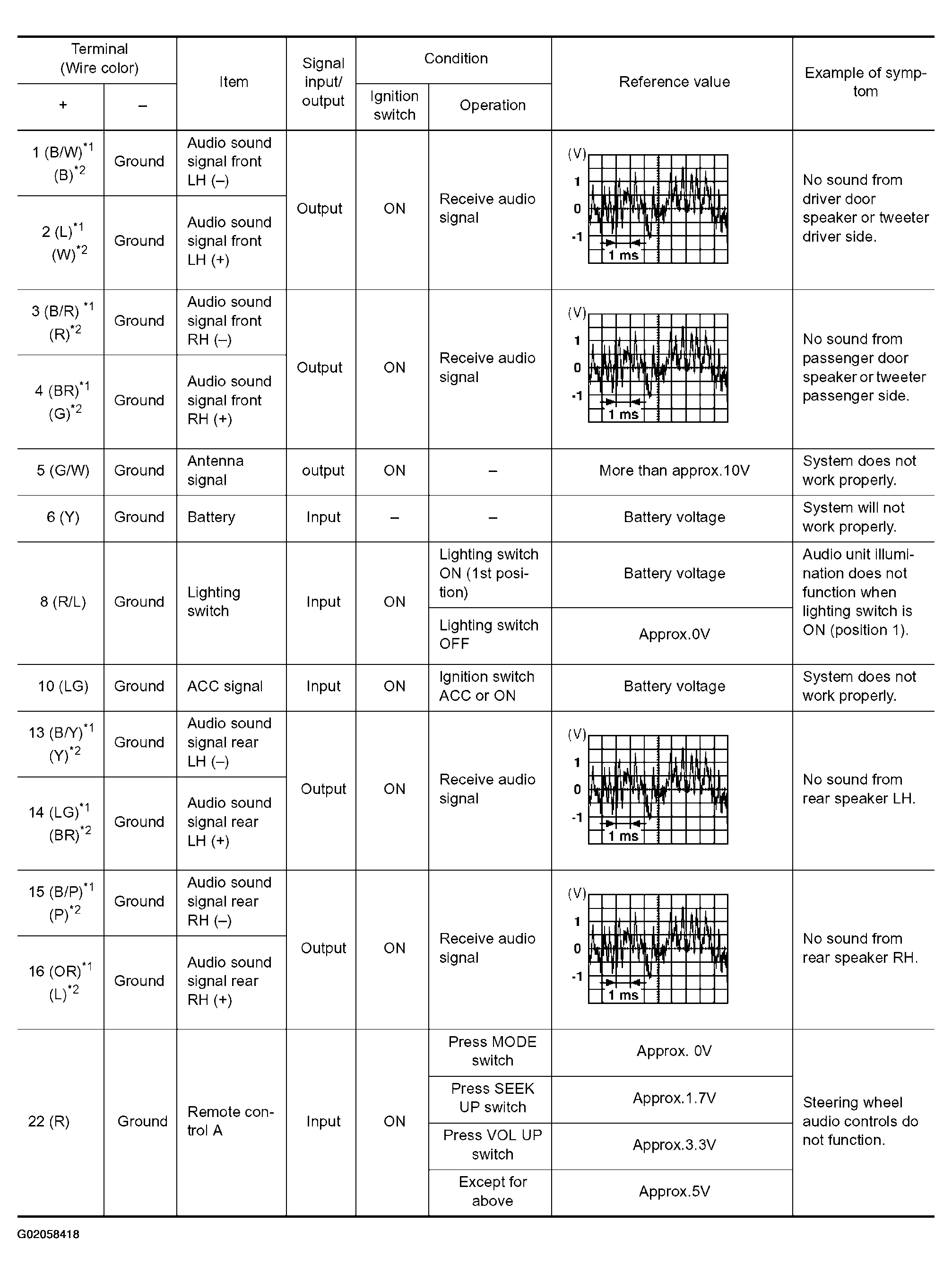

Fig 1: Identifying Terminal Reference Value Chart Of Audio Unit For Base System (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

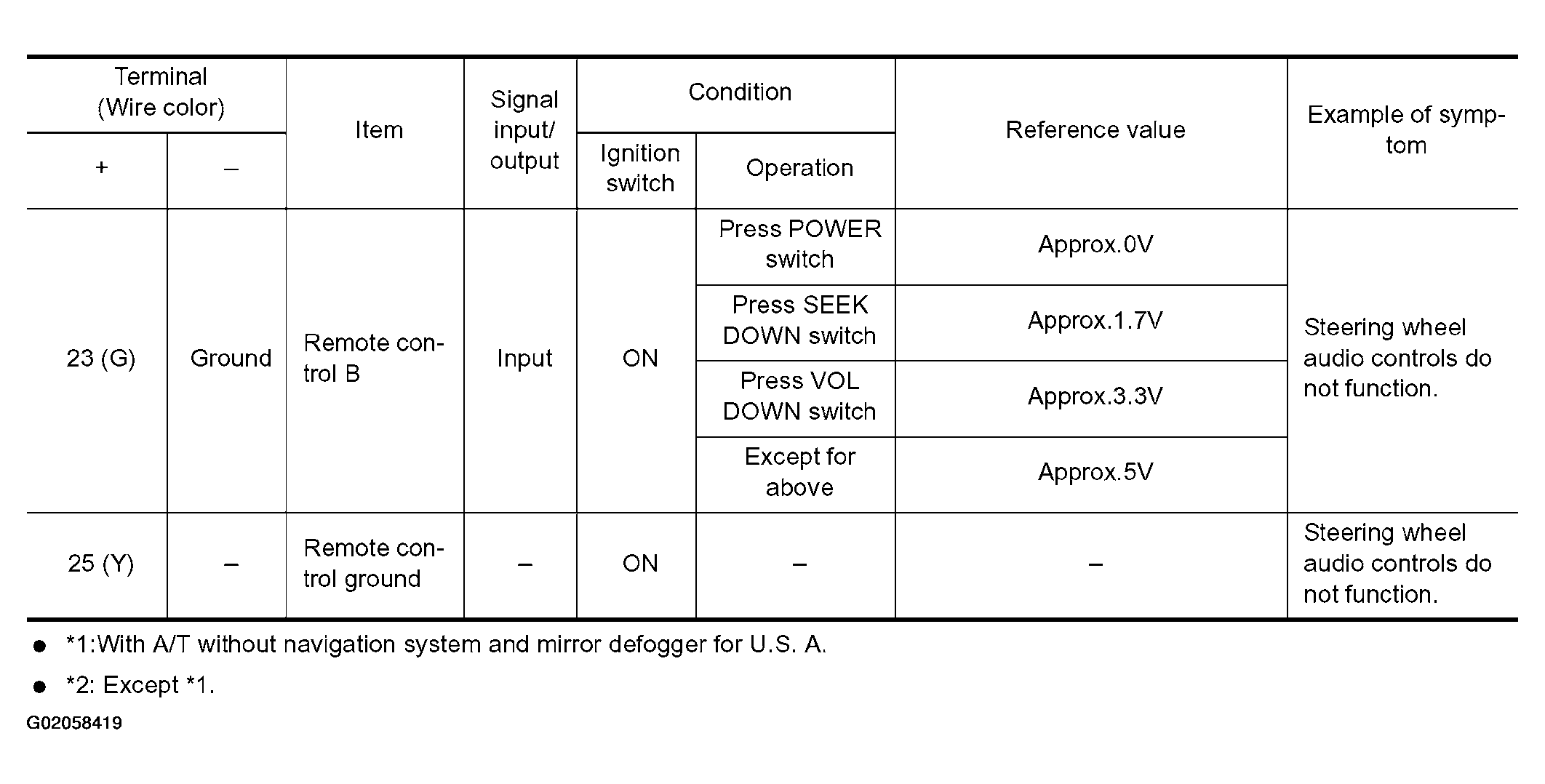

Fig 2: Identifying Terminal Reference Value Chart Of Audio Unit For Base System (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*1:With A/T without navigation system and mirror defogger for U.S.A.
*2: Except *1.
