Symptom Chart

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

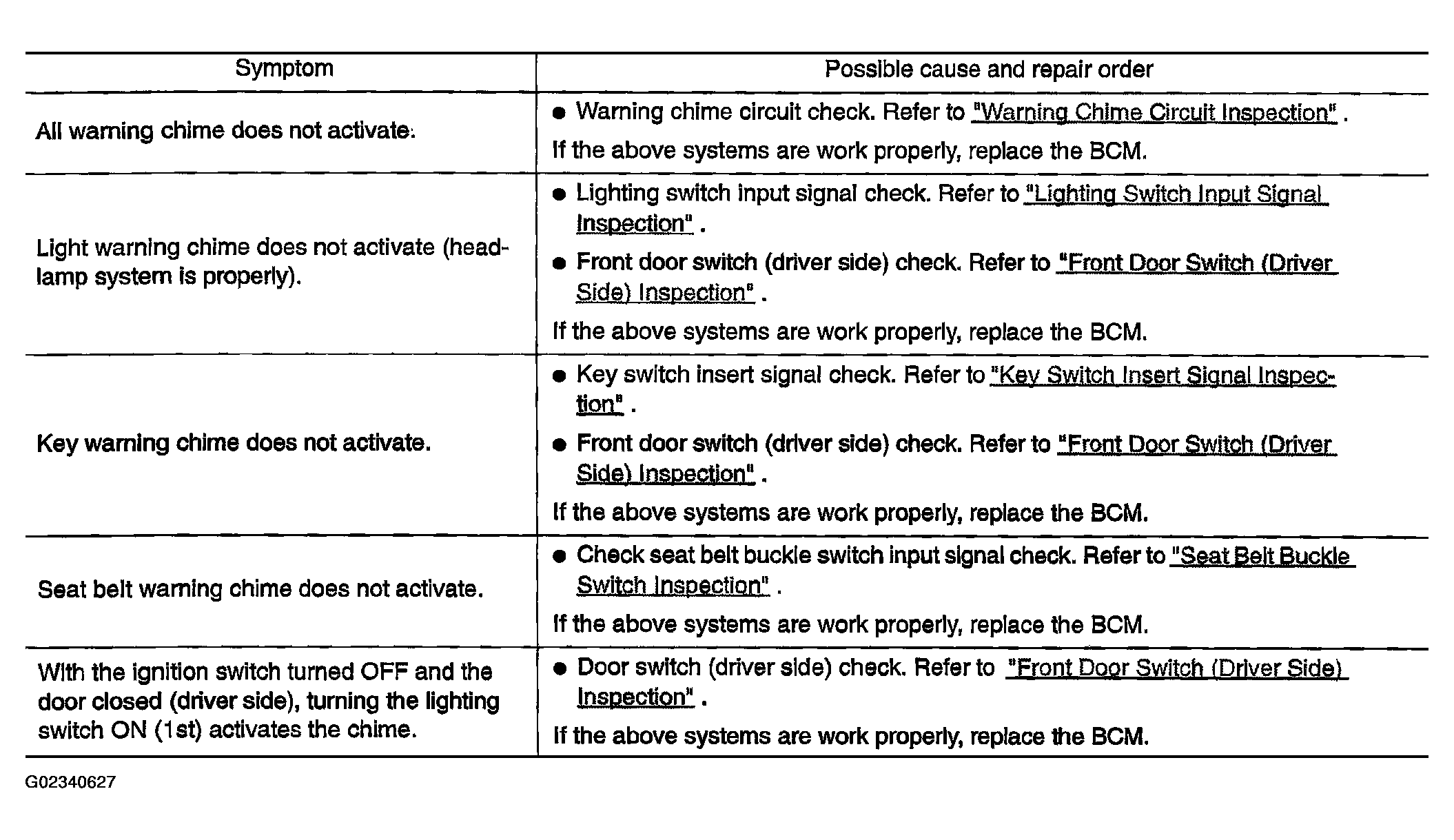

Fig 1: Warning Chime Symptom Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
