Multiple Switch
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

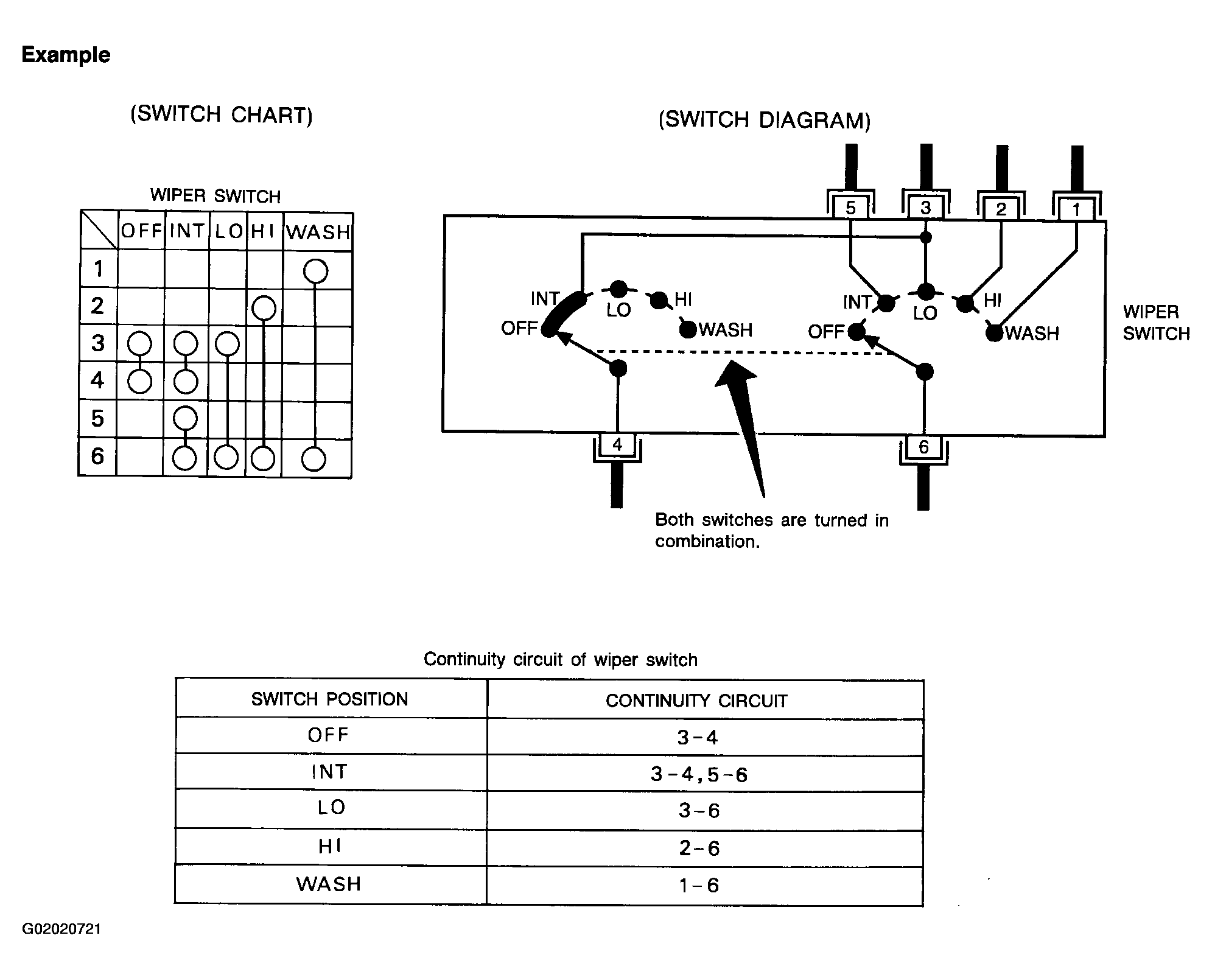

The continuity of multiple switch is described in two ways as shown below.
- The switch chart is used in schematic diagrams.
- The switch diagram is used in Circuit Diagrams.
Courtesy of NISSAN MOTOR CO., U.S.A.
