Wiring Diagram-D/LOCK

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

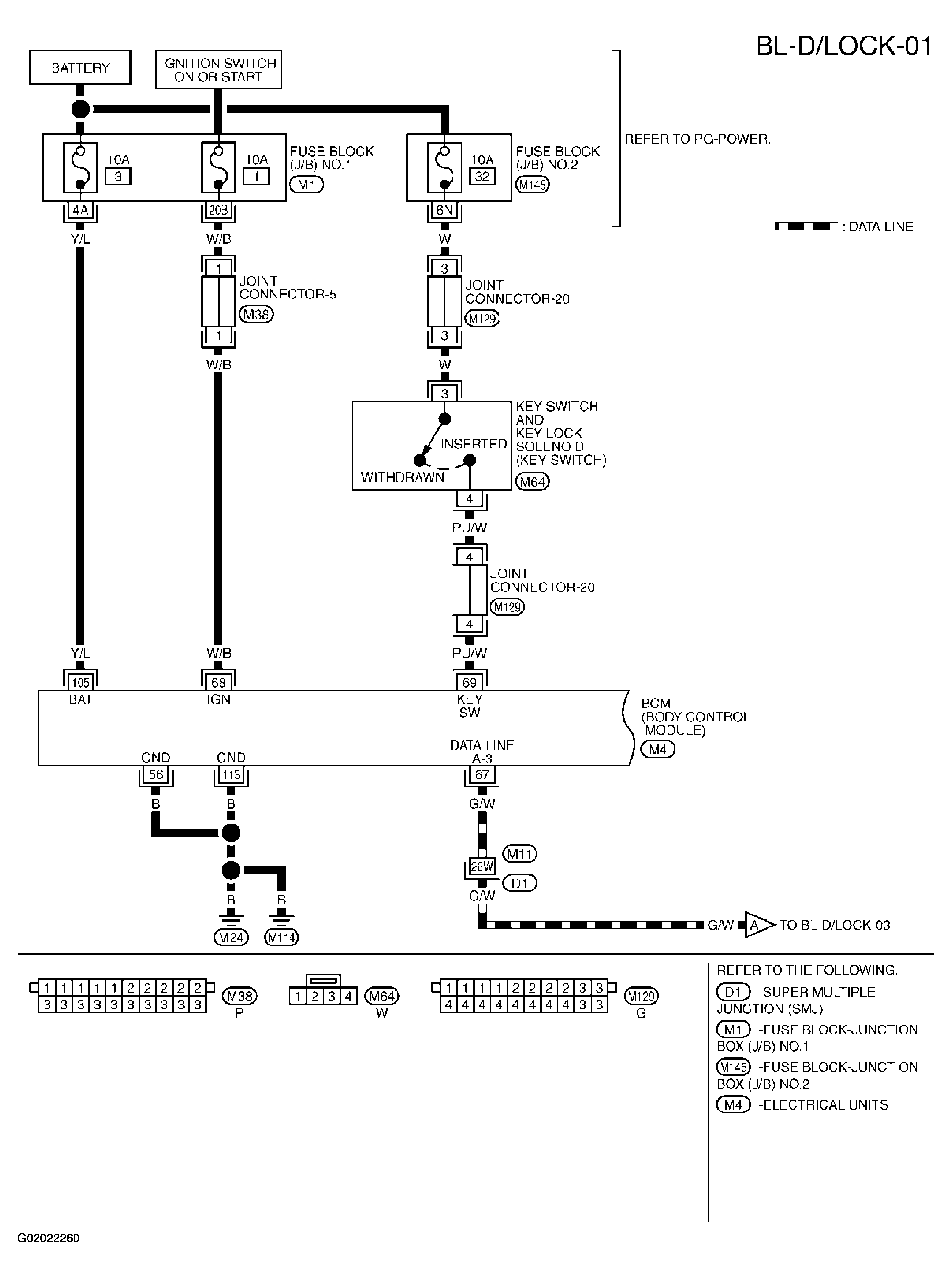

Fig 1: Wiring Diagram - BL-D/LOCK-01

G02022260

Courtesy of NISSAN MOTOR CO., U.S.A.

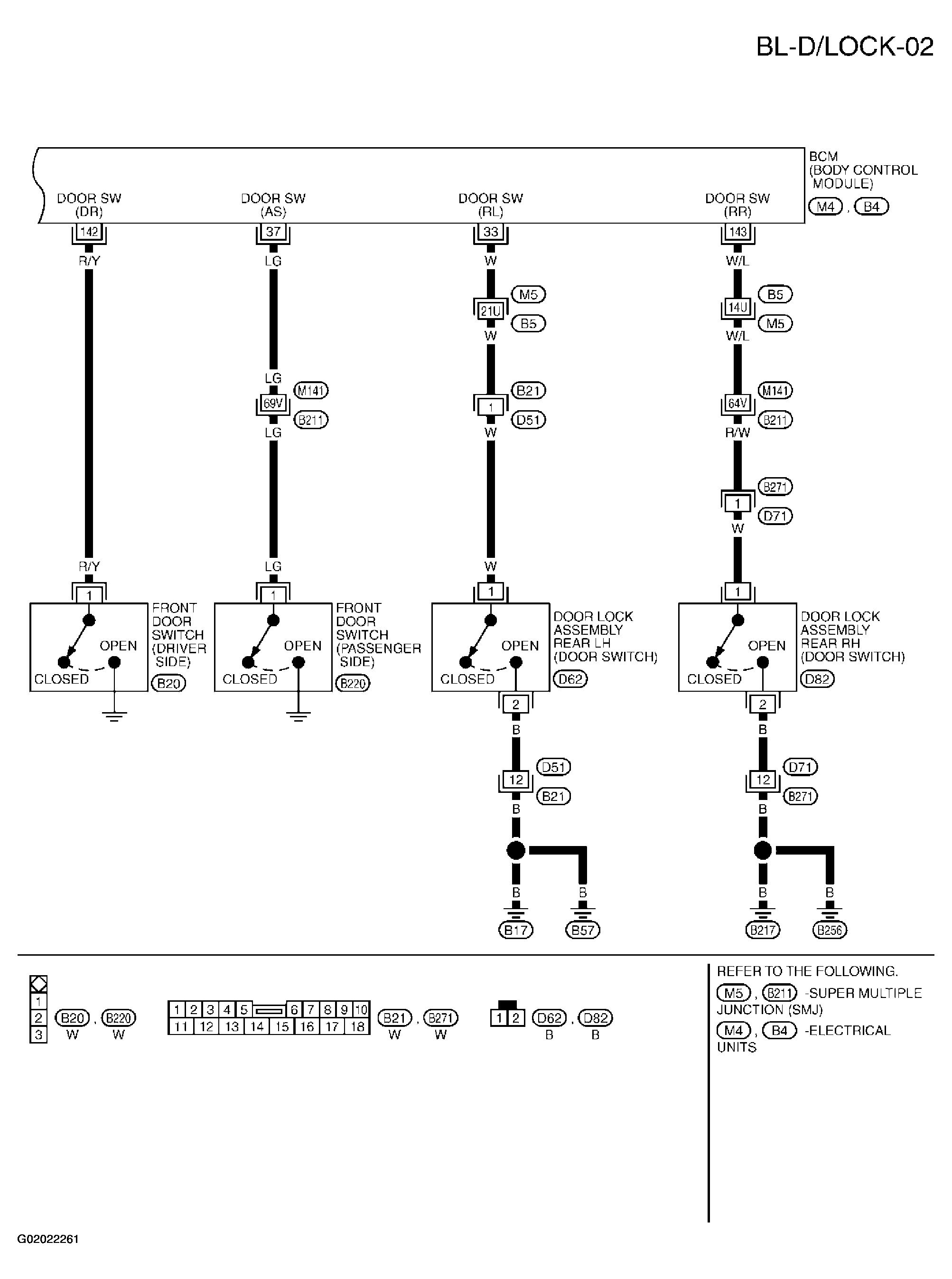

Fig 2: Wiring Diagram - BL-D/LOCK-02

G02022261

Courtesy of NISSAN MOTOR CO., U.S.A.

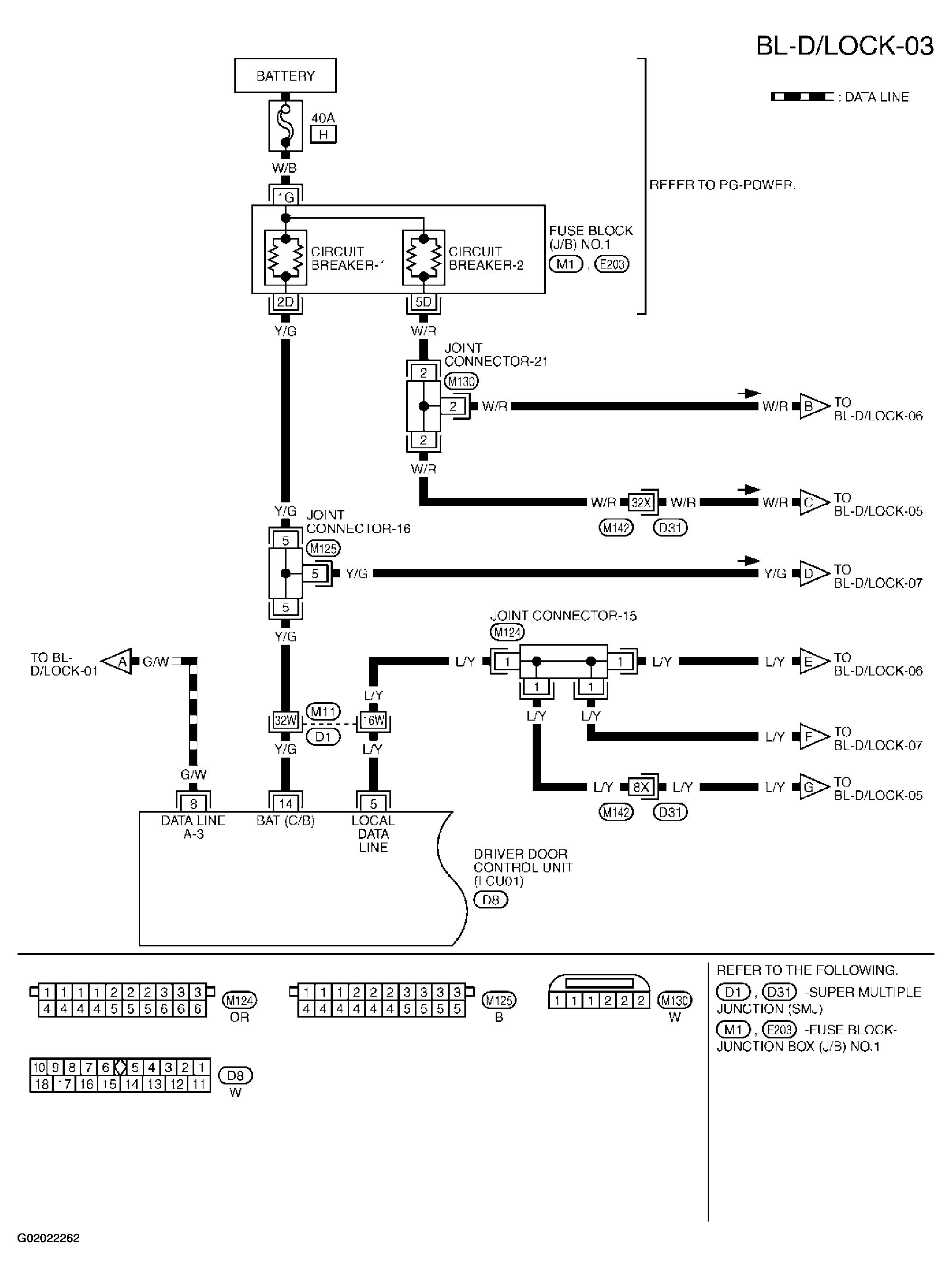

Fig 3: Wiring Diagram - BL-D/LOCK-03

G02022262

Courtesy of NISSAN MOTOR CO., U.S.A.

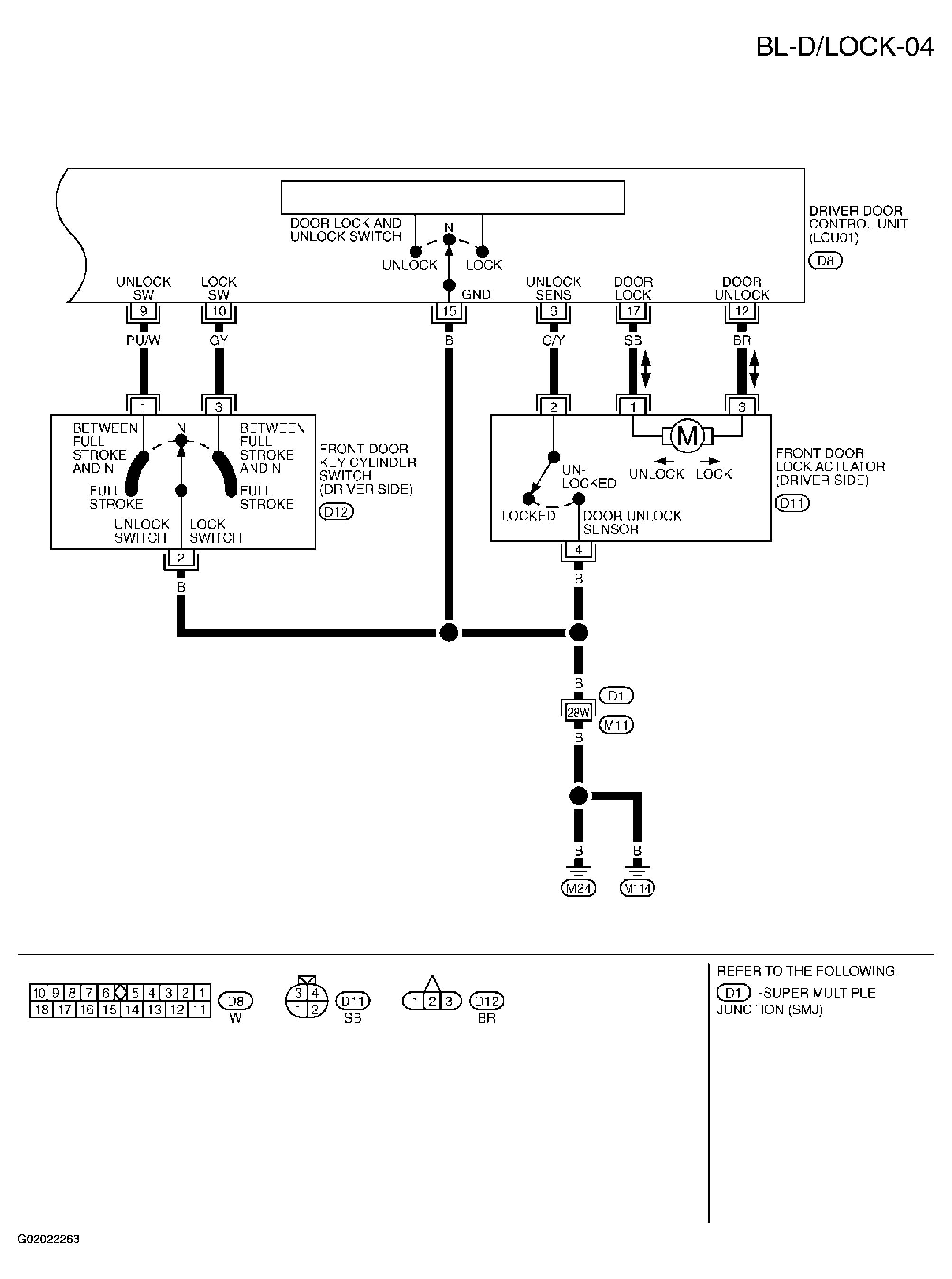

Fig 4: Wiring Diagram - BL-D/LOCK-04

G02022263

Courtesy of NISSAN MOTOR CO., U.S.A.

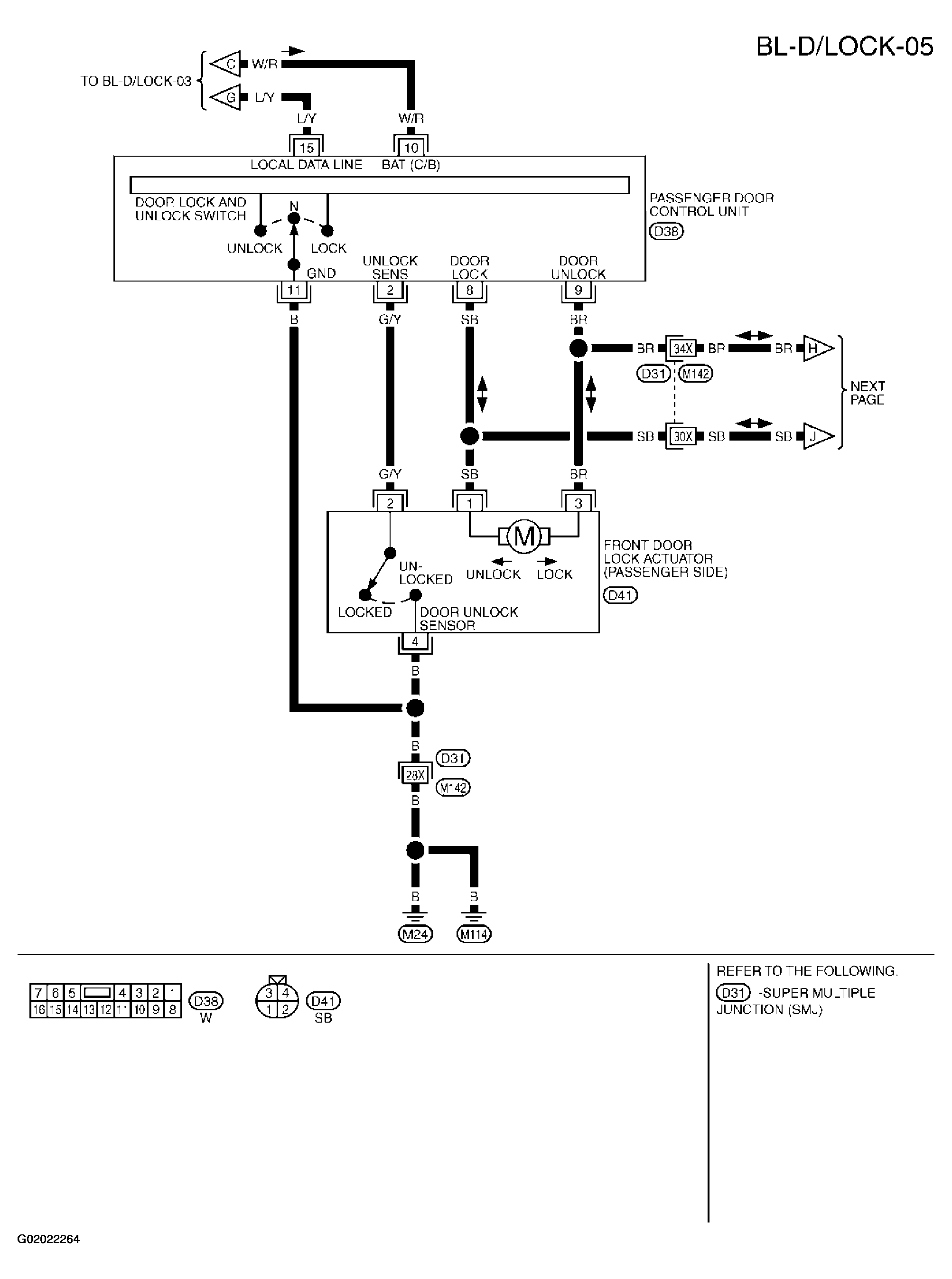

Fig 5: Wiring Diagram - BL-D/LOCK-05

G02022264

Courtesy of NISSAN MOTOR CO., U.S.A.

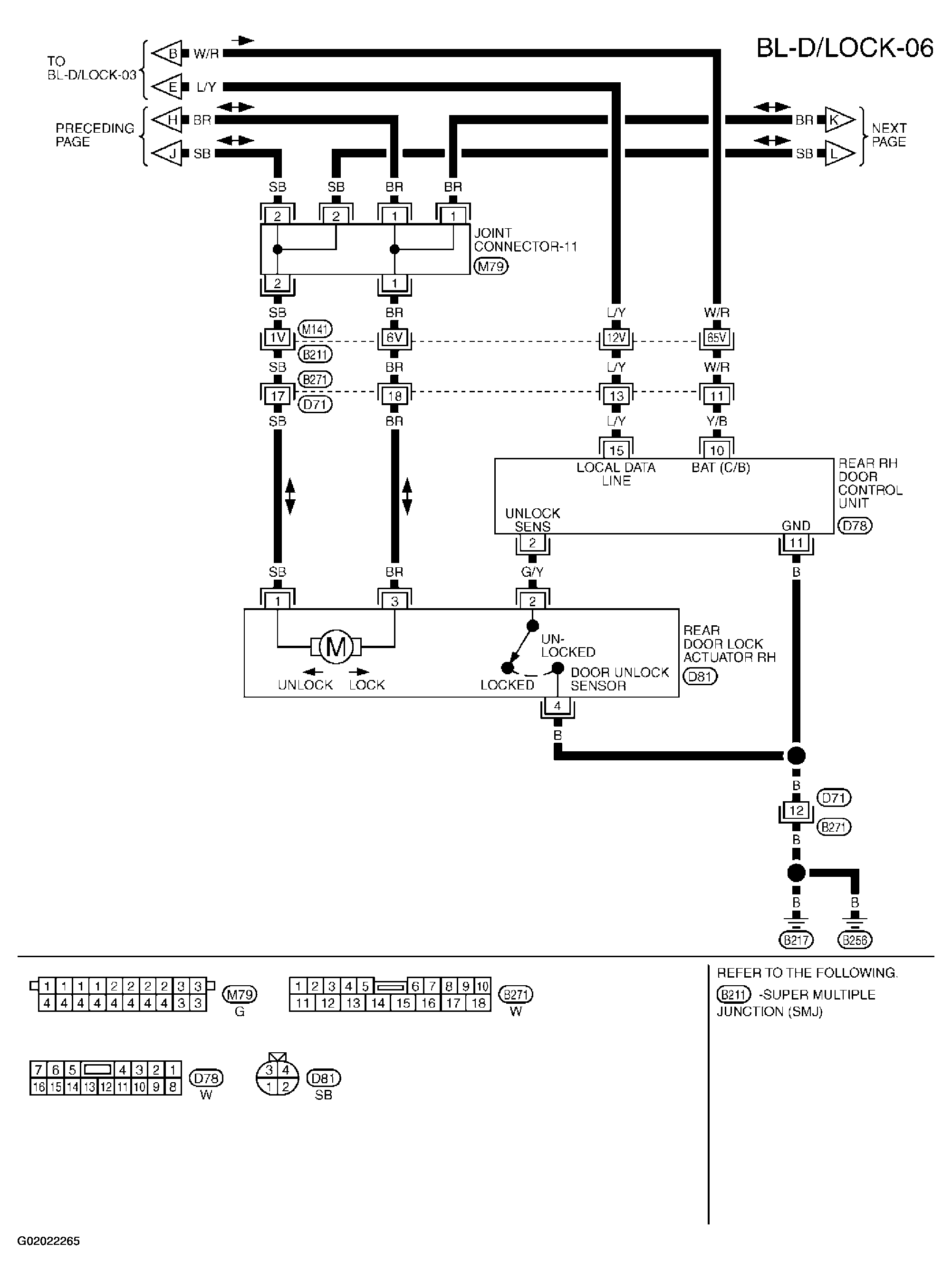

Fig 6: Wiring Diagram - BL-D/LOCK-06

G02022265

Courtesy of NISSAN MOTOR CO., U.S.A.

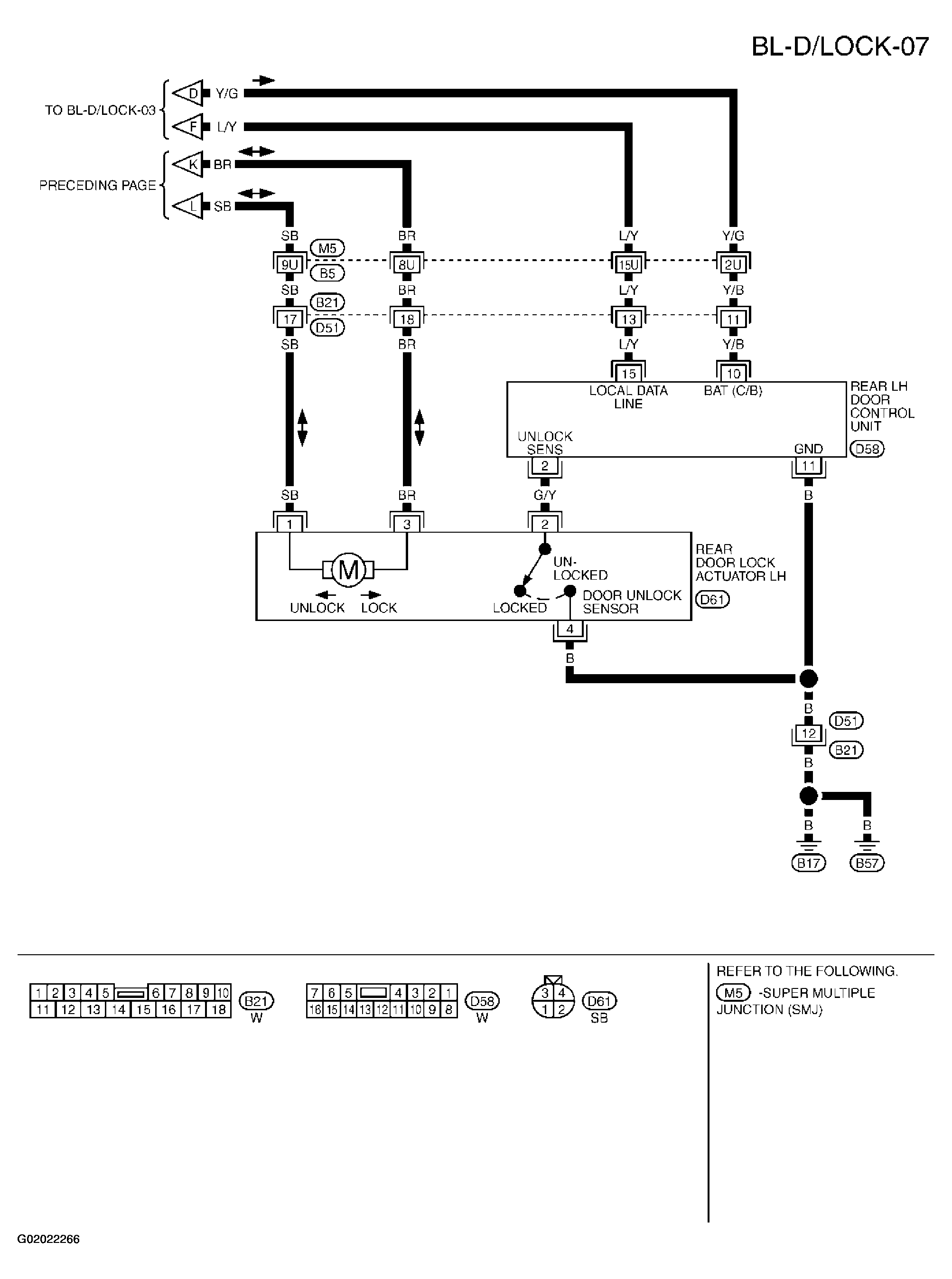

Fig 7: Wiring Diagram - BL-D/LOCK-07

G02022266

Courtesy of NISSAN MOTOR CO., U.S.A.
