Switches And Their Control Function

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying System Description Of Switches And Their Control Function

Courtesy of NISSAN MOTOR CO., U.S.A.

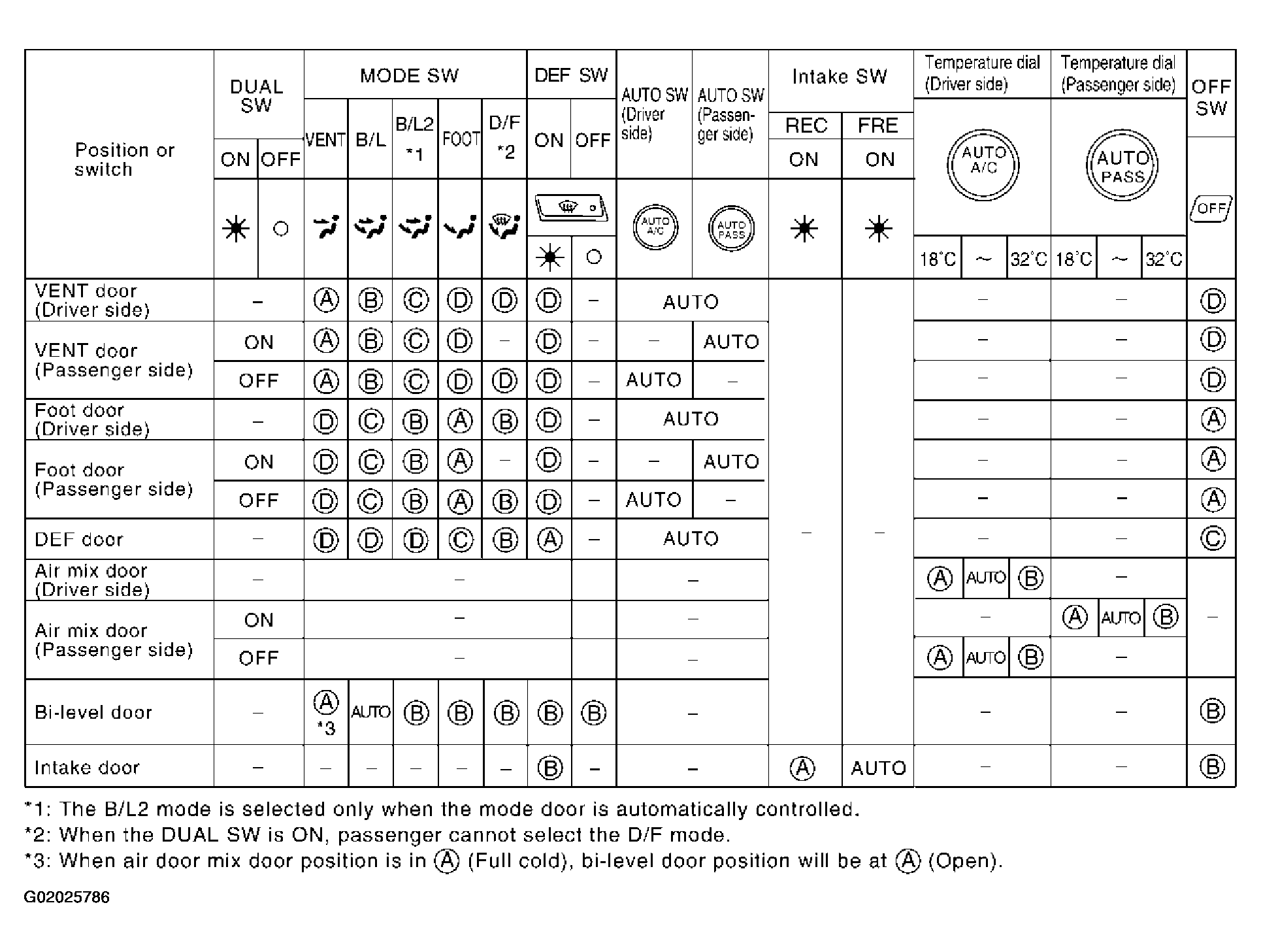

Fig 2: Identifying Switch Control Function Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
