Intake Sensor

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting intake sensor harness connector, measure resistance between terminals 32 and 36 at sensor harness side, using the table below.

Fig 1: Temperature Resistance Table Of Intake Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

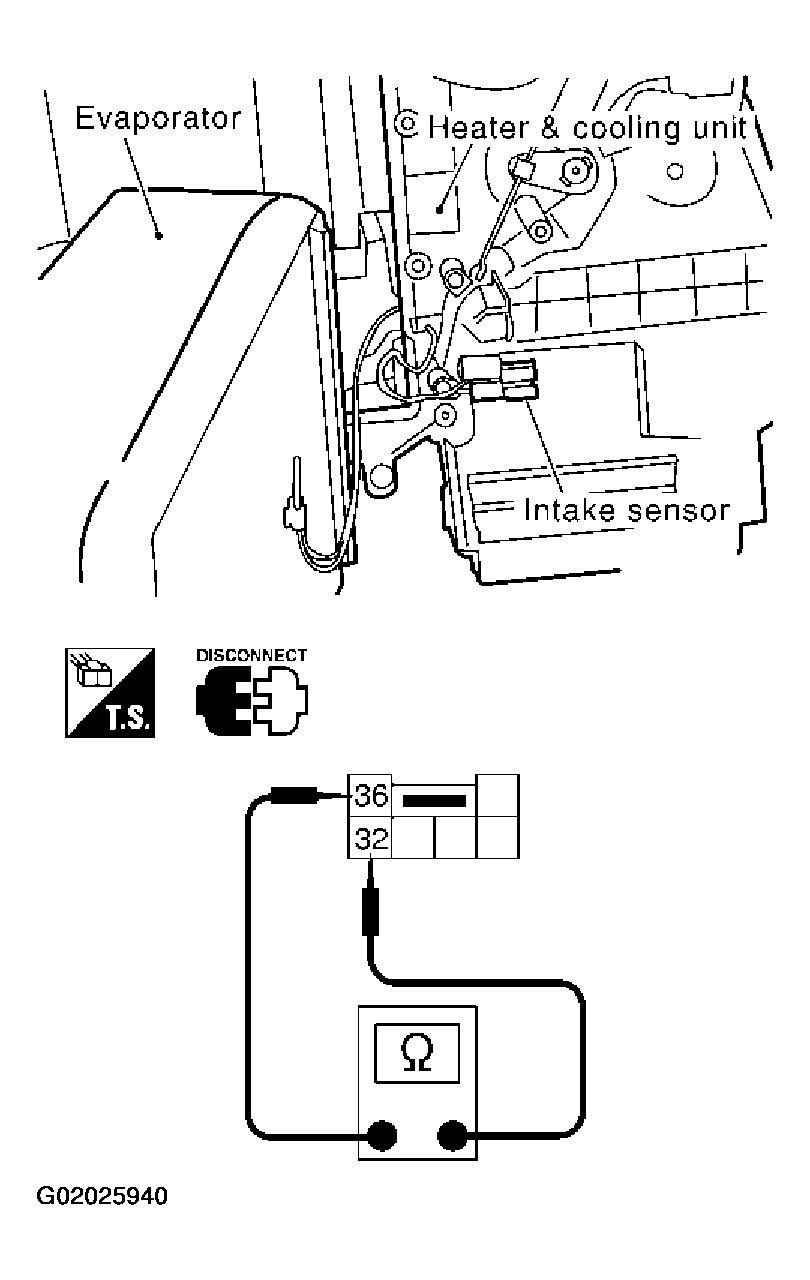

Fig 2: Disconnecting Intake Sensor Harness Connector And Measuring Resistance Of Intake Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace intake sensor.
