LAN System Circuit: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Mode door motor, intake door motor and/or air mix door motor does not operate normally.

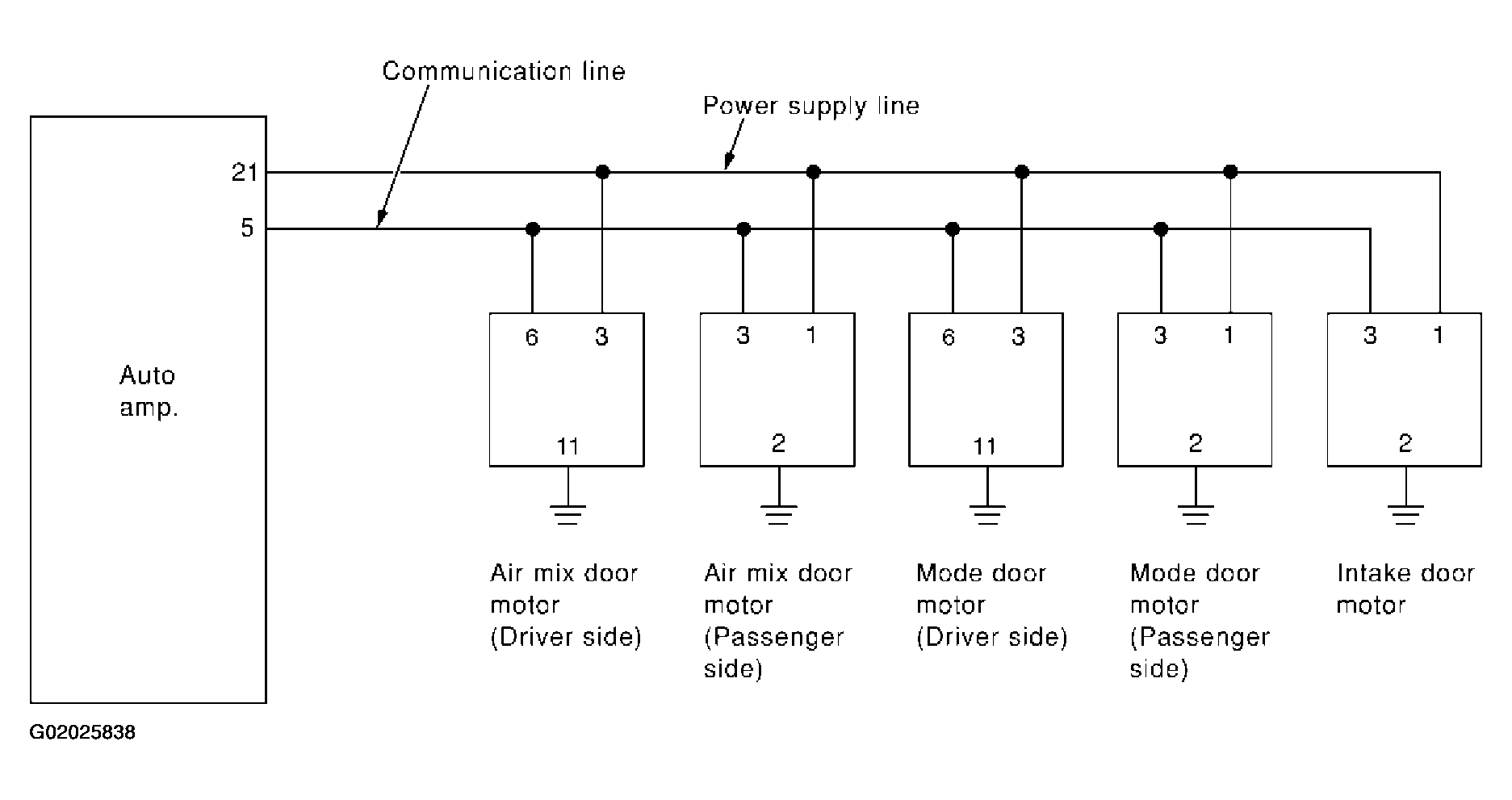

Fig 1: Identifying LAN System Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
