Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

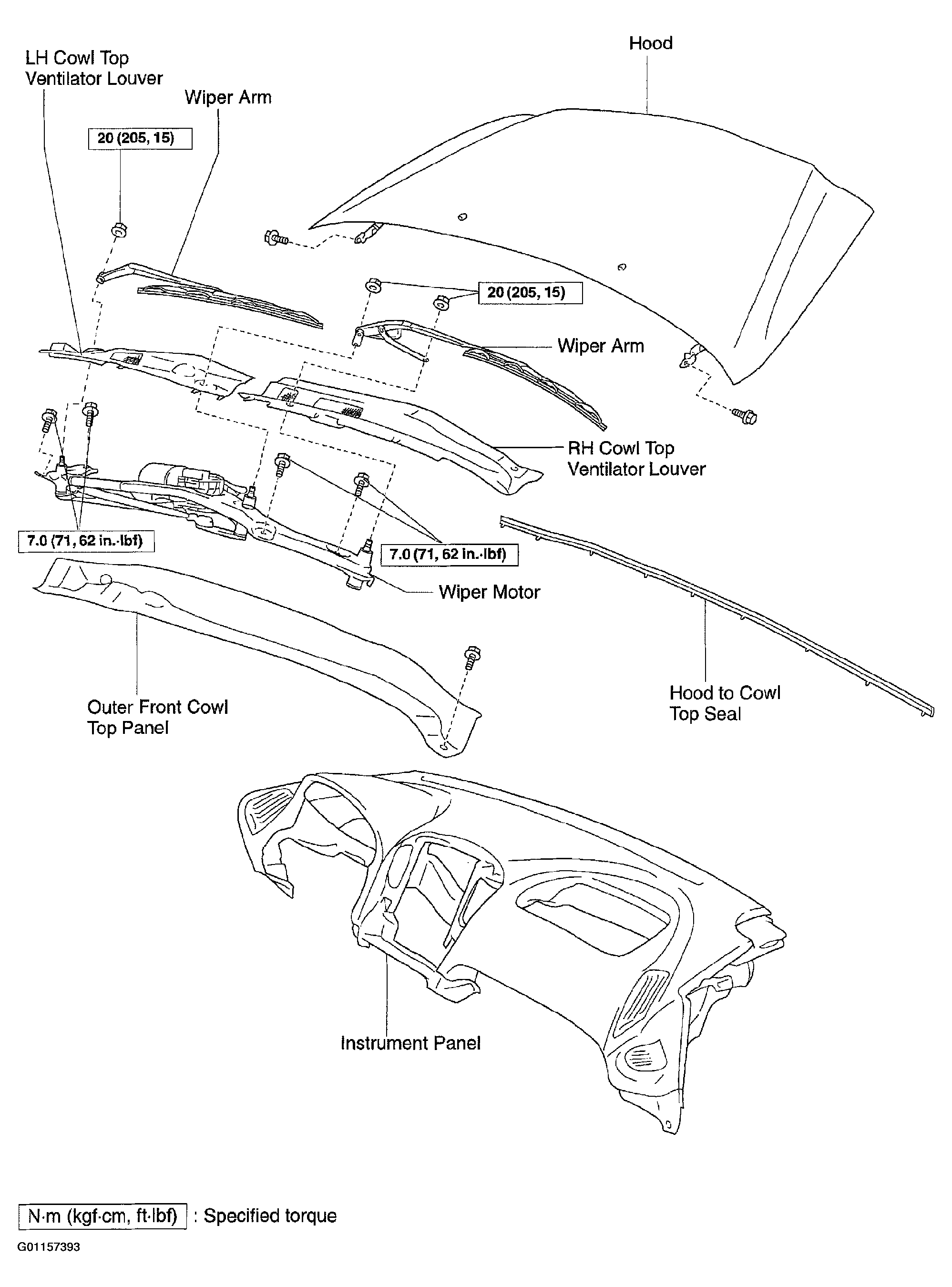

Fig 1: Removing/Installing Outer Front Cowl Top Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

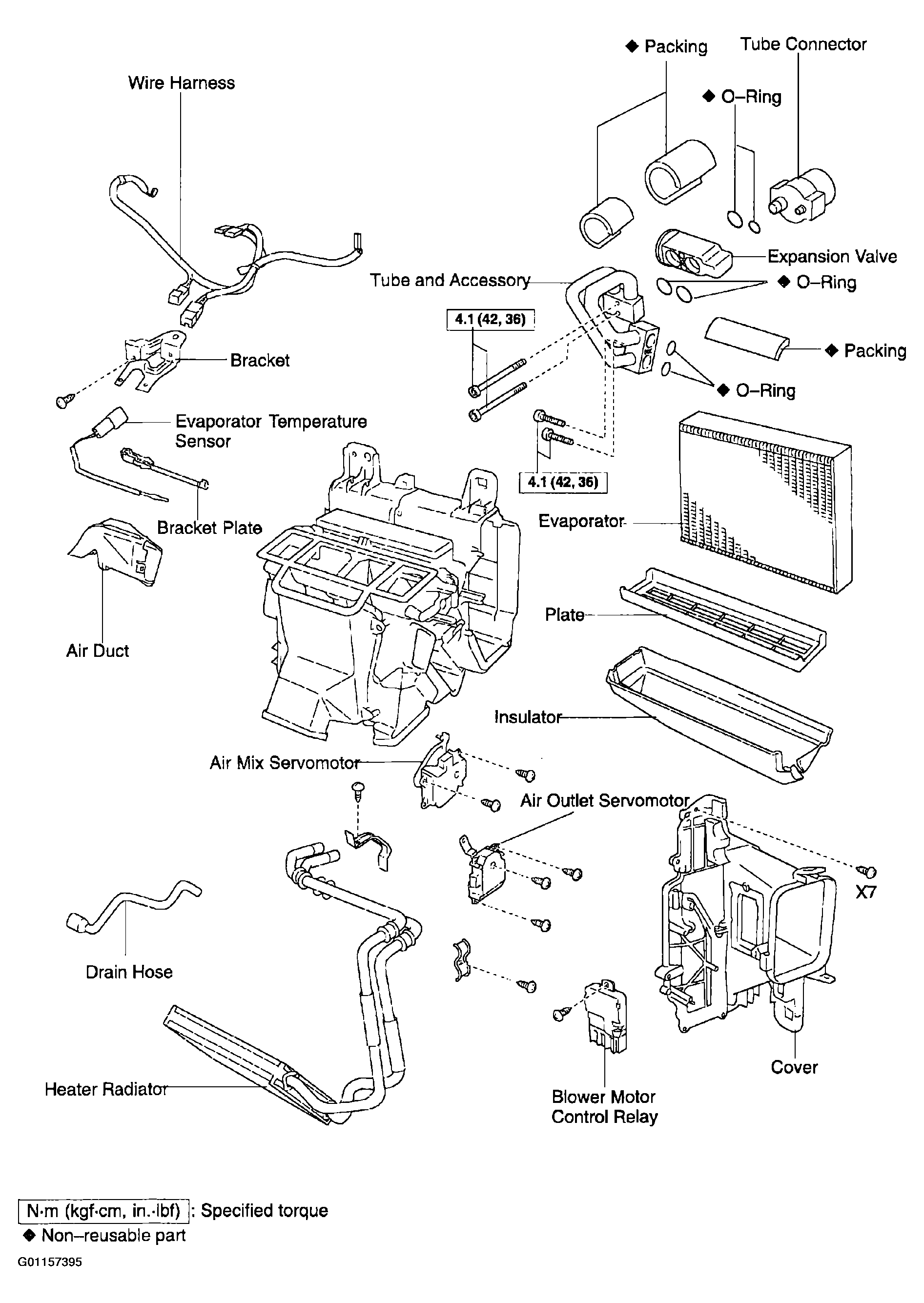

Fig 2: Exploded view of air conditioning unit components And Torque Specifications (1 Of 2)

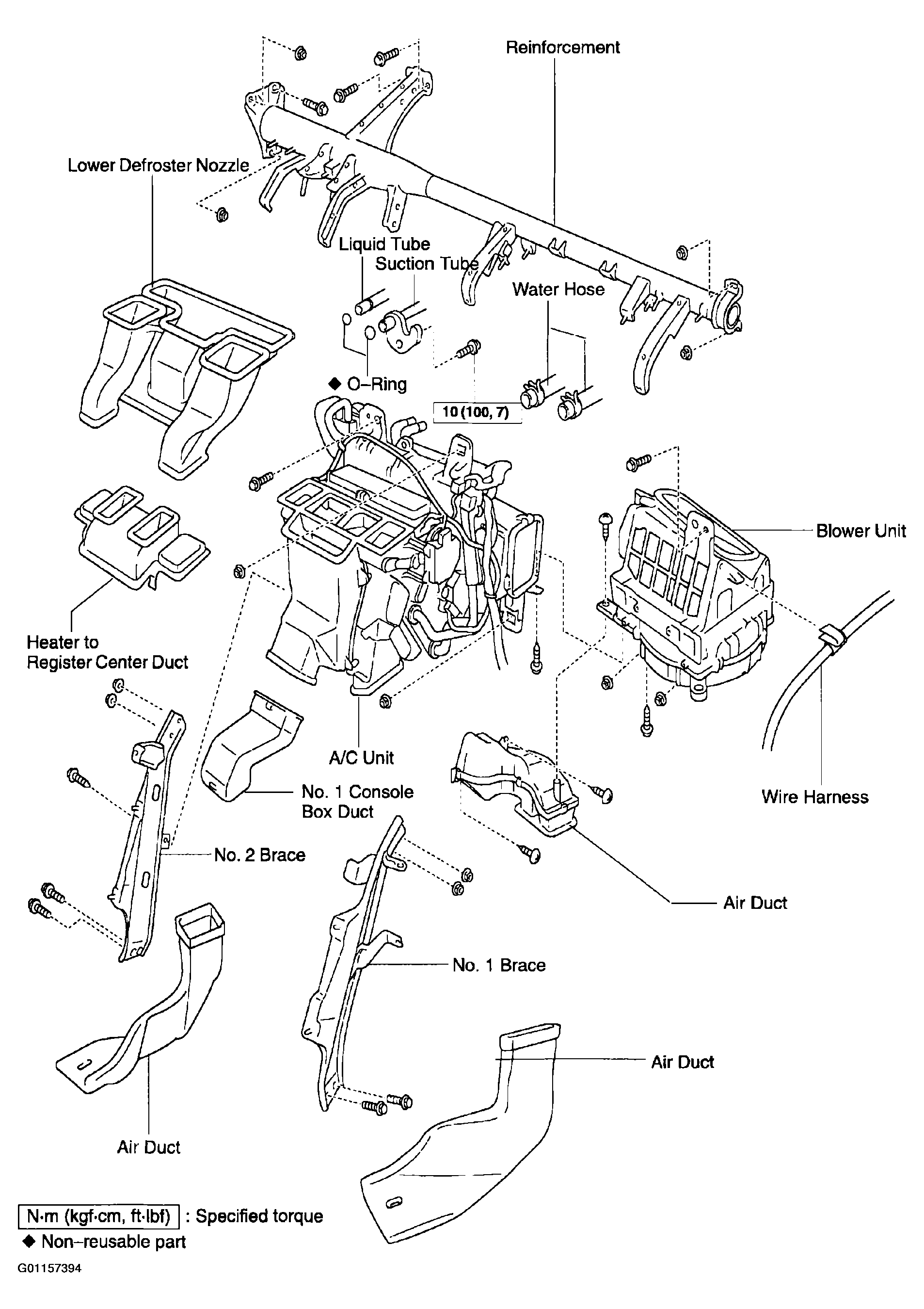

Fig 3: Exploded view of air conditioning unit components And Torque Specifications (2 Of 2)
