Blower Unit: Removal

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE THESE PARTS:
1. Cowl side trim RH
2. Front door scuff plate RH
3. No.2 under cover
4. Lower No.2 panel
5. w/CD Auto Changer: CD changer assembly
6. Front passenger airbag assembly (See PASSENGER-SIDE AIR BAG MODULE )
REMOVE BLOWER UNIT
1. Remove the 3 screws and air duct.

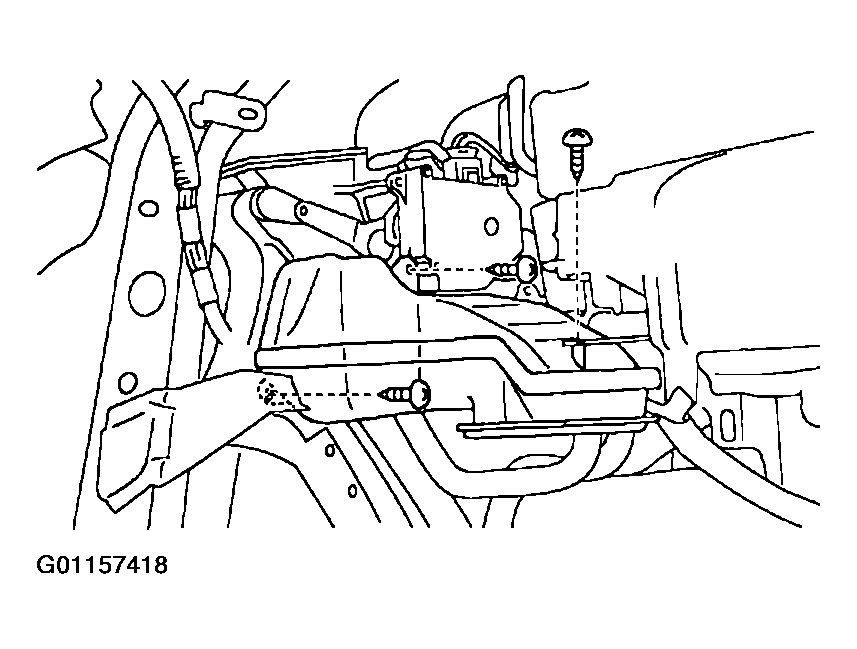

  Fig 1: Removing Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connectors.
3. Disconnect wire harness clamp.
4. Remove the 2 nuts, 2 bolts, screw and blower unit.

  Fig 2: Removing Blower Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
