Section 768 (Air Conditioning): Condenser: Removal

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT:

At the time of installation, please refer to the following item. Evacuate air from refrigeration system.

Charge system with refrigerant and inspect for leakage of refrigerant.
1. Specified amount: 650 +/- 50 g (22.92 +/- 1.76 oz.)
REMOVE RADIATOR UPPER SEAL
Remove the 7 clips and radiator upper seal.

Fig 1: Removing Radiator Upper Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER . See FRONT BUMPER .
DISCONNECT DISCHARGE HOSE AND LIQUID TUBE
Remove the 2 bolts and disconnect the hose and tube.
1. Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:

At the time of installation, please refer to the following item. Lubricate 2 new O-rings with compressor oil and install them to the hose and tube.

Fig 2: Disconnecting Discharge Hose And Liquid Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONDENSER
1. Disconnect the liquid tube piping clamp.
2. Remove the 2 bolts and pull out the condenser upward.
  HINT:

  At the time of installation, please refer to the following item. If condenser is replaced, add compressor oil to the condenser.

  Add 40 cc (1.4 fl. oz)
  1. Compressor oil: ND - OIL 8 or equivalent

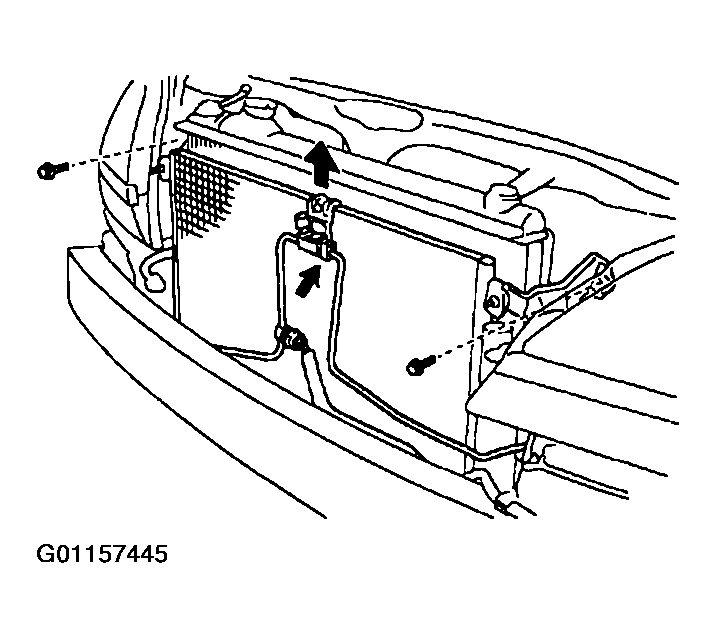

  Fig 3: Removing Condenser
