Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

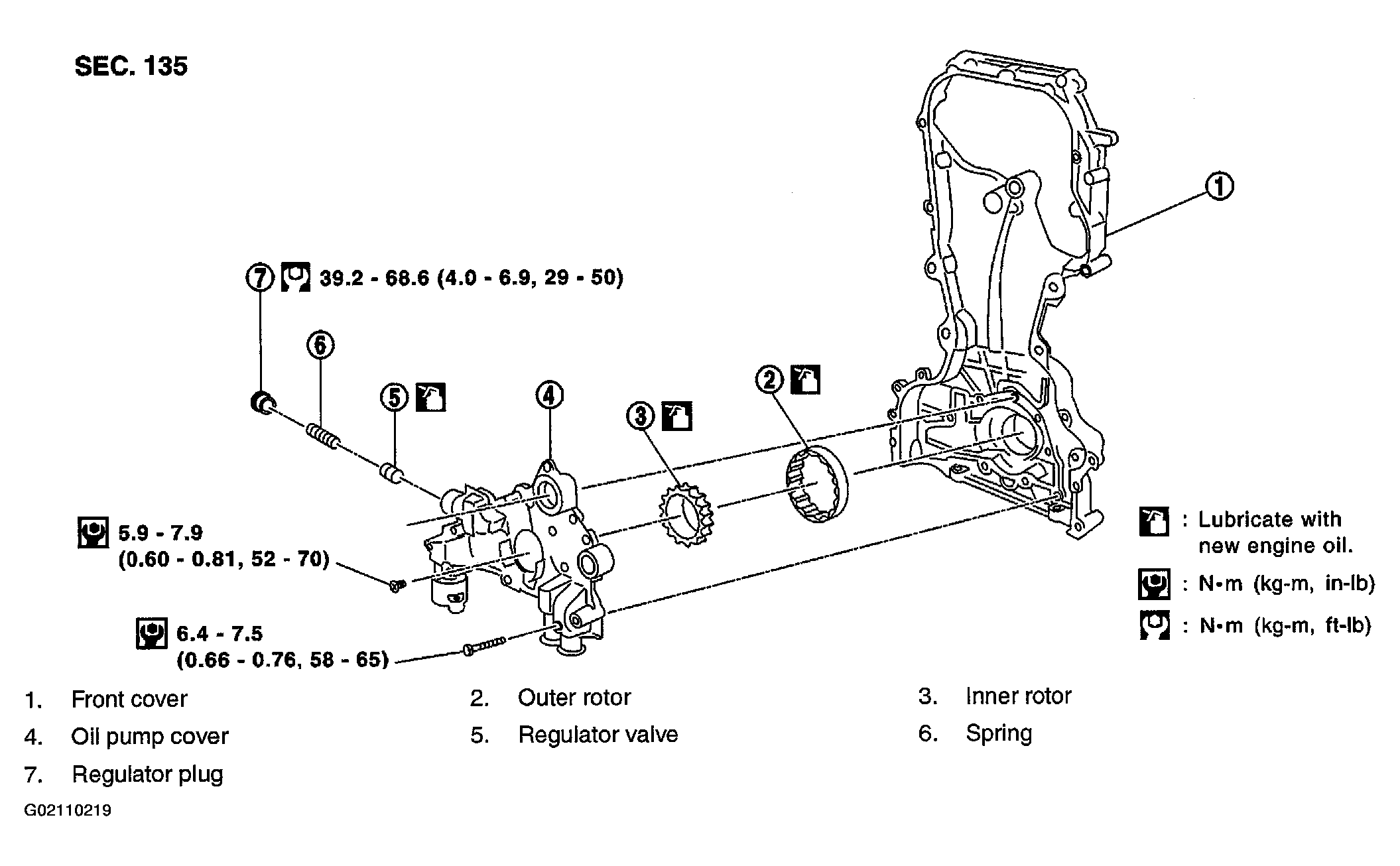

Fig 1: Identifying Oil Pump & Components
G02110219Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before installation, apply new engine oil to the parts as instructed in the figure above.
