Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install oil cooler into the tank (A/T model only).
NOTE: Pay attention to direction of conical washer.

Fig 1: Installing Oil Cooler Into Tank (A/T Model Only)
Courtesy of NISSAN MOTOR CO., U.S.A.

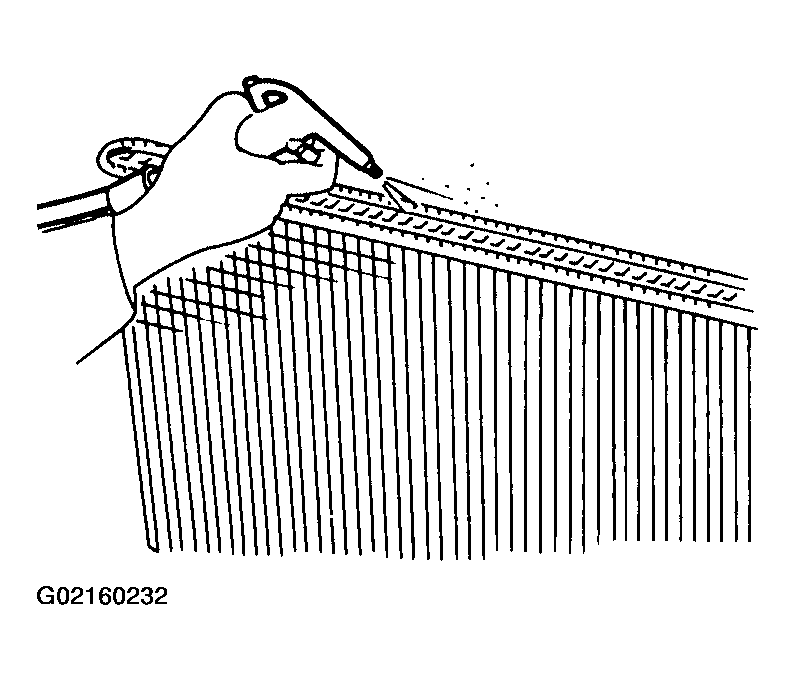

Clean contact portion of tank.

Fig 2: Cleaning Contact Portion Of Tank
Courtesy of NISSAN MOTOR CO., U.S.A.

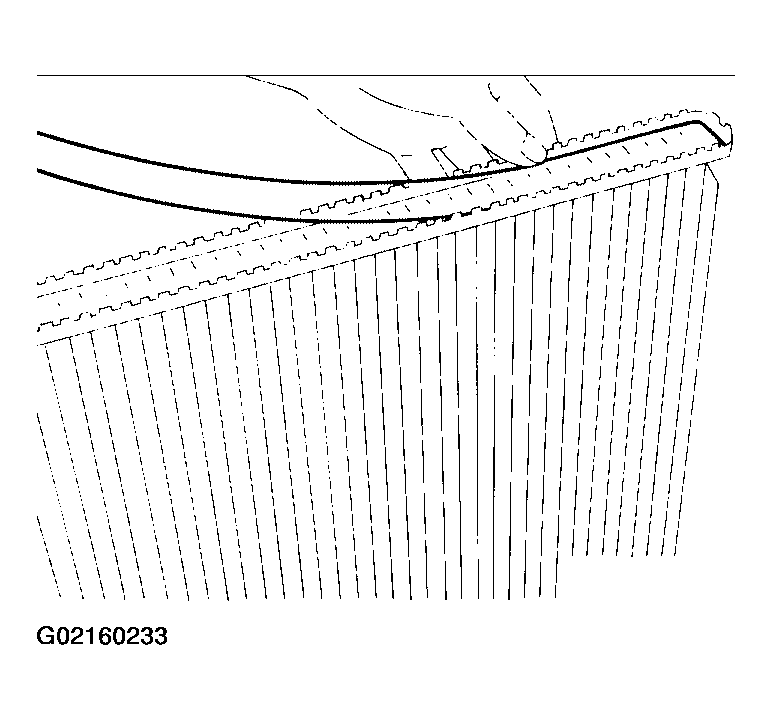

Install sealing rubber gasket by pushing it into the tank groove with your fingers.
CAUTION: Be careful not to twist sealing rubber gasket.

Fig 3: Installing Sealing Rubber Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.

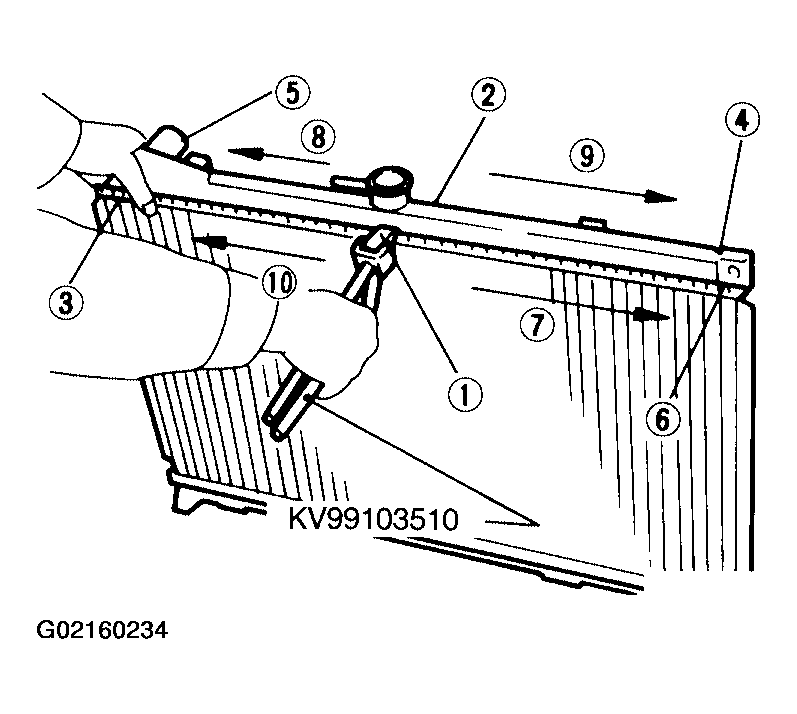

Crimp tank in specified sequence with Tool.

Fig 4: Crimping Tank In Specified Sequence With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

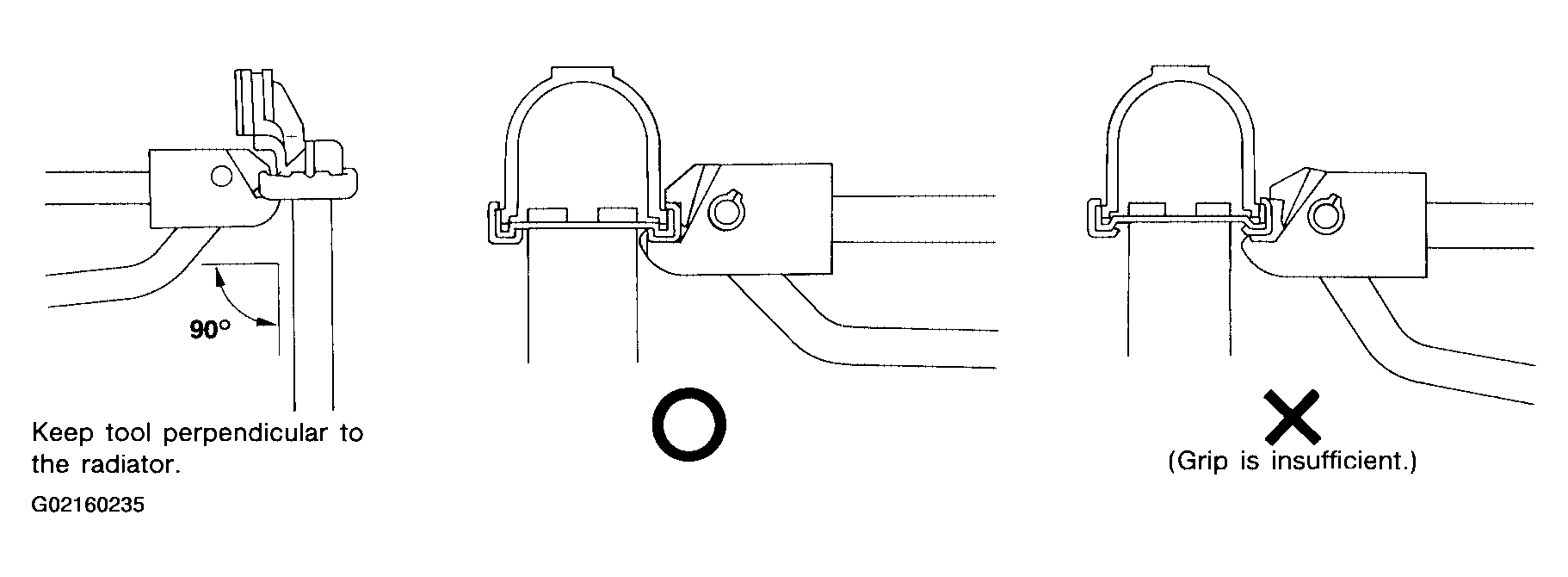

Fig 5: Locating Crimping Correct Method
Courtesy of NISSAN MOTOR CO., U.S.A.
- Use pliers in the locations where Tool cannot be used.
Fig 6: Using Pliers In Locations Where Tool Cannot Be Used
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the rim is completely crimped down.
1. Standard height "H" : 8.0 - 8.4 mm (0.315 - 0.331 in)
Confirm that there is no leakage. Refer to , "INSPECTION ".

Fig 7: Locating Sealing Rubber Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
