Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

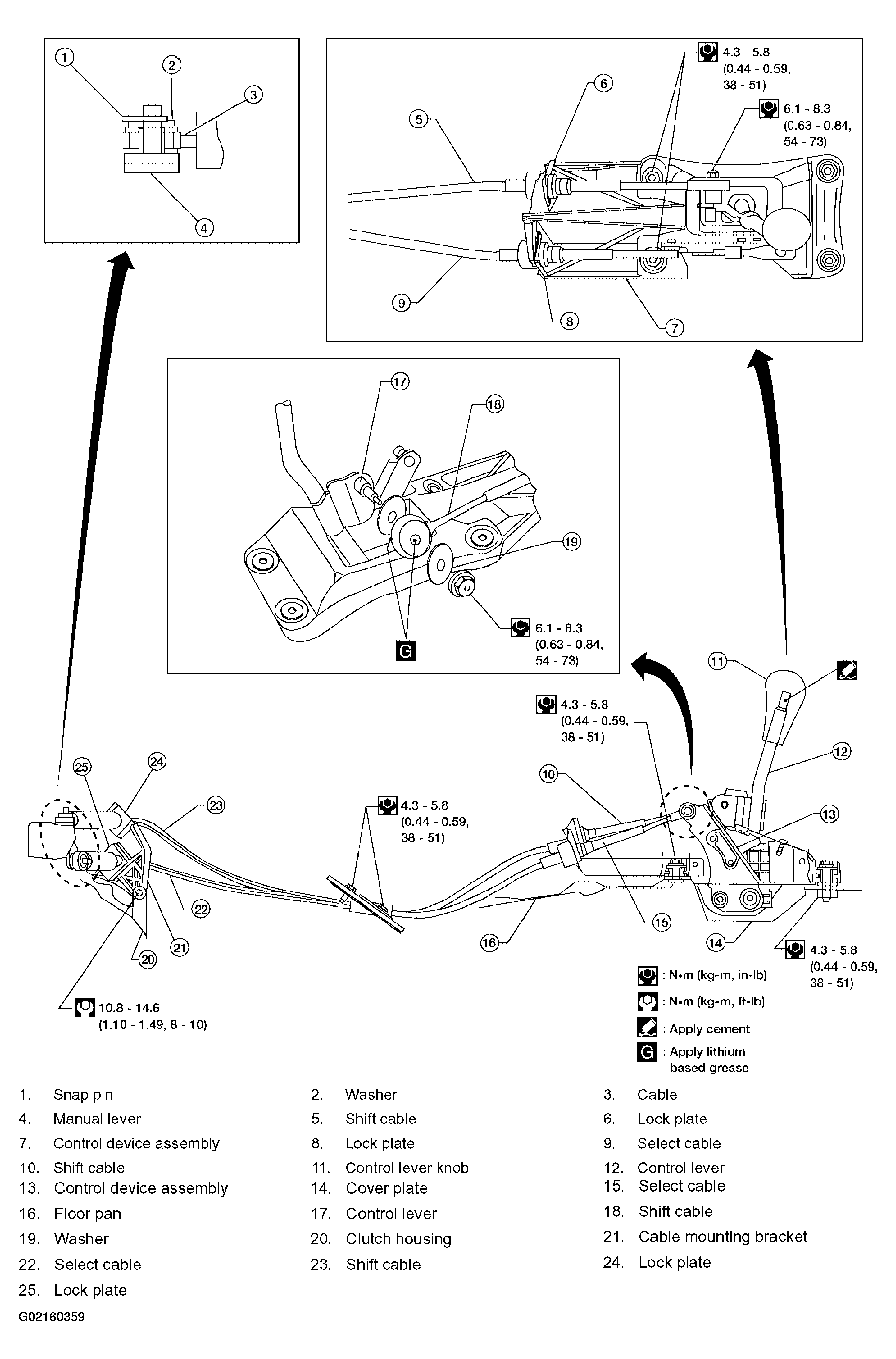

Fig 1: Control Linkage Replacement Components With Torque Specifications

G02160359

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Note that the select side lock plate for securing the control cable is different from the one on the shift side.
After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or Reverse.
