DTC P1705: Throttle Position Sensor [Accelerator Pedal Position (App) Sensor]: Description: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The throttle position sensor [accelerator pedal position (APP) sensor] is part of the system that controls throttle position. This system also uses an electric throttle control actuator, which consists of a throttle control motor and throttle position sensors. Accelerator pedal position signal is sent to the ECM.

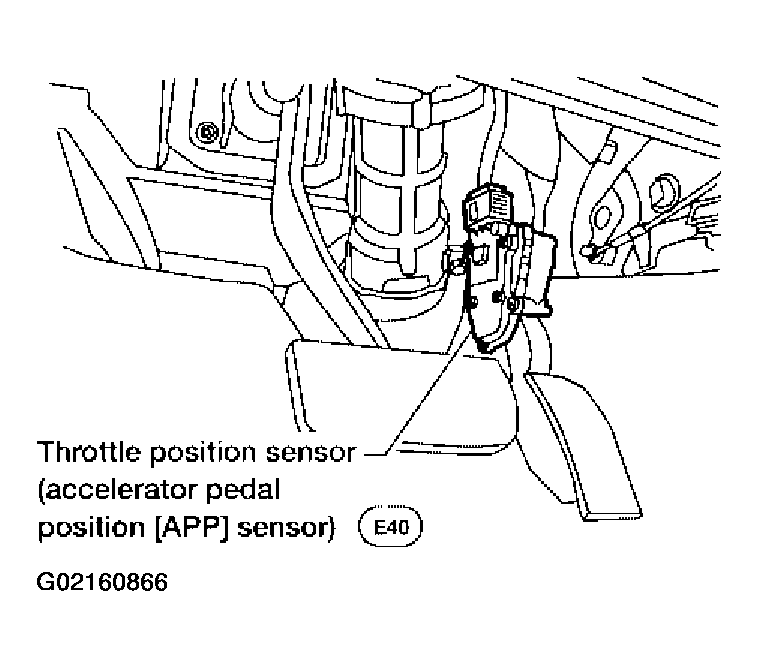

Fig 1: Identifying Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]
G02160866Courtesy of NISSAN MOTOR CO., U.S.A.
