Data Monitor Mode (A/T)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

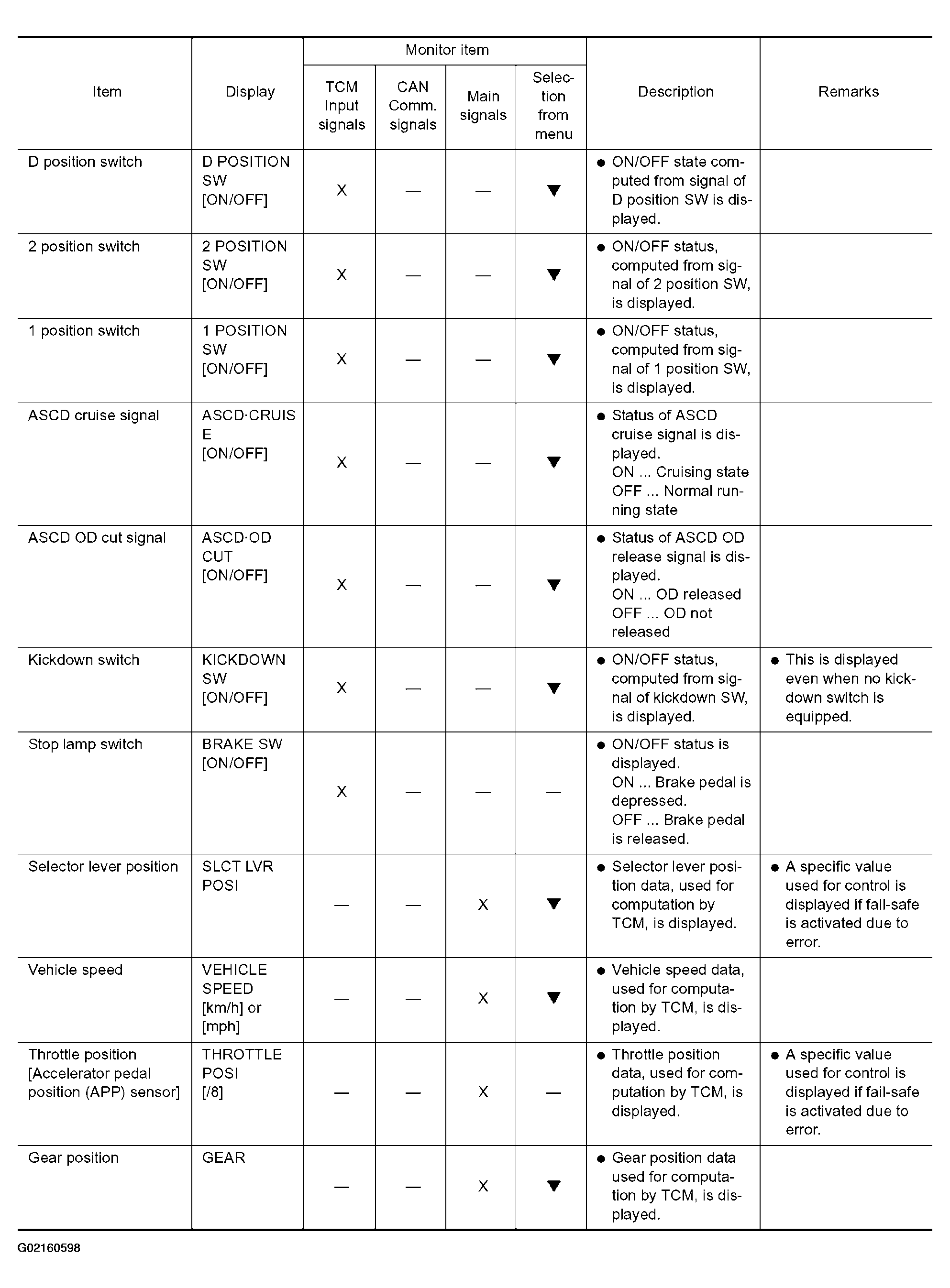

Fig 1: Data Monitor Mode Chart A/T (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

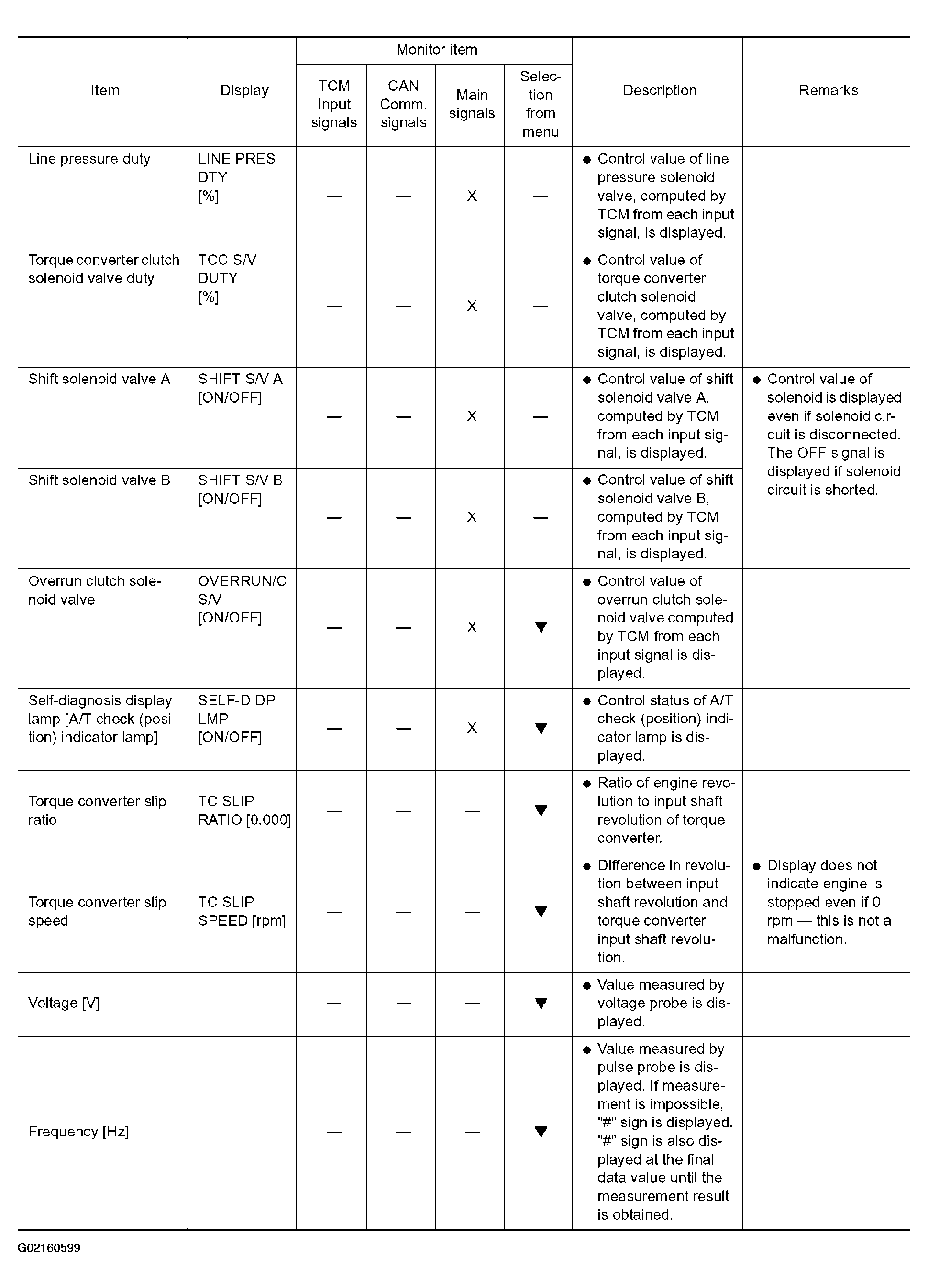

Fig 2: Data Monitor Mode Chart A/T (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

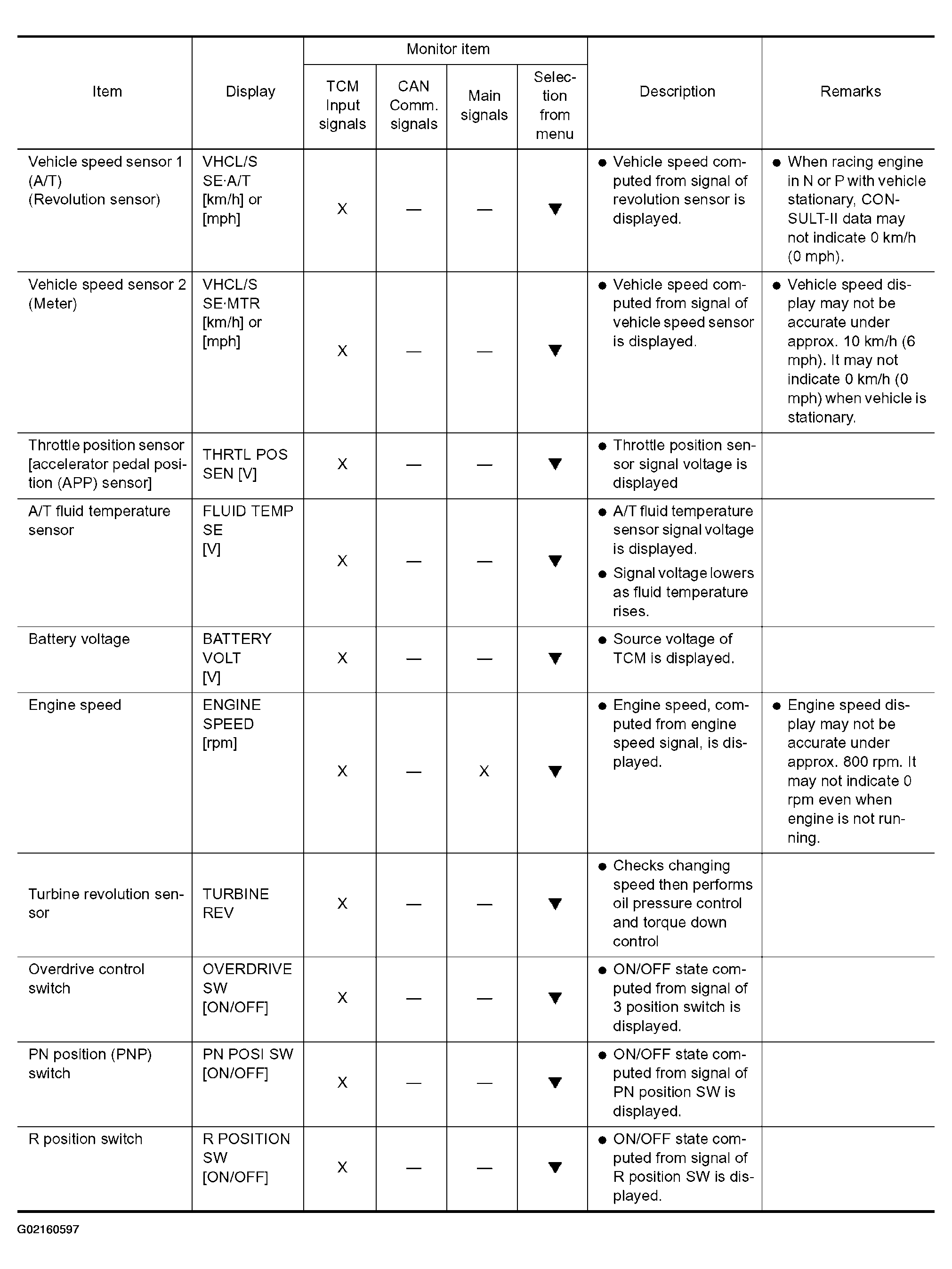

Fig 3: Data Monitor Mode Chart A/T (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

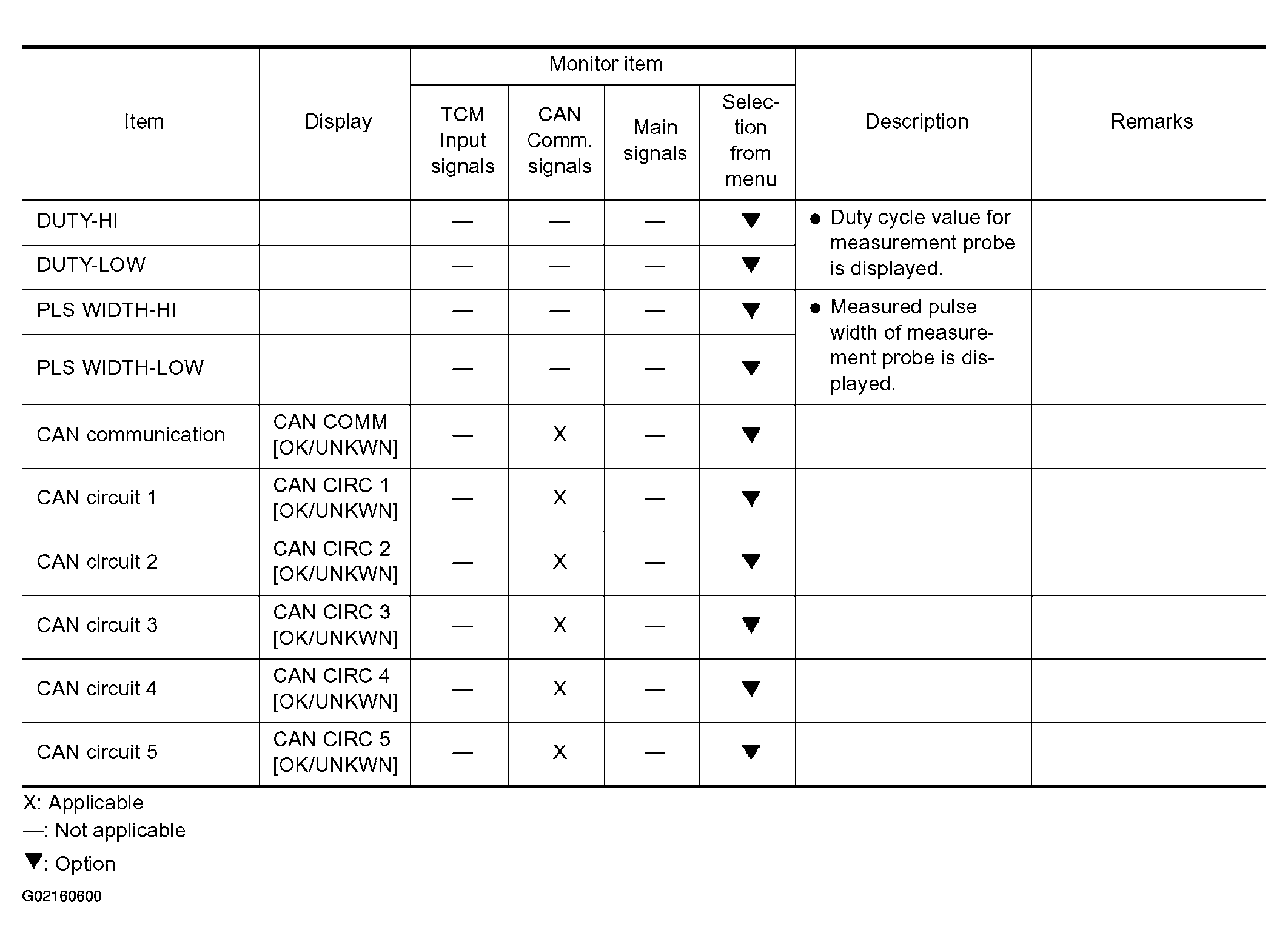

Fig 4: Data Monitor Mode Chart A/T (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
