Manual Shaft: Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

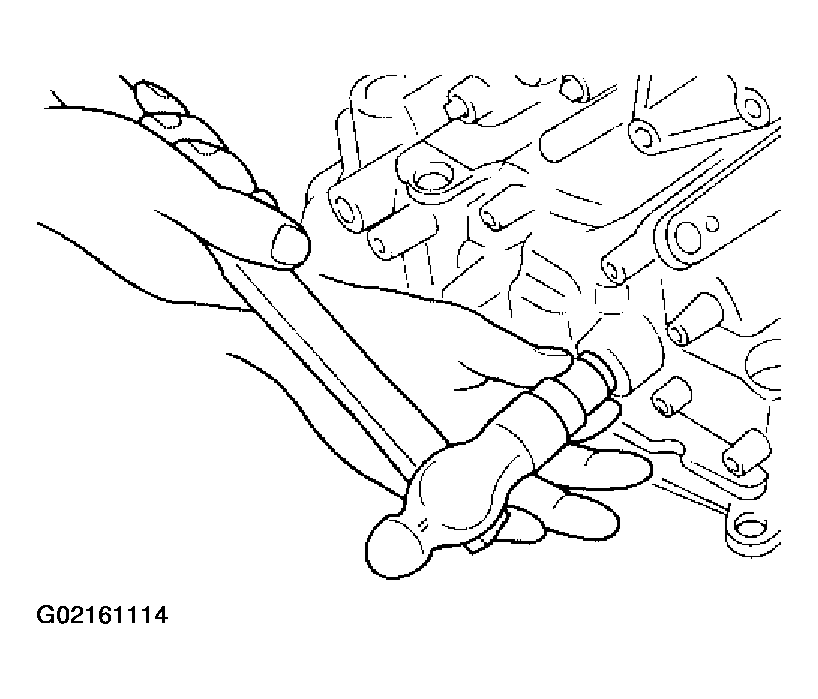

Install manual shaft oil seal.
- Apply ATF to outer surface of oil seal.
Fig 1: Installing Manual Shaft Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

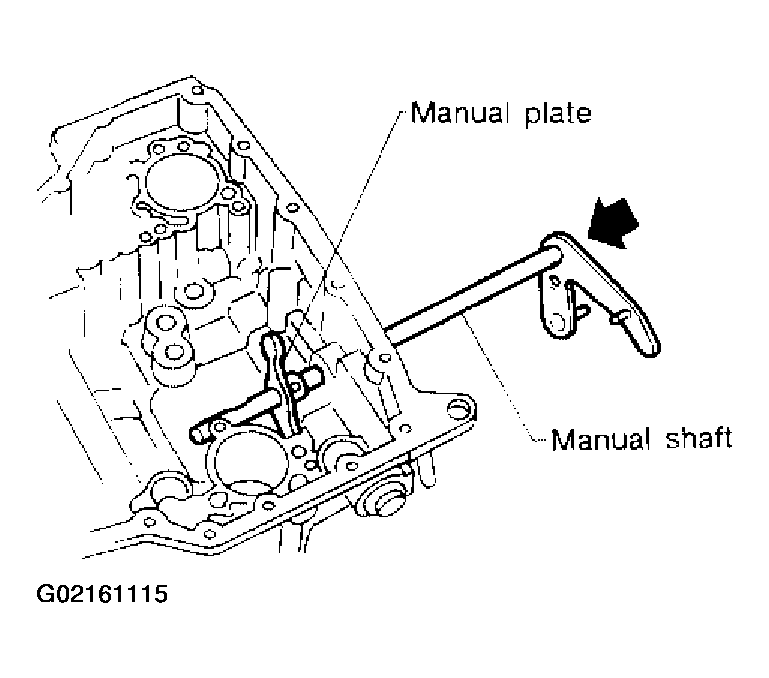

Install manual shaft and manual plate.

Fig 2: Installing Manual Shaft And Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Align groove of manual shaft and hole of transmission case.
Install manual shaft retaining pin up to bottom of hole.

Fig 3: Installing Manual Shaft Retaining Pin Up To Bottom Of Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking rod to parking rod plate.
Set parking rod assembly onto manual shaft and drive retaining pin.
- Both ends of pin should protrude.
Fig 4: Installing Parking Rod To Parking Rod Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive manual plate retaining pin.
- Both ends of pin should protrude.
Fig 5: Driving Manual Plate Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.

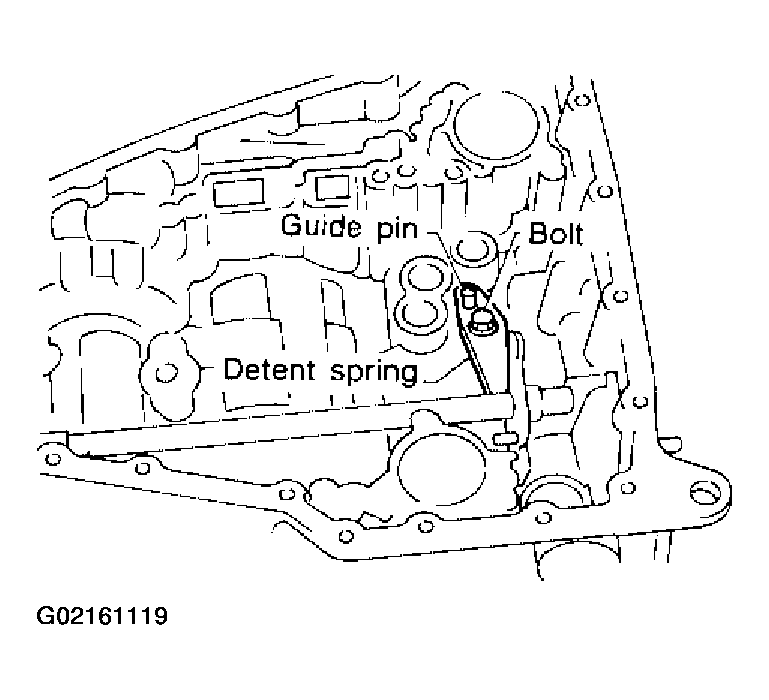

Install detent spring. Tighten detent spring bolts to the specified torque. Refer to "COMPONENTS ".

Fig 6: Installing Detent Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
