Oil Pump: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Removal seal rings

Fig 1: Locating Seal Ring For Removal
Courtesy of NISSAN MOTOR CO., U.S.A.

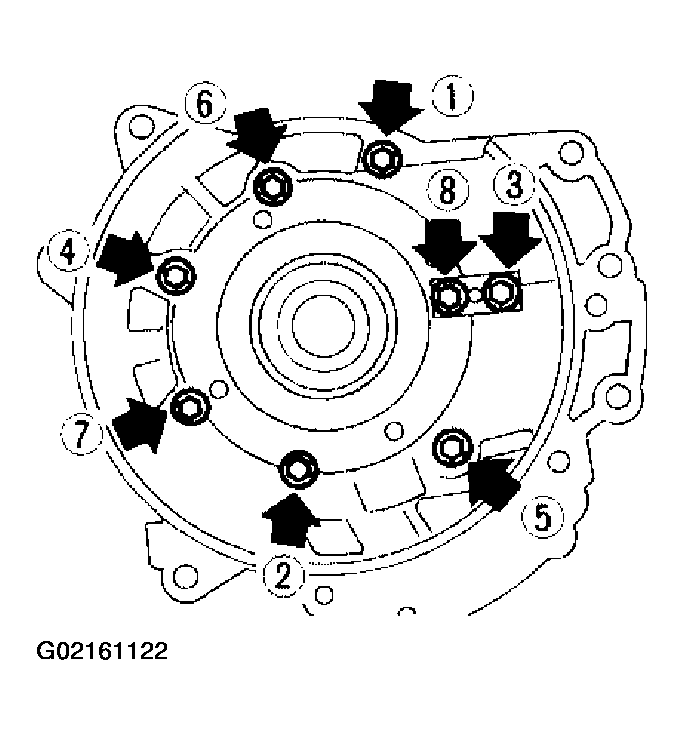

Loosen bolts in a crisscross pattern and remove oil pump cover.

Fig 2: Locating Oil Pump Cover Bolts For Removing Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove inner and outer gear from oil pump housing.

Fig 3: Removing Inner And Outer Gear From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from Oil pump housing.

Fig 4: Removing O-Ring From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump housing oil seal.

Fig 5: Removing Oil Pump Housing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
