Overview Air Conditioner LAN Control System
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

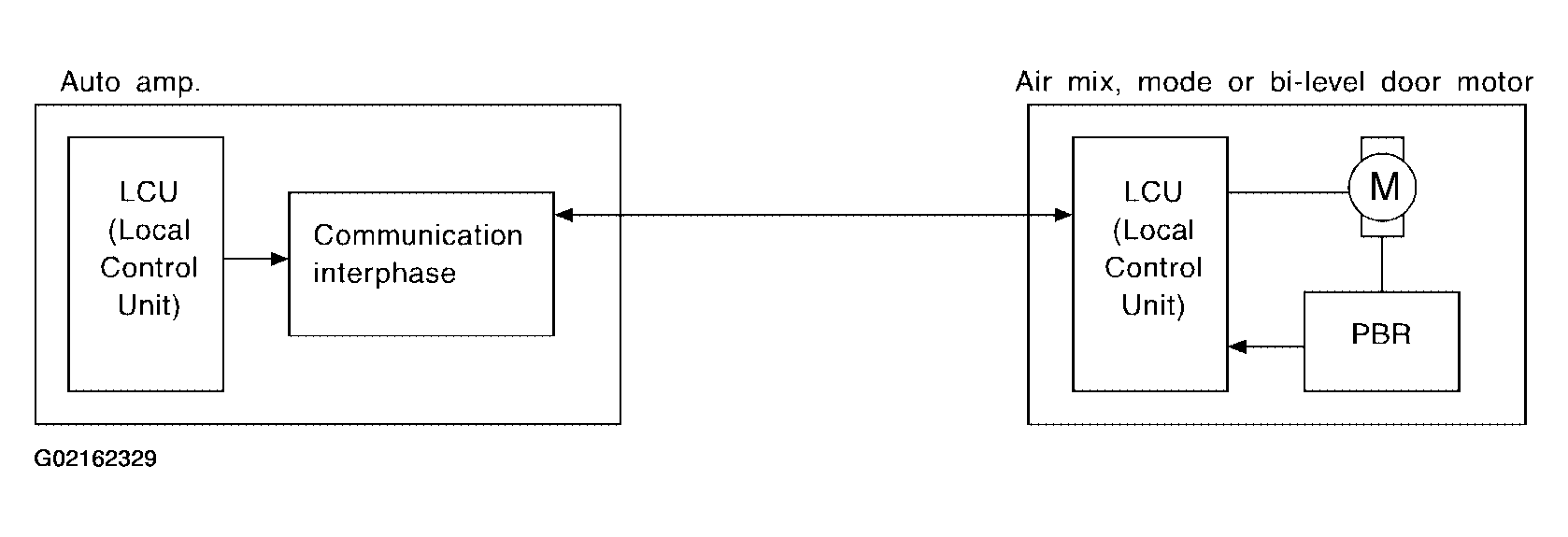

The LAN system consists of auto amp., air mix door motor and mode door motor. A configuration of these components is shown in Fig 1.
