Oil Pan: Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before installing oil pan, remove old liquid gasket from mating surface using a scraper.
    • Also remove old liquid gasket from mating surface of cylinder block.
    • Remove old liquid gasket from the bolt hole and thread.
      Fig 1: Removing Old Liquid Gasket From Mating Surface Using Scraper
      G02032162Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Apply sealant to front cover gasket and rear oil seal retainer gasket.

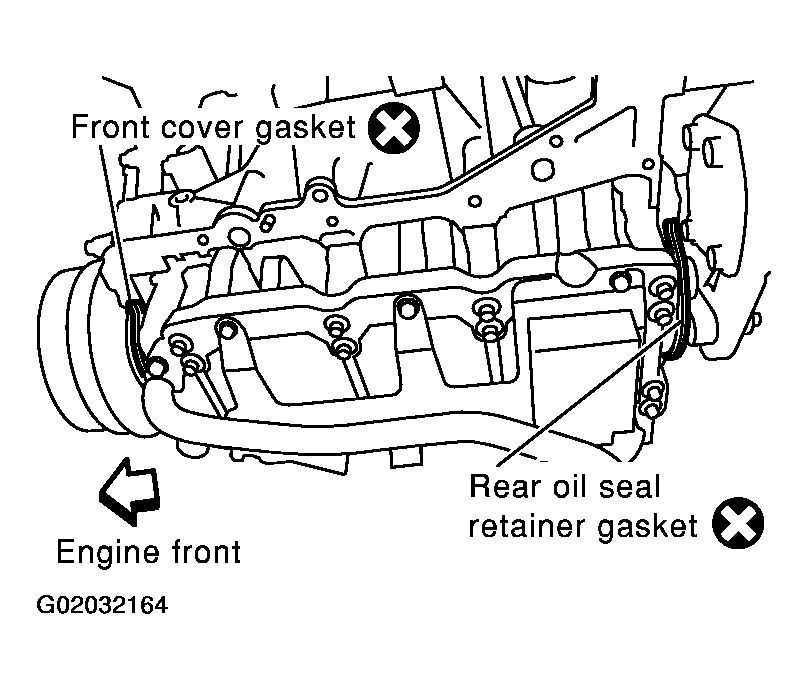

    Fig 2: Applying Sealant To Front Cover Gasket And Rear Oil Seal Retainer Gasket
    G02032163Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install front cover gasket and rear oil seal retainer gasket.
    Fig 3: Installing Front Cover Gasket And Rear Oil Seal Retainer Gasket
    G02032164Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply a continuous bead of liquid gasket to mating surface of aluminum oil pan.
    • Use Genuine RTV silicone sealant or equivalent. Refer to  RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS  .
      Fig 4: Applying Bead Of Liquid Gasket To Mating Surface Of Aluminum Oil Pan
      G02032165Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Apply liquid gasket to inner sealing surface as shown in figure.
    • Be sure to apply it inside to all bolt holes.
    • Be sure to apply it to part A at [4.5 to 5.5 mm (0.177 to 0.217 in)].
    • Attaching should be done within 5 minutes after coating.

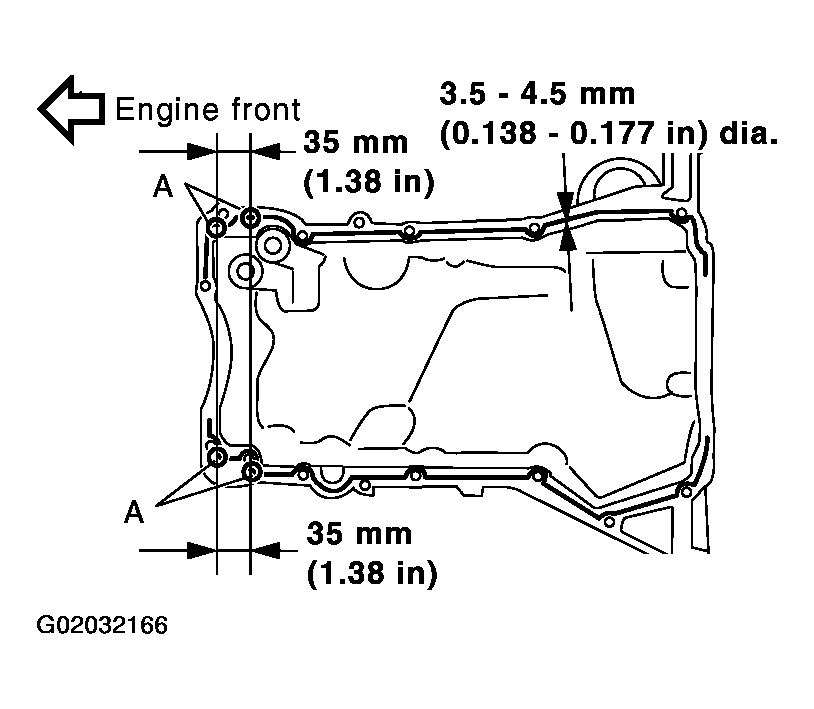

      Fig 5: Applying Liquid Gasket To Inner Sealing Surface
      G02032166Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install O-rings, cylinder block and oil pump body.

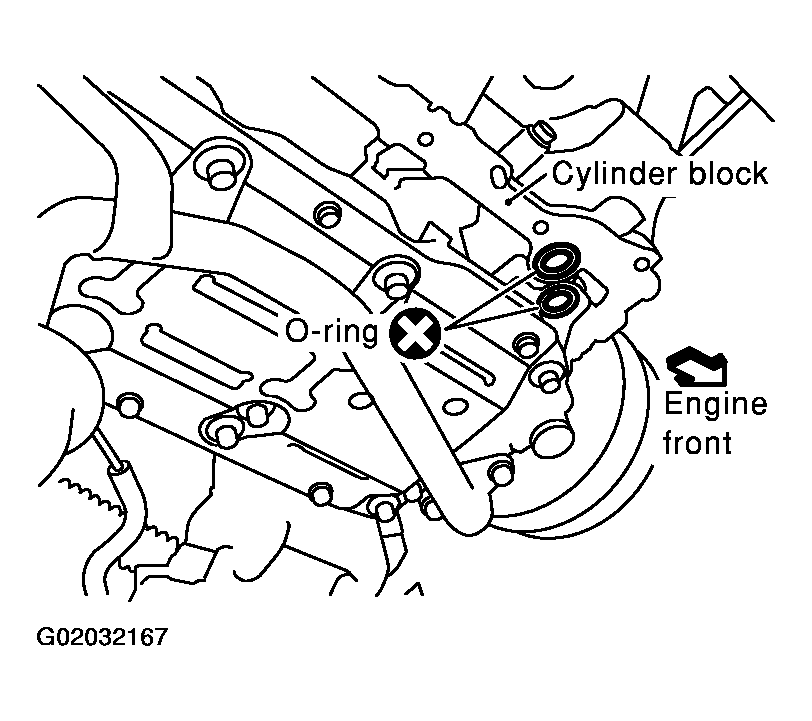

    Fig 6: Installing O-Rings
    G02032167Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install aluminum oil pan.
    • Tighten bolts in numerical order.
    • Wait at least 30 minutes before refilling engine oil.
  8. Install plug to rear right of aluminum oil pan.
    • Plug position is under No. 10 bolt in the figure.

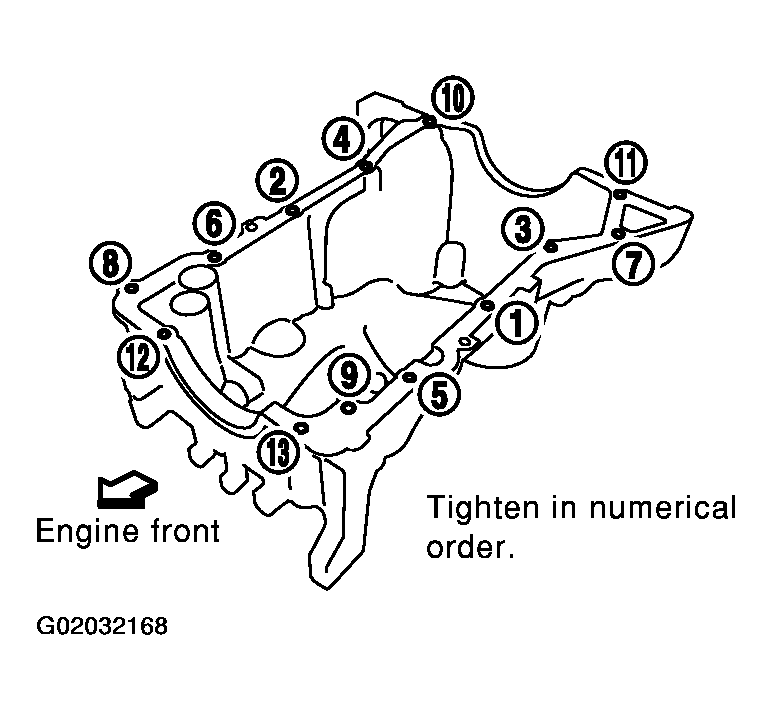

      Fig 7: Tightening Oil Pan Bolts In Numerical Order
      G02032168Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install the four engine-to-transmission bolts. For tightening torque, refer to INSTALLATION (AUTO) OR INSTALLATION (MANUAL) .
    10. Fig 8: Installing Four Engine-To-Transmission Bolts
    G02032169Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Reinstall in the reverse order of removal.
