Final Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

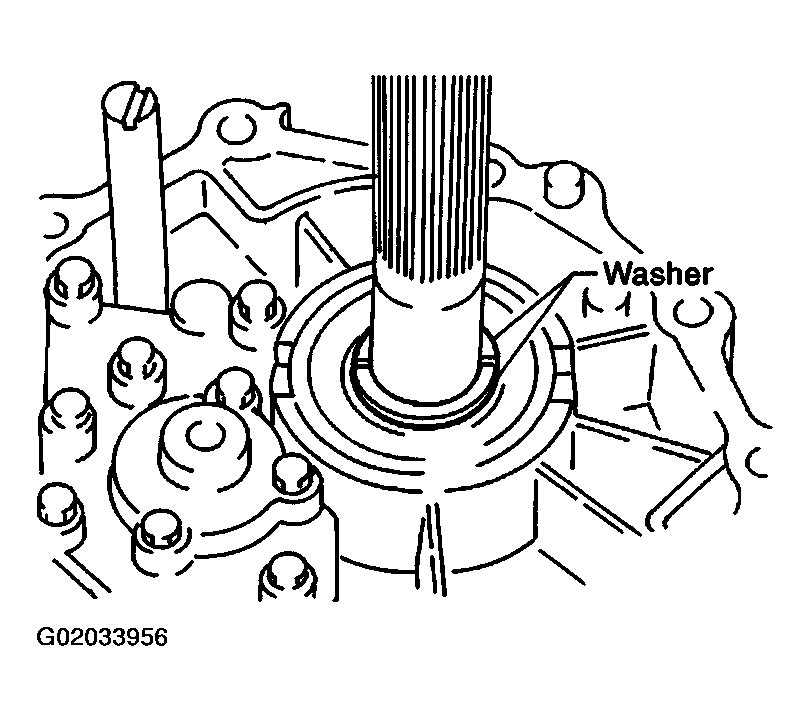

Install C-rings to mainshaft rear bearing.

Fig 1: Installing C-Rings To Mainshaft Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

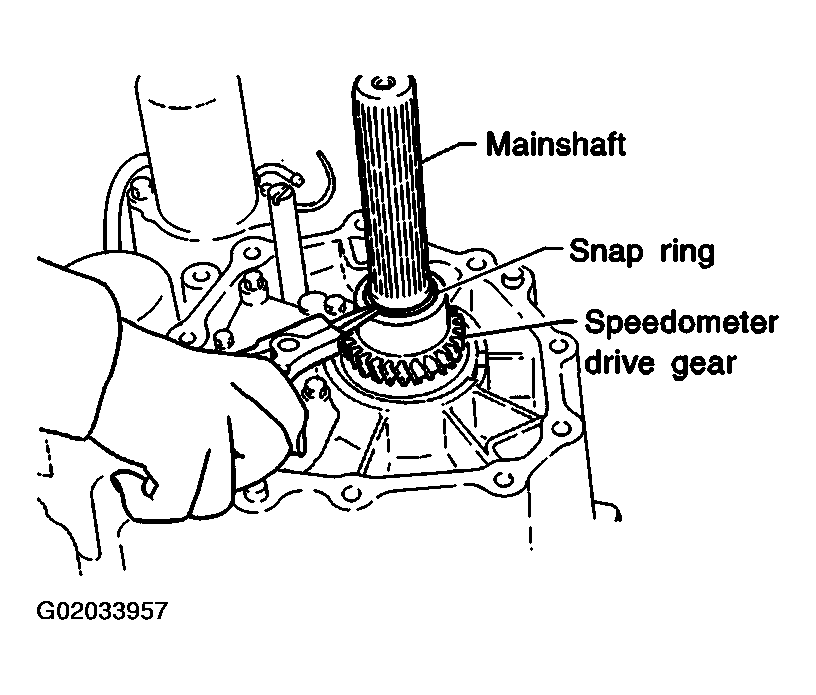

Check speedometer drive gear teeth for abnormal wear. Set speedometer drive gear properly on mainshaft, and secure it with snap ring.
- Do not reuse snap ring.

  Fig 2: Installing Snap Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.

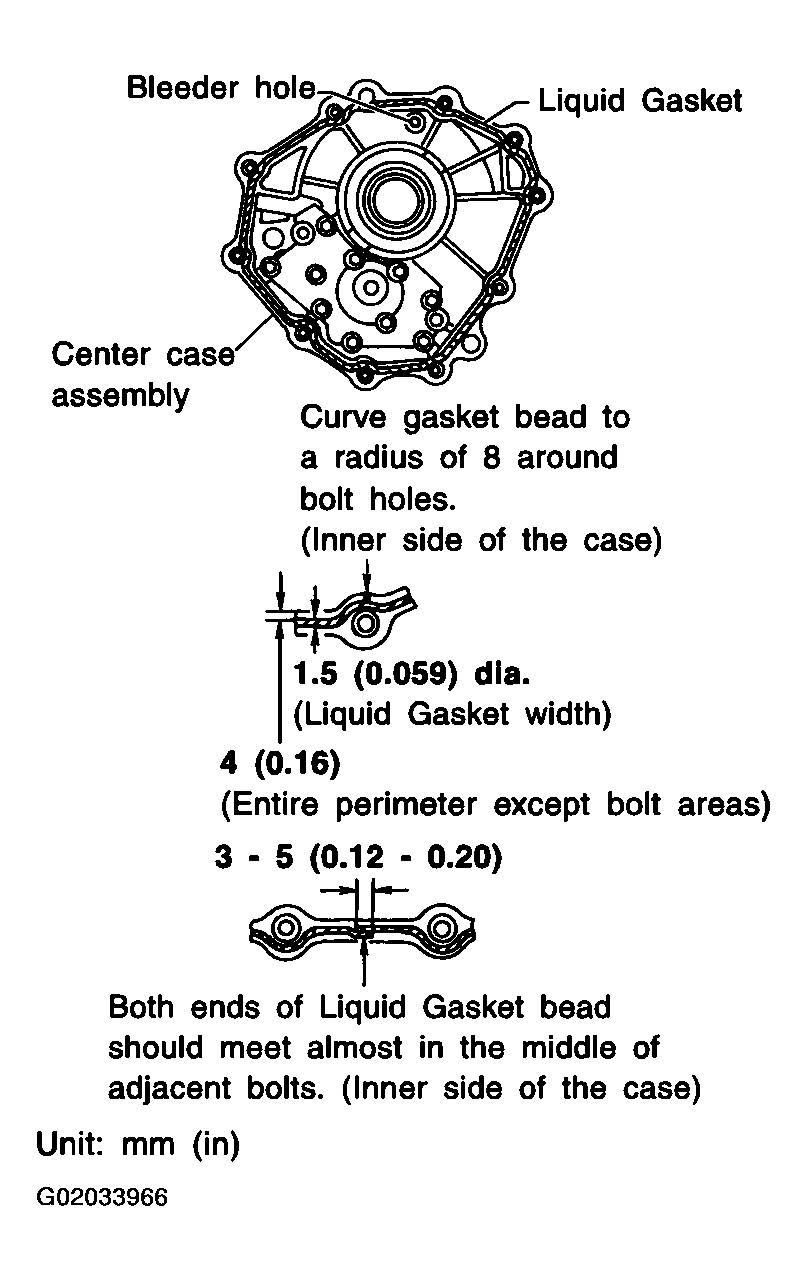

Apply Genuine Anaerobic Liquid Gasket or equivalent to the entire center case mounting surface of front case as shown in the figure.
Refer to TRANSFER COMPONENTS .

CAUTION: Remove all foreign materials such as water, oil and grease from center case and front case mating surfaces.

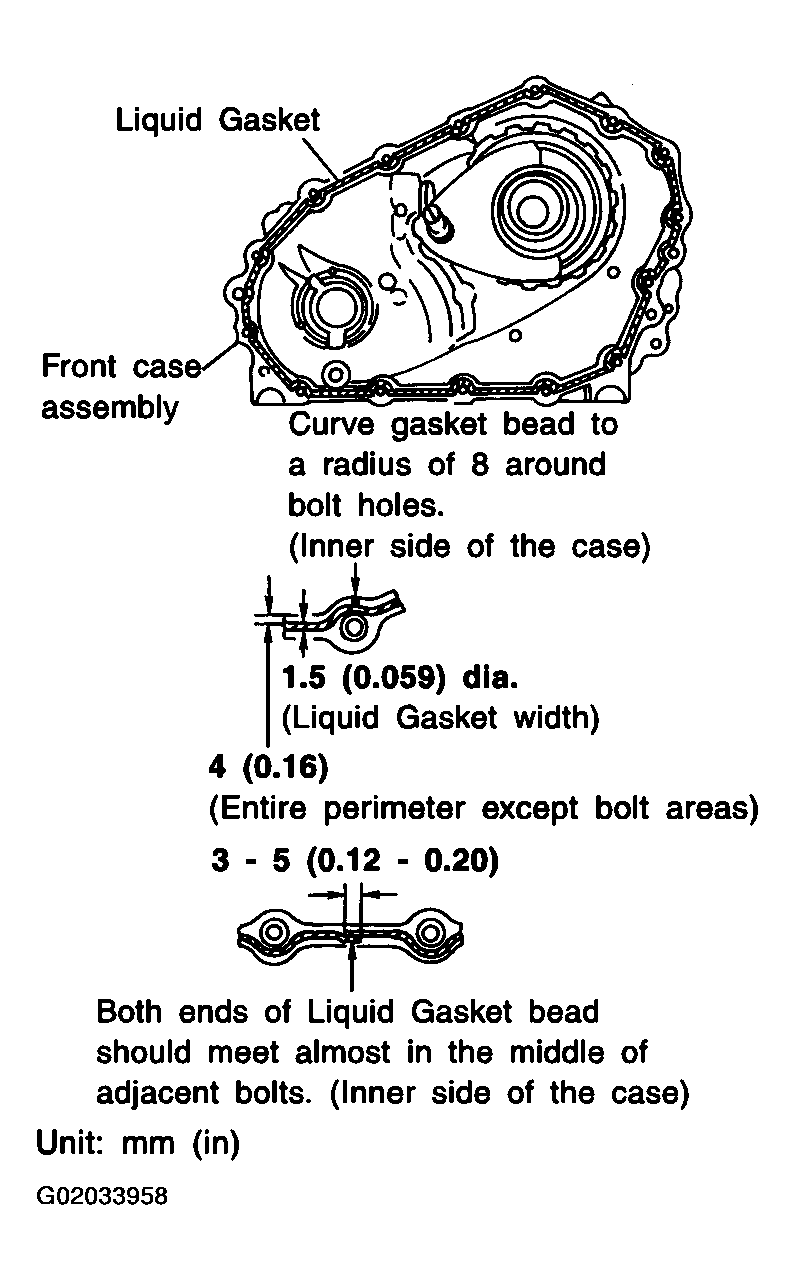

Fig 3: Applying Liquid Gasket To Front Case Center Case Mounting Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

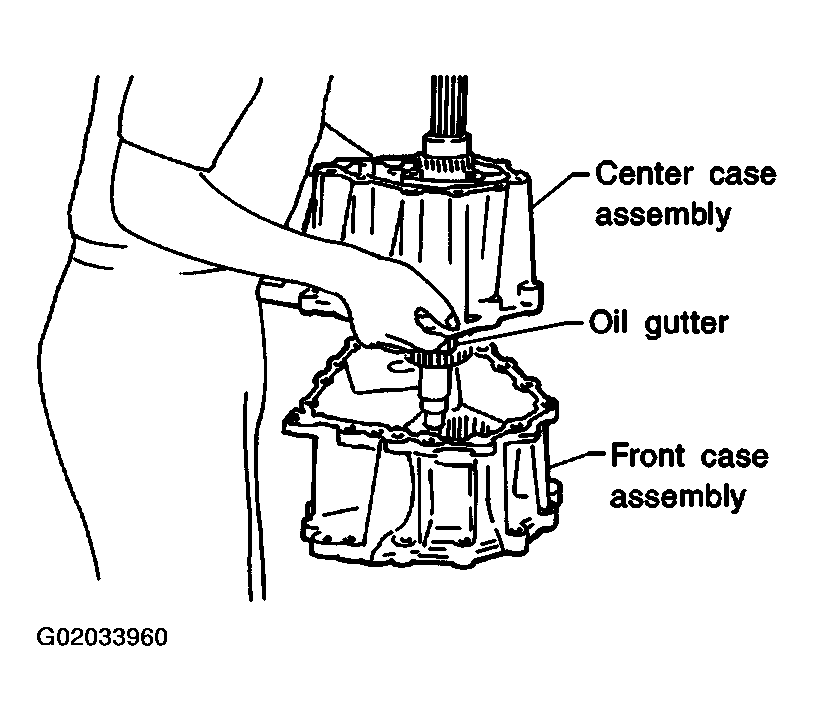

Make sure the two claws of oil gutter are securely attached to slots in center case.

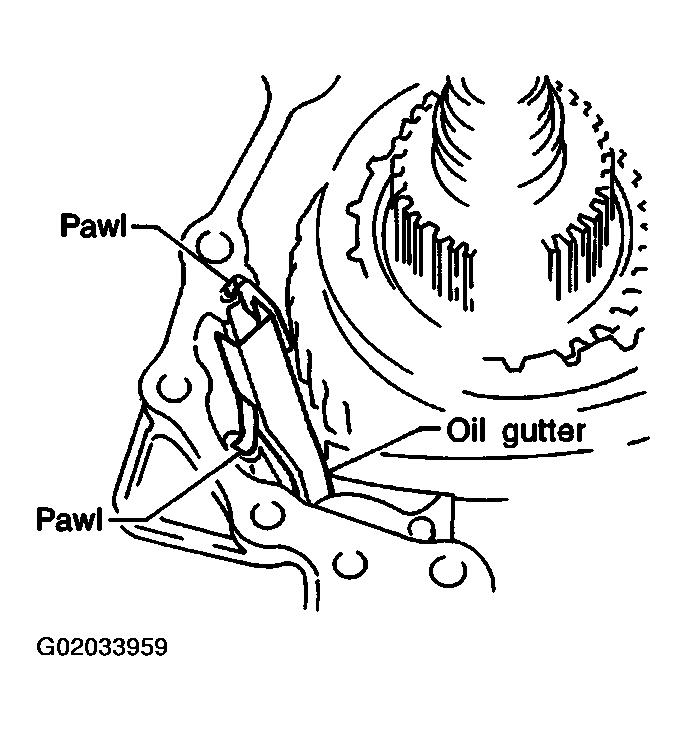

Fig 4: Locating Oil Gutter
Courtesy of NISSAN MOTOR CO., U.S.A.
With the claws of oil gutter held by a finger, install center case assembly to front case assembly.
CAUTION: Pay careful attention so that mainshaft end does not damage radial needle bearing in sun gear assembly.
Tap center case lightly with a rubber hammer or the like and press-fit front drive shaft bearing into front case.

Fig 5: Installing Center Case Assembly To Front Case Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure oil gutter rear end protrudes from point "A" in the figure.
Tighten bolts to specified torque.
: 42 - 48 N.m (4.2 - 4.9 kg-m, 31 - 35 ft-lb)
- Be sure to install air breather hose clamp, connector bracket and harness clip.

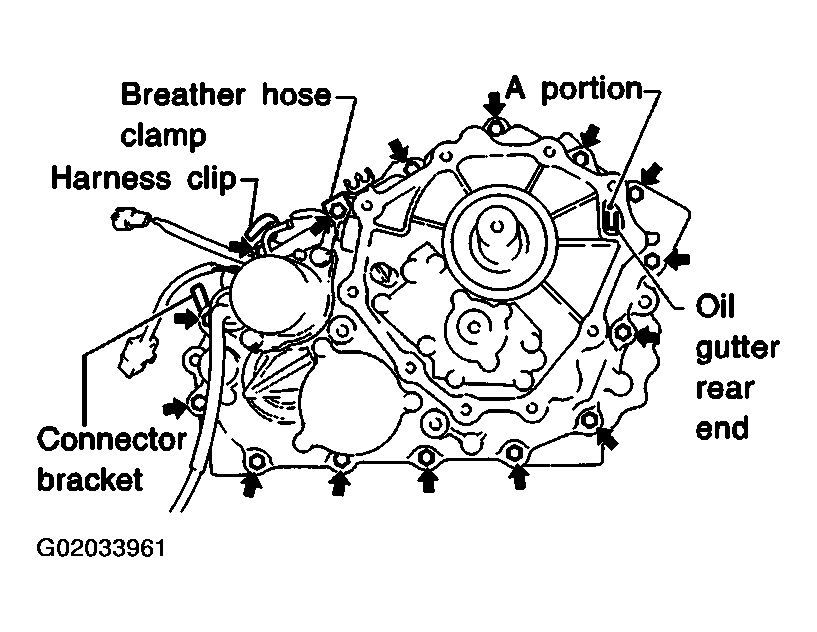

  Fig 6: Tightening Mounting Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

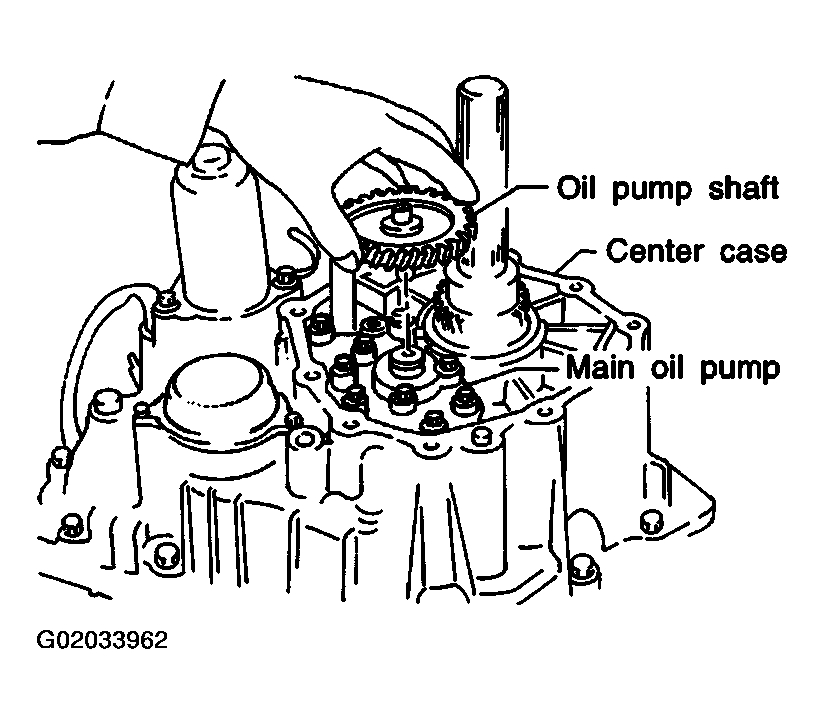

Fit double-flat end of oil pump shaft into slot of main oil pump and install it.
NOTE: When oil pump shaft is rotated slightly, it drops into position where both parts fit.

Fig 7: Fitting Oil Pump Shaft Double-Flat End Into Main Oil Pump Slot
Courtesy of NISSAN MOTOR CO., U.S.A.
Install stem bleeder to center case.

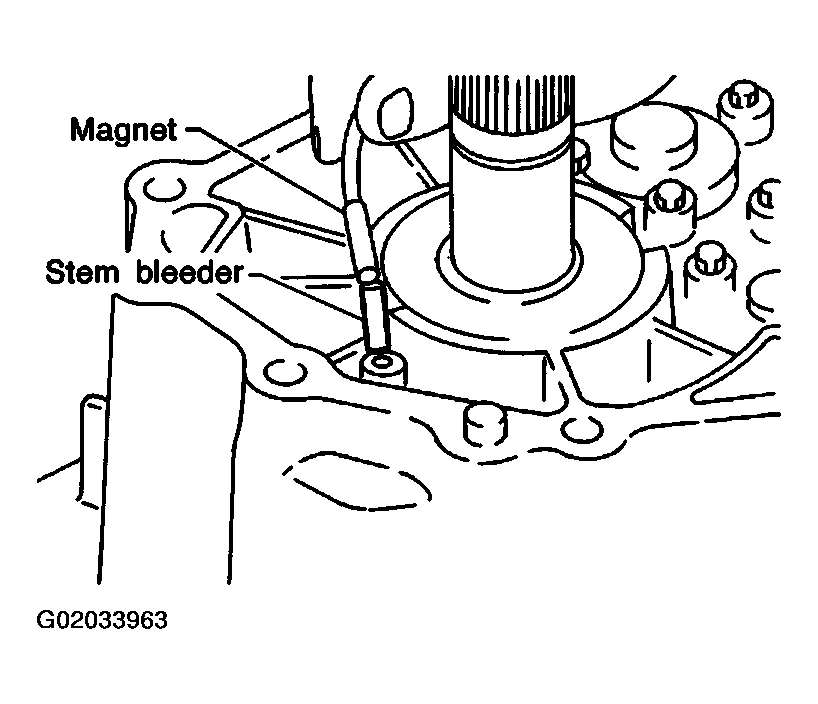

Fig 8: Installing Stem Bleeder To Center Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear oil seal.
- Do not reuse oil seal.

  Fig 9: Removing Rear Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.

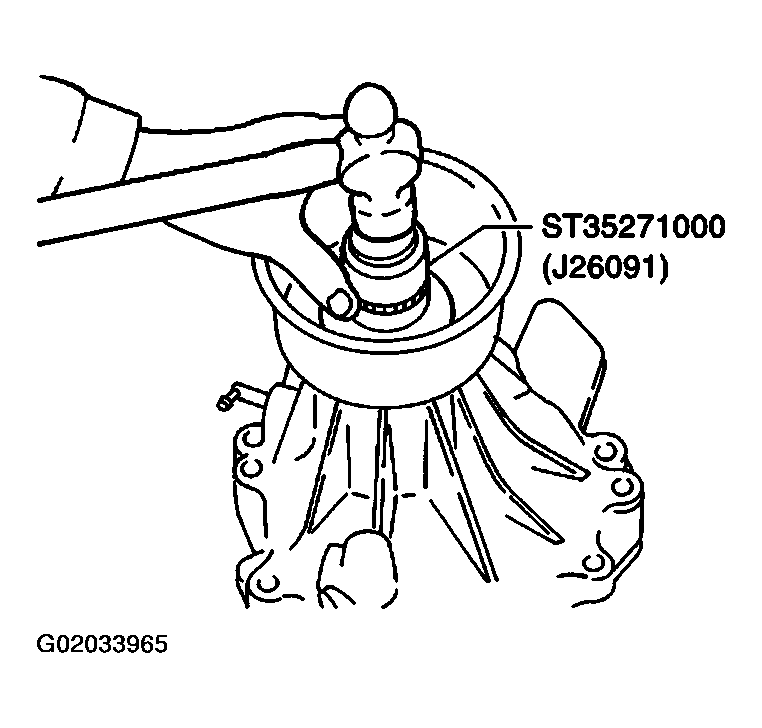

Apply ATF to the circumference of new rear oil seal, and tap it using a drift as shown in the figure so that it is aligned with case tip face.
- Apply multi-purpose grease to oil seal lip.

  Fig 10: Installing Rear Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
Apply Genuine Anaerobic Liquid Gasket or equivalent to entire rear case mounting surface of center case as shown in the figure.
Refer to TRANSFER COMPONENTS .
CAUTION:
- Remove all foreign materials such as water, oil, and grease from center case and rear case mating surfaces.
- Be careful not to allow Liquid Gasket to clog bleeder hole.
Install rear case to center case, and tighten bolts to specified torque.
: 42 - 48 N.m (4.2 - 4.9 kg-m, 31 - 35 ft-lb)
- Be sure to attach harness clips.

  Fig 11: Applying Liquid Gasket To Center Case Rear Case Mounting Surface
  Courtesy of NISSAN MOTOR CO., U.S.A.

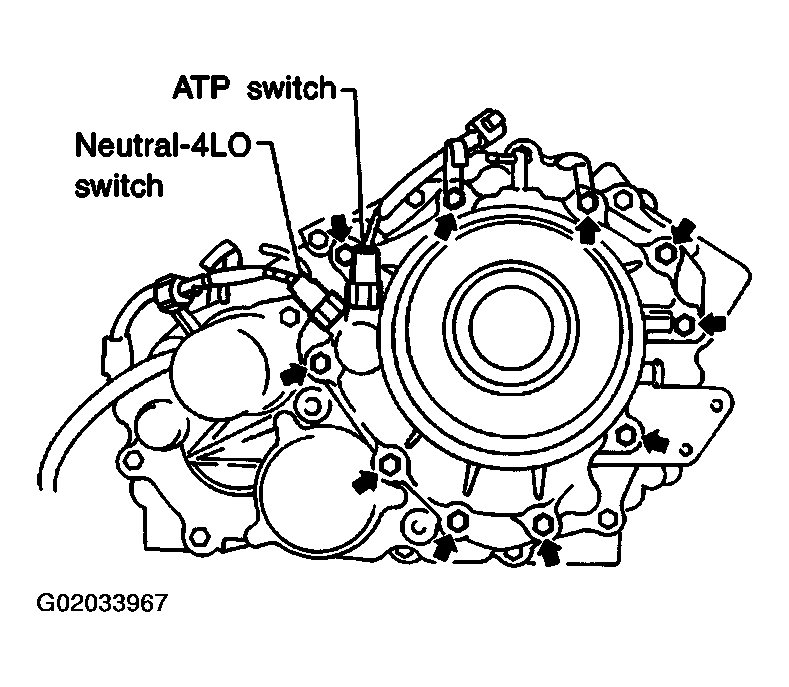

Remove all the gasket fluid from switch mounting area and inside rear case, with ATP switch and neutral-4LO switch threaded in 1 to 2 pitches, apply Genuine Thread Sealant or equivalent to the thread of the switches and tighten it to specified torque.
: 15 - 20 N.m (1.5 - 2.0 kg-m, 11 - 14 ft-lb)
Install rear case assembly to center case assembly.

Fig 12: Installing ATP Switch And Neutral 4LO Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

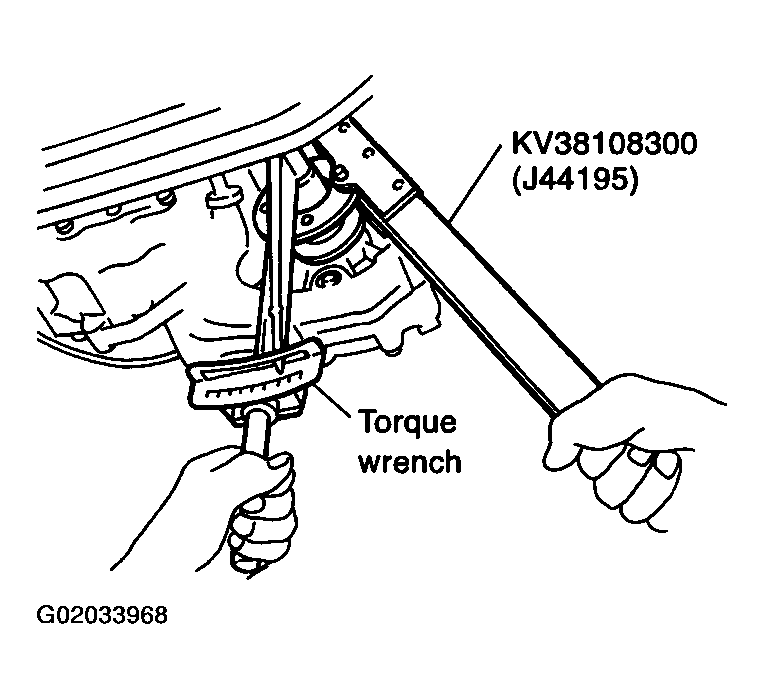

Install companion flange to front drive shaft, and tighten lock nut.
: 226 - 324 N.m (23.0 - 33.0 kg-m, 166 - 239 ft-lb)
- Do not reuse lock nut.

  Fig 13: Installing Companion Flange To Front Drive Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
