Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Lock the CD changer unit mechanism (models with CD changer).
Refer to "LOCKING CD CHANGER UNIT MECHANISM ".
Disconnect both battery cables in advance.
Disconnect air bag system line in advance.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
Be careful not to scratch pad and other parts.

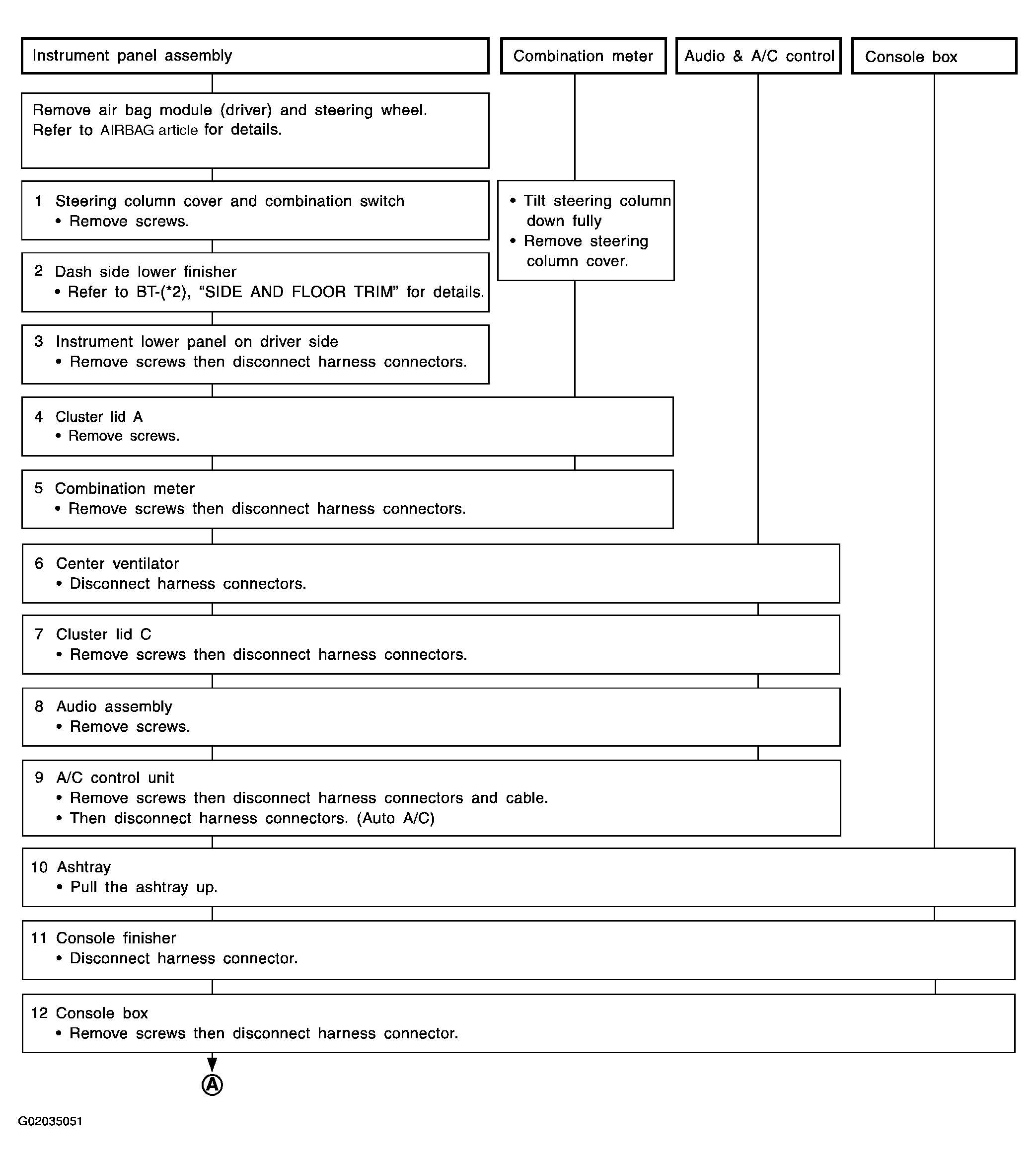

Fig 1: Instrument Panel Assembly Replacement Procedure (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

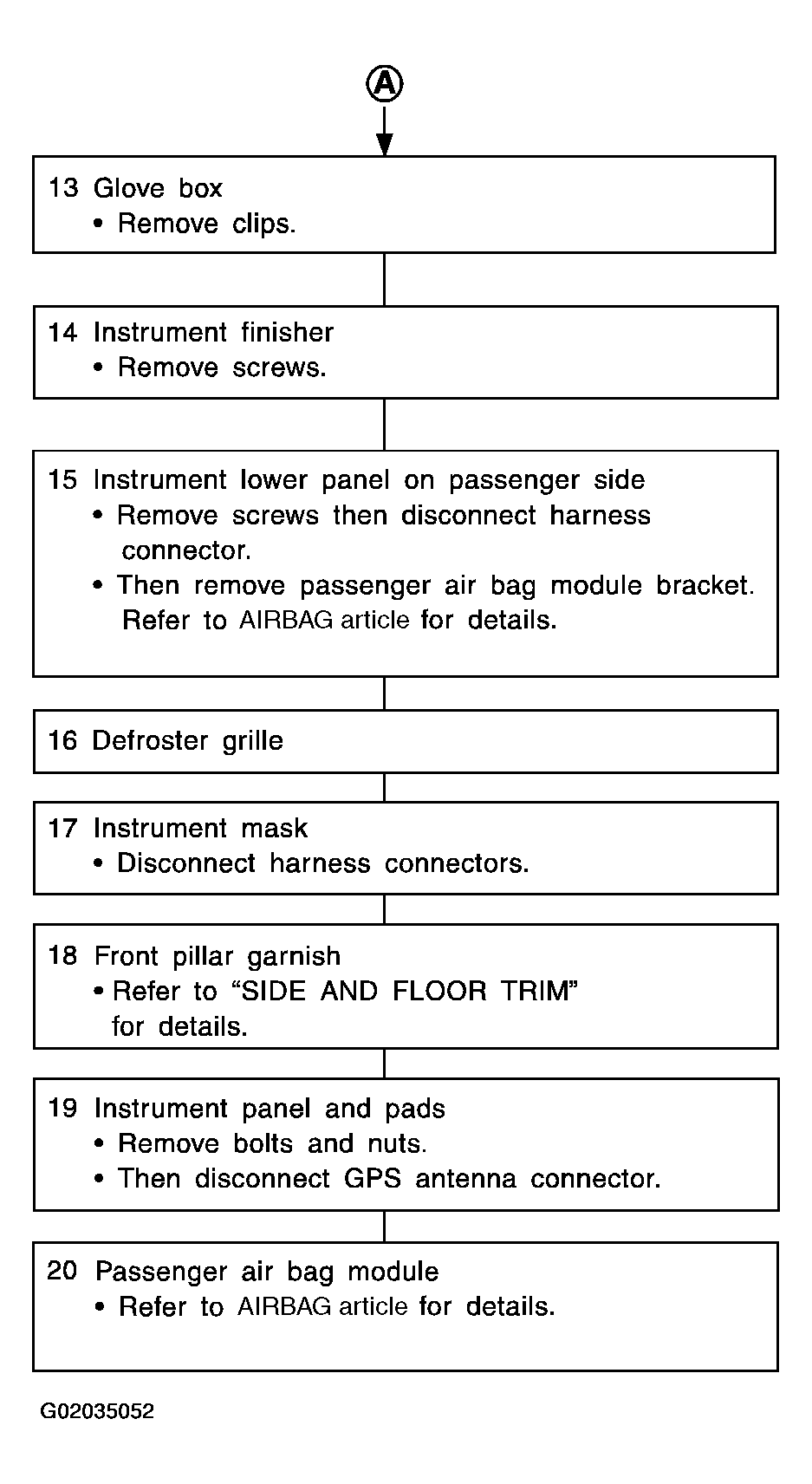

Fig 2: Instrument Panel Assembly Replacement Procedure (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

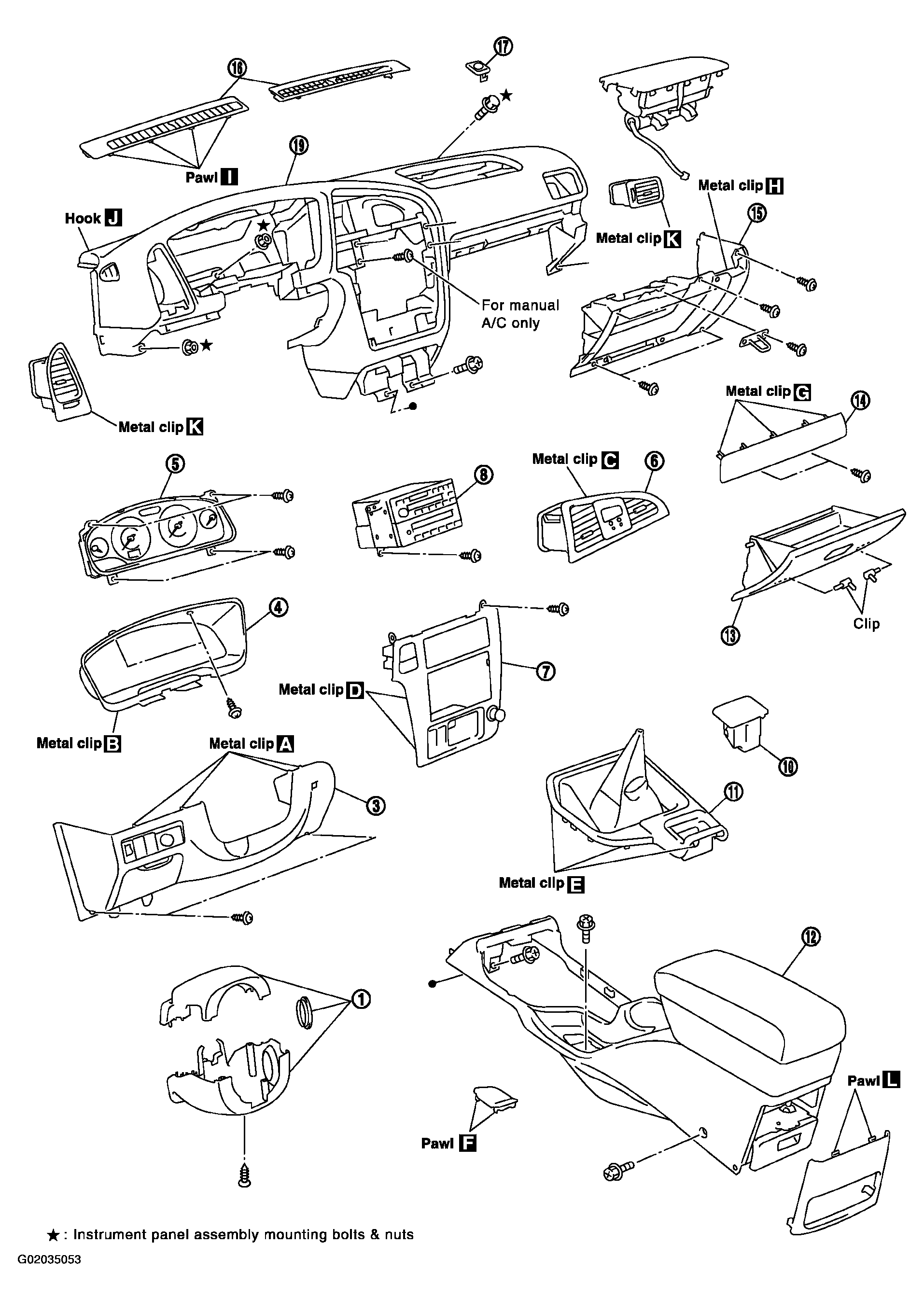

Fig 3: Exploded View Of Instrument Panel Assembly (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

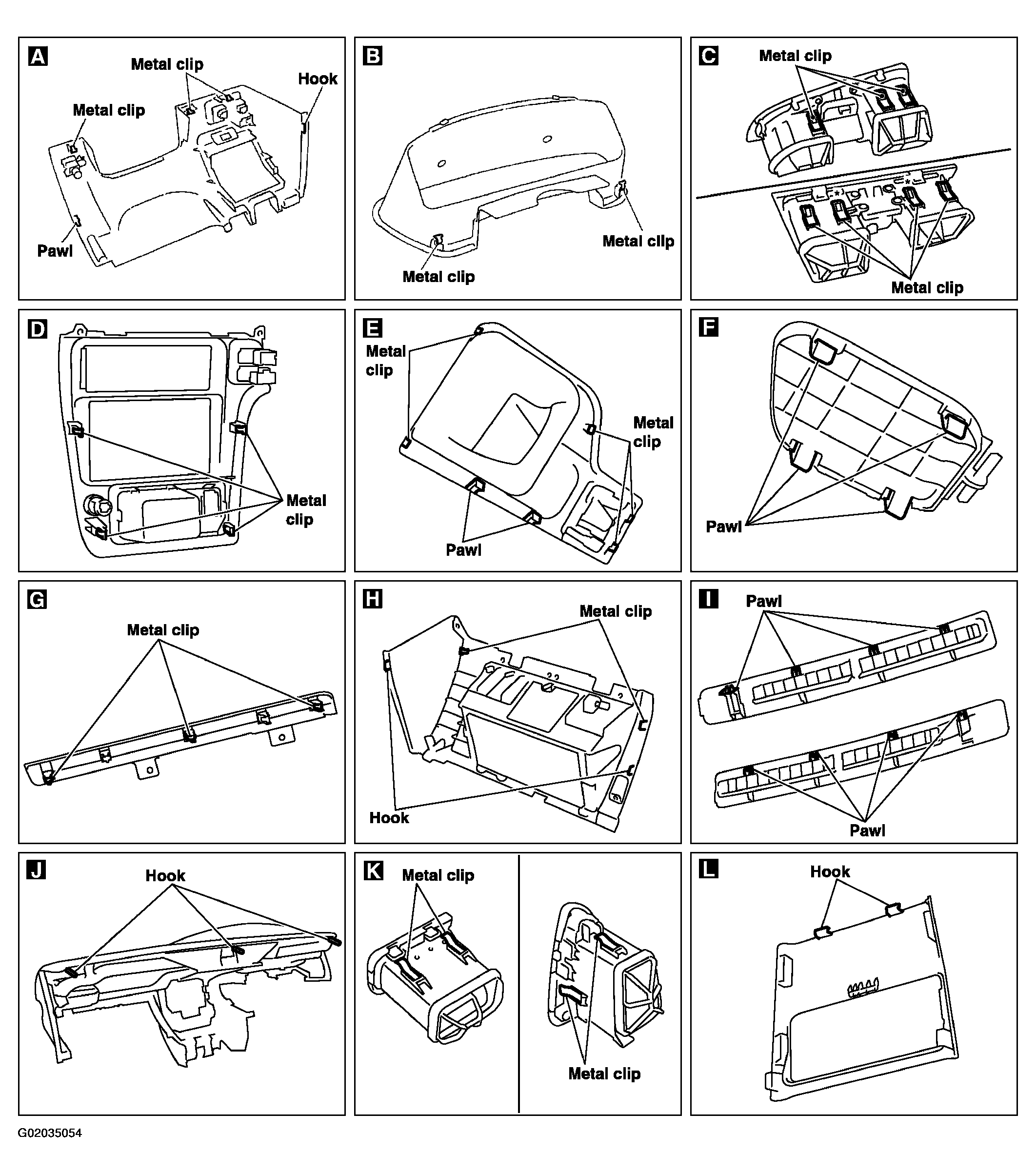

Fig 4: Exploded View Of Instrument Panel Assembly (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
