Section 837 (Vehicle Security (Theft Warning) System): Schematic

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

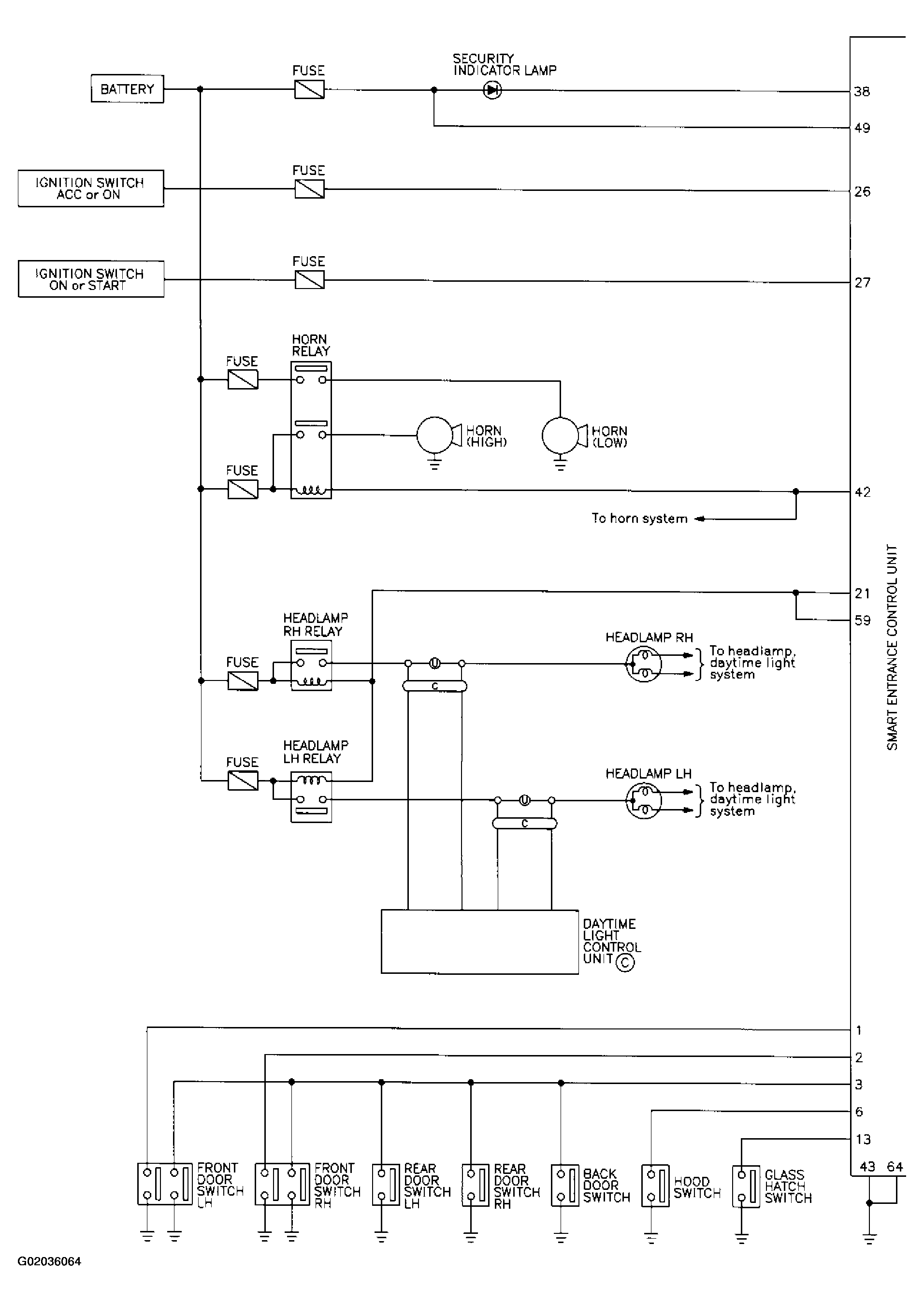

Fig 1: Schematic (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

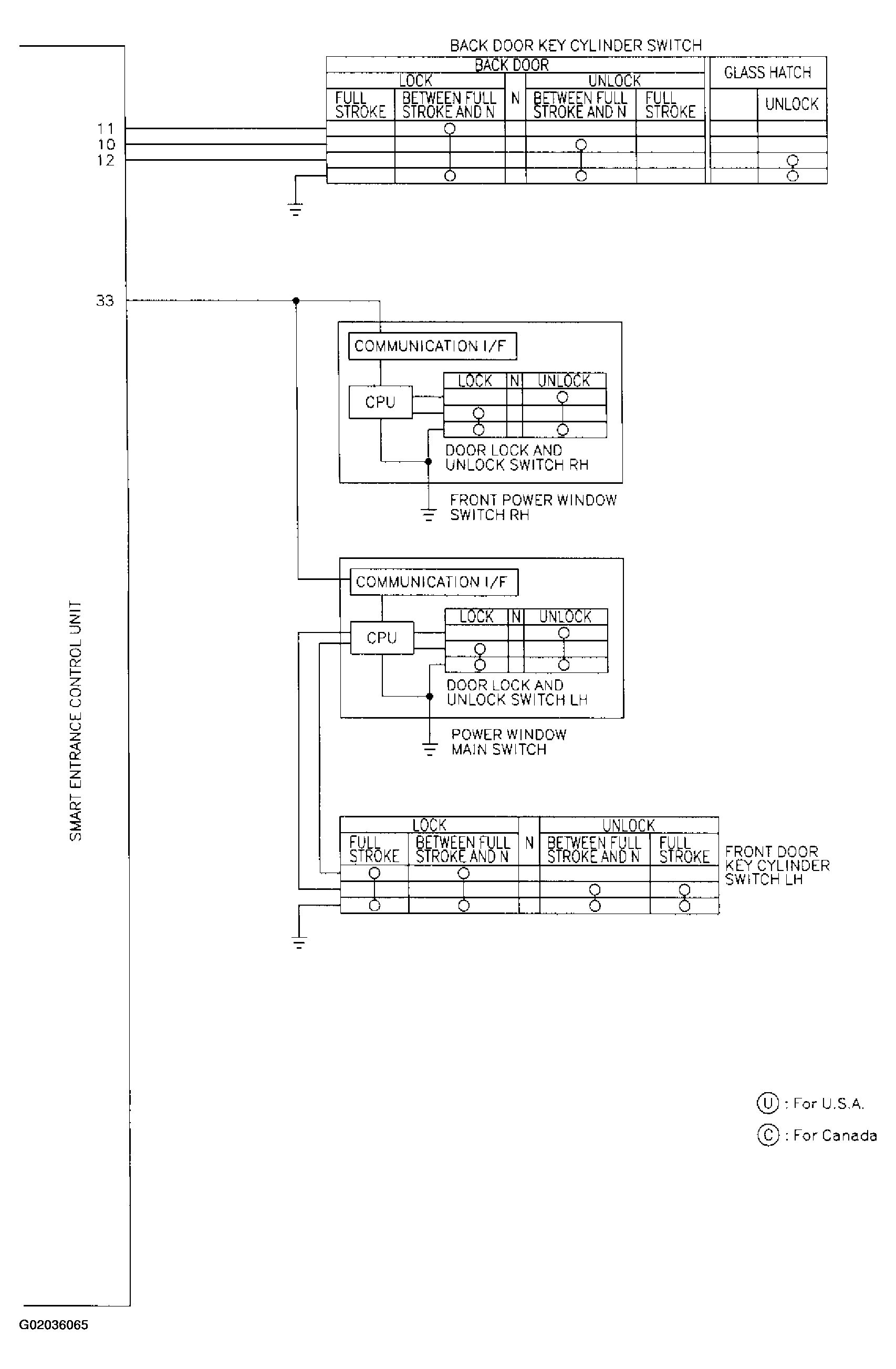

Fig 2: Schematic (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
